EL20xx, EL2124 57Version: 5.2
2.6.3 EL2088 - LEDs and connection

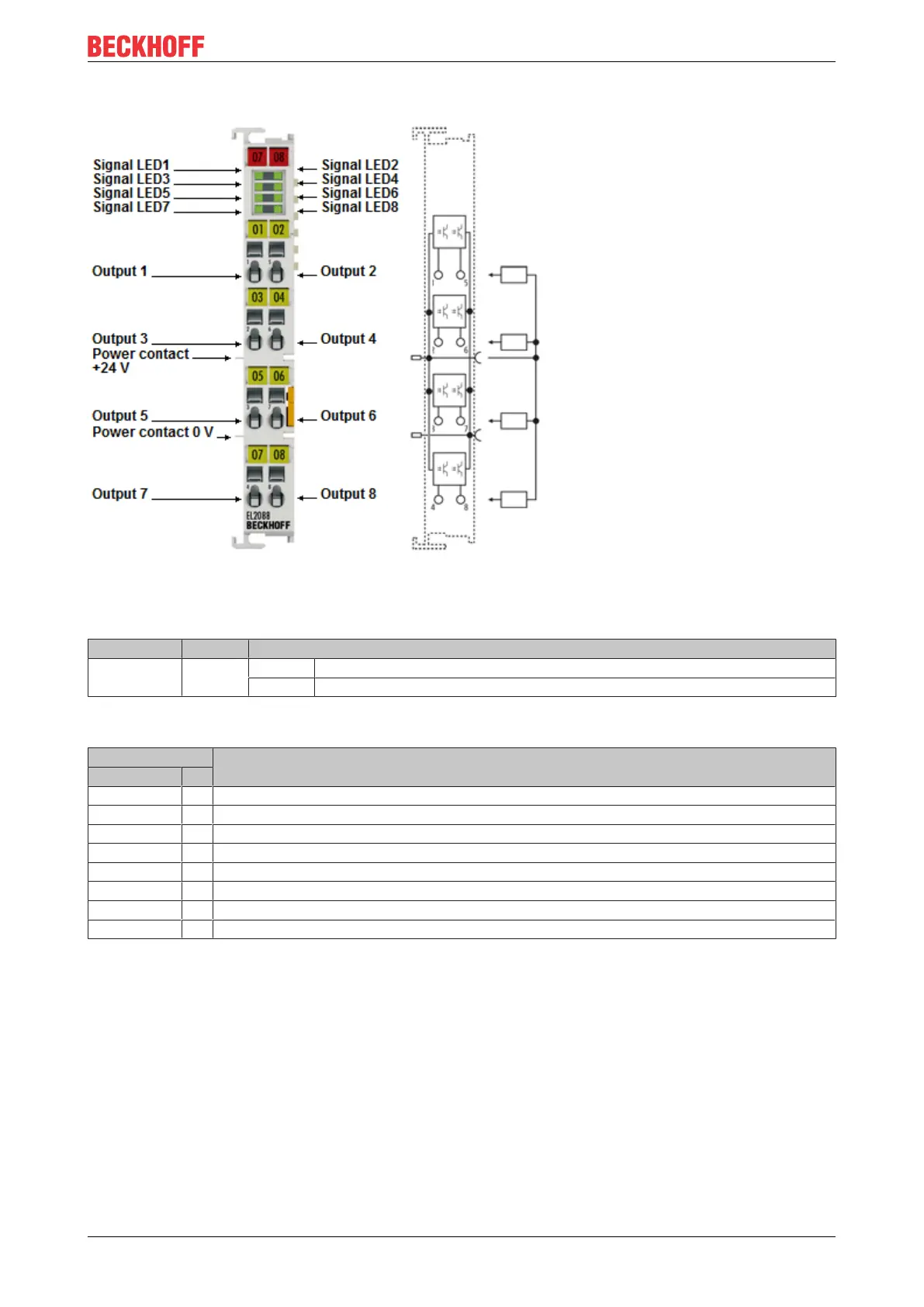

Fig.39: EL2088
EL2088 - LEDs
LED Color Meaning
OUTPUT 1- 8 green off No output signal is present at the respective output
on A 0V output signal is present at the respective output
EL2088 - Connection
Terminal point Description
Name No.
Output 1 1 Output 1 (0V)
Output 3 2 Output 3 (0V)
Output 5 3 Output 5 (0V)
Output7 4 Output 7 (0V)
Output 2 5 Output 2 (0V)
Output 4 6 Output 4 (0V)
Output 6 7 Output 6 (0V)
Output 8 8 Output 8 (0V)
