2.6 EL2084, EL2088 - Introduction

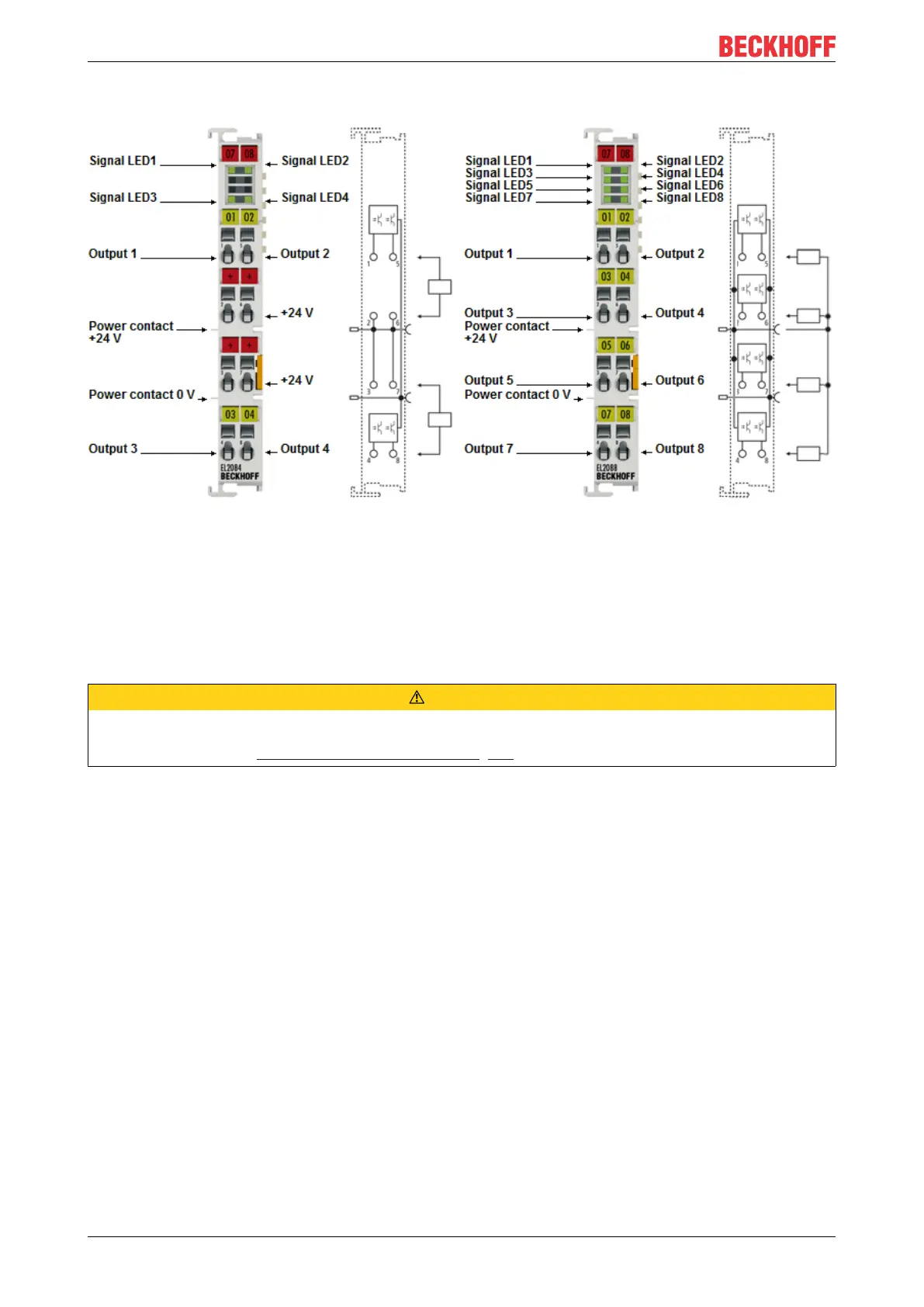

Fig.37: EL2084, EL2088
Four- and eight-channel digital output terminals, 24 V
DC
, 0.5A (EL2084, EL2088)
The EL2084 and EL2088 digital output terminals connect the binary control signals from the automation unit
on to the actuators at the process level with electrical isolation.
The EtherCAT Terminals have 0V (ground) switching outputs and generate load currents with outputs that
are resistant to overload and short-circuit. They include four or eight channels, whose signal state is
indicated by LEDs.
CAUTION
Watchdog settings
Please refer to section "Notes for setting the watchdog [}62]".
