Beckhoff EL2124 User Manual

Product overview, digital output terminals
EL20xx, EL2124 53Version: 5.2
2.5.2 EL2042 - LEDs and connection

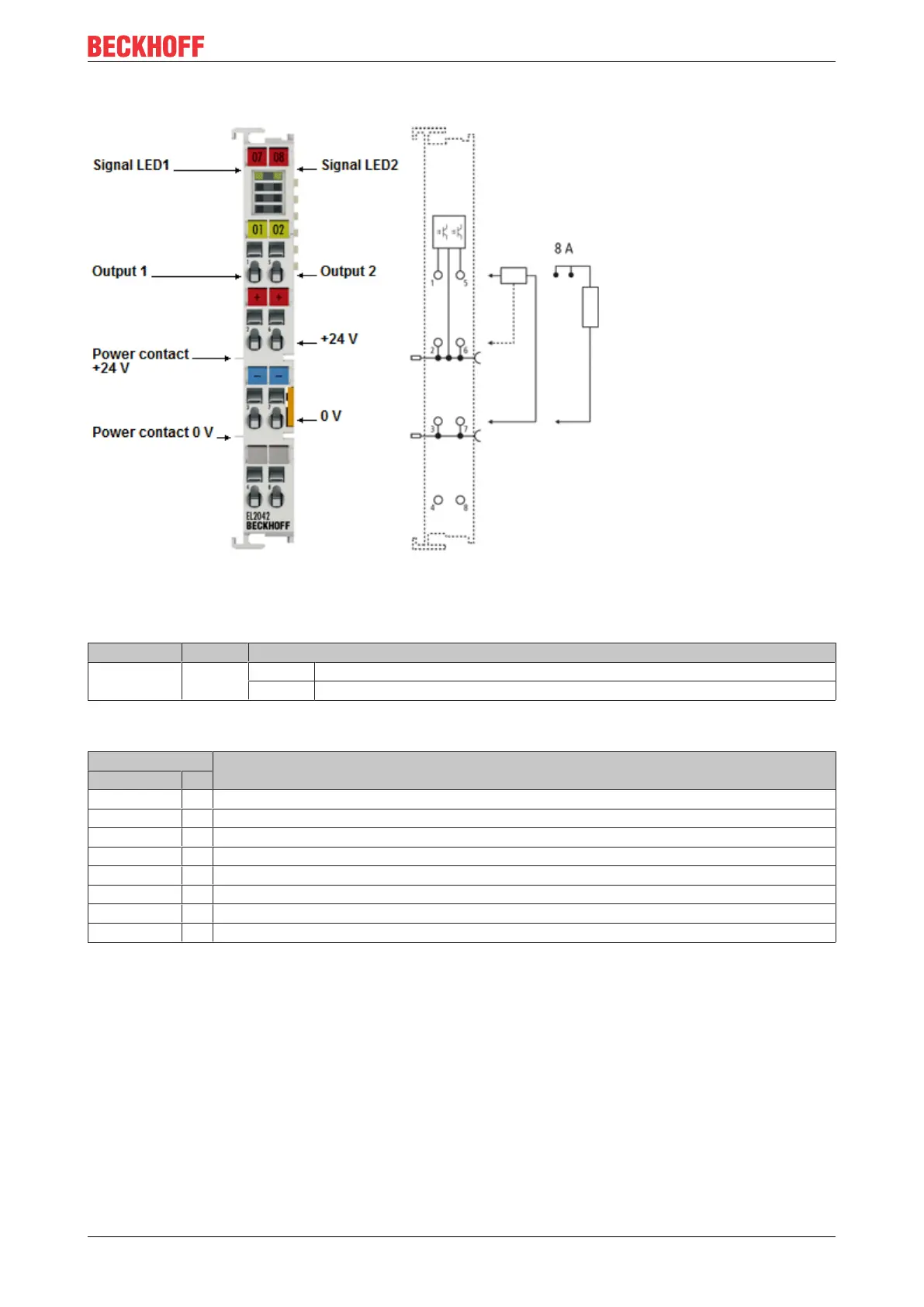

Fig.36: EL2042
EL2042 - LEDs
LED Color Meaning
OUTPUT 1
OUTPUT 2
green off No output signal is present.
on A 24V
DC
output signal is present.
EL2042 - Connection
Terminal point Description
Name No.
Output 1 1 Output 1
+24 V 2 +24V (internally connected to terminal point6 and positive power contact)
0 V 3 Ground for output1 (internally connected to terminal point7 and negative power contact)
- 4 -
Output 2 5 Output 2
+24 V 6 +24V (internally connected to terminal point2 and positive power contact)
0V 7 Ground for output2 (internally connected to terminal point3 and negative power contact)
- 8 -
