Handling
Cleaning
The XTS modules are sealed according to protection class IP65. They are not protected against aggressive
substances. Clean the modules regularly to protect them against rust and corrosion. Use only Isopropanol.
WARNING
Damage to motor modules
If damage to the motor modules has occurred, please contact Beckhoff Automation GmbH
& Co. KG immediately!
WARNING
Damage to the guide rollers
Make sure that the rails are free from dirt and metallic particles. A dirty rail can significantly
reduce the service life of the guide rollers.
4.4.1 Replacement of the guide rollers
Installation manual

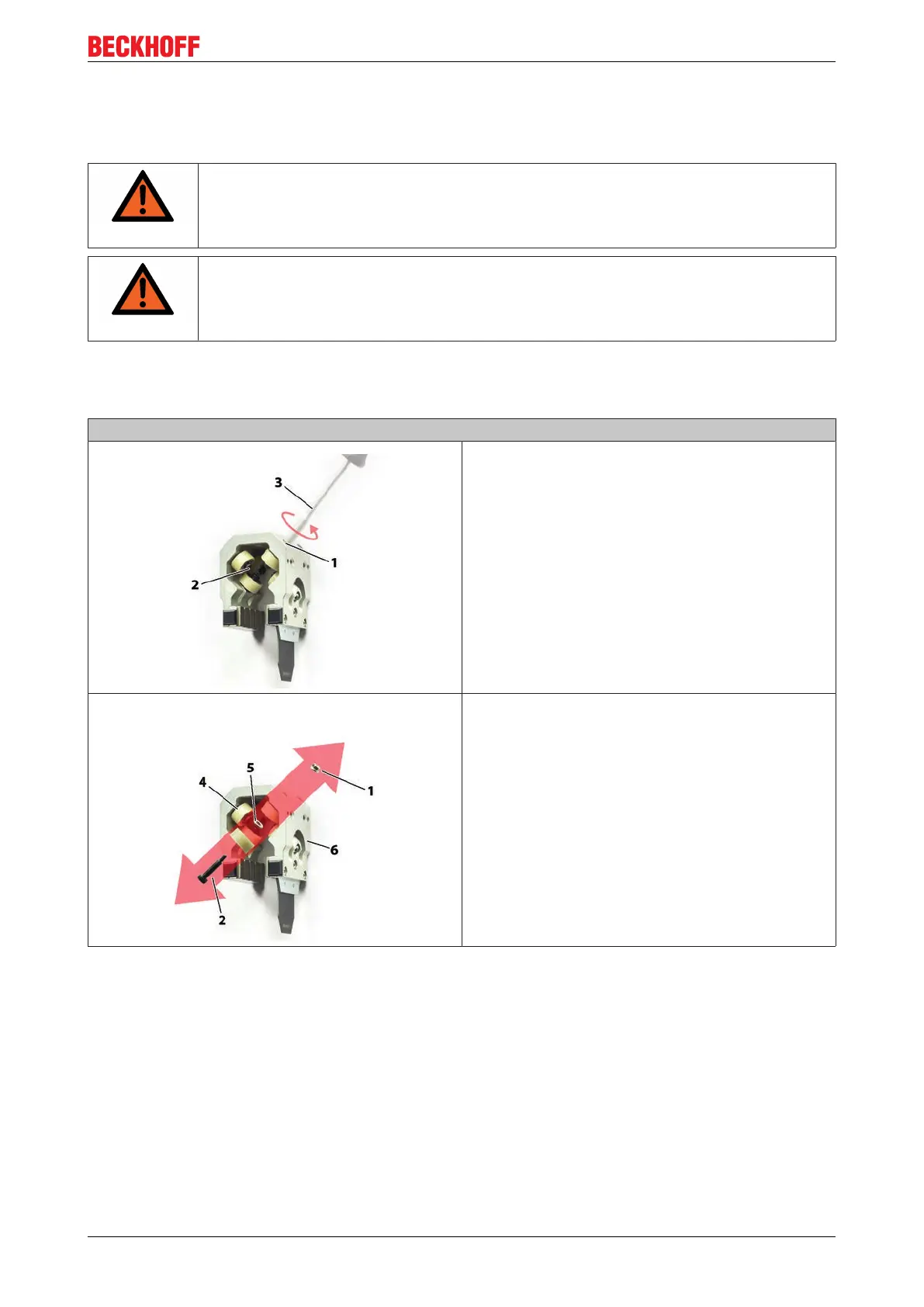

Loosen the roller axel nut
• Use a 1.5mm Allen Key hold to hold the screw
in place. (2)
• Loosen and remove the nut using a 5.5mm
socket wrench/spanner (1)
The Screw (2) must be held in place to prevent it
from turning with the Socket.
Removal of the components
• Pull out the screw that is the shaft of the roller
(2) and take with it
• the Roller (4)
• the washer (5)
• the nut (1)
Caution! When removing the screw (2) be sure to
pull it straight out from the hole in the mover body (6)
in order to prevent damage to the threads. Do not tilt
it.
