Handling

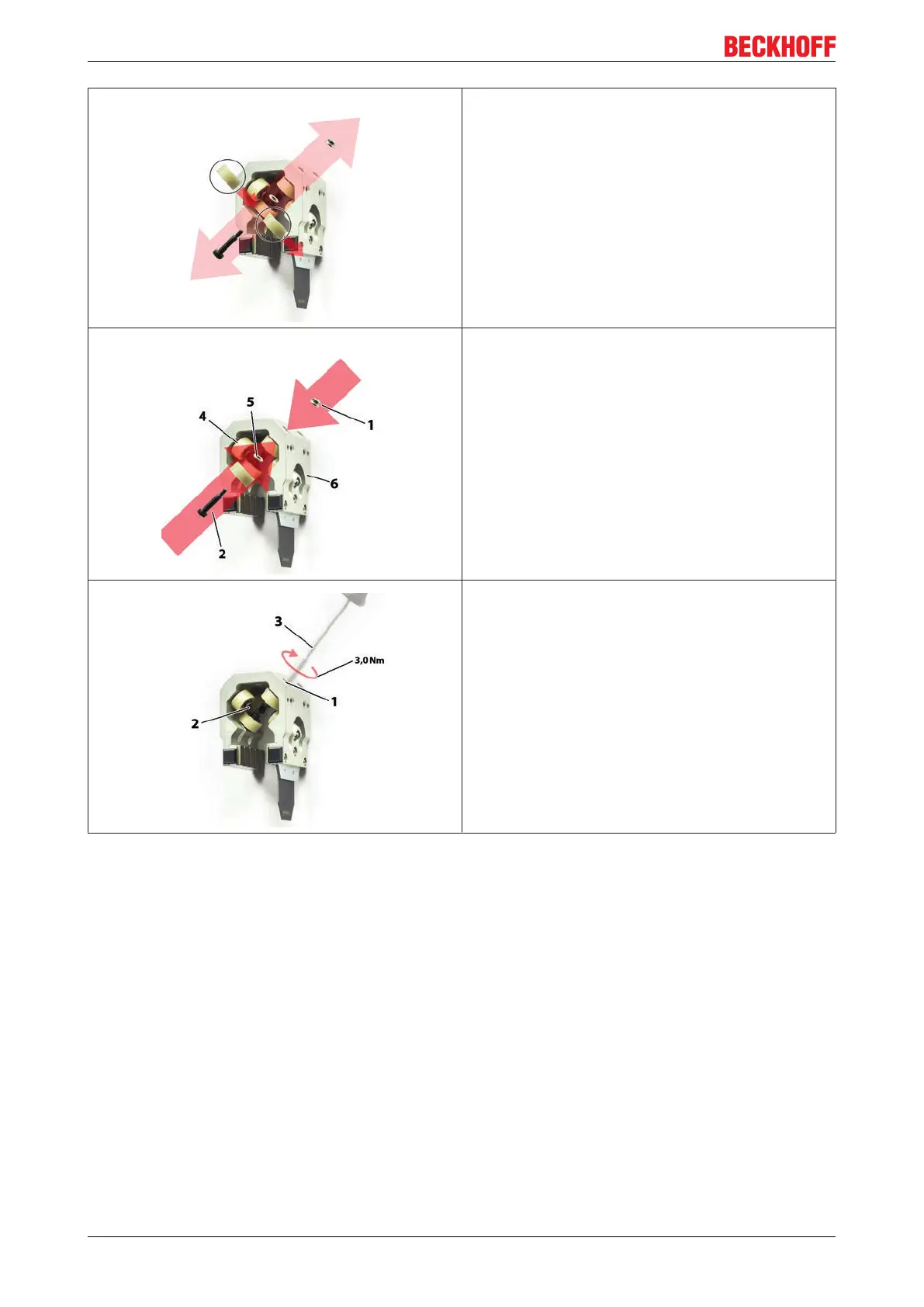

Exchange the Roller
After all the components have been removed, from
the mover body, the roller can be replaced.
Reassemble the Components
• Insert the screw (2) through
• the Roller (4) then
• the washer (5)
• Push the screw through the hole of the mover
body and fix it in place with the nut (6)
Caution! To prevent damage to the threads, take
care to insert the screw (2) straight into the mover
body (6). Do not tilt the screw.
Tighten the Roller axel nut.
• Use a 1.5mm Allen key hold the screw (2) in
place.
• With a 5.5mm Socket tighten the nut (1) to a
torque of 2.4Nm
The screw (2) must be held in place to prevent it from
turning with the nut.
4.5 Disposal
In accordance with the WEEE 2002/96/EC Directives we take old devices and accessories back for
professional disposal, provided the transport costs are taken over by the sender. Send the devices with the
note “For disposal” to:
Beckhoff Automation GmbH & Co. KG
Service-Center
Stahlstraße 31
33415 Verl
eXtended Transport System Start-Up14
Version: 1.2
