Installation
7.4 The positioning system
Before the movers are set in motion at the new XTS, the offset levels of the encoder sensors have to be
calibrated. In ready-made starter kits the system sensors are already calibrated, and the sensor values are
stored in a file. New systems or systems, in which motor modules were replaced or regrouped, have to be
recalibrated. The calibration is straightforward and can be performed without damage to the system.
7.4.1 Zero point of the encoder system
The zero point of the encoder system is at the
module edge (at the side of the cable joint) of the first
feed module.

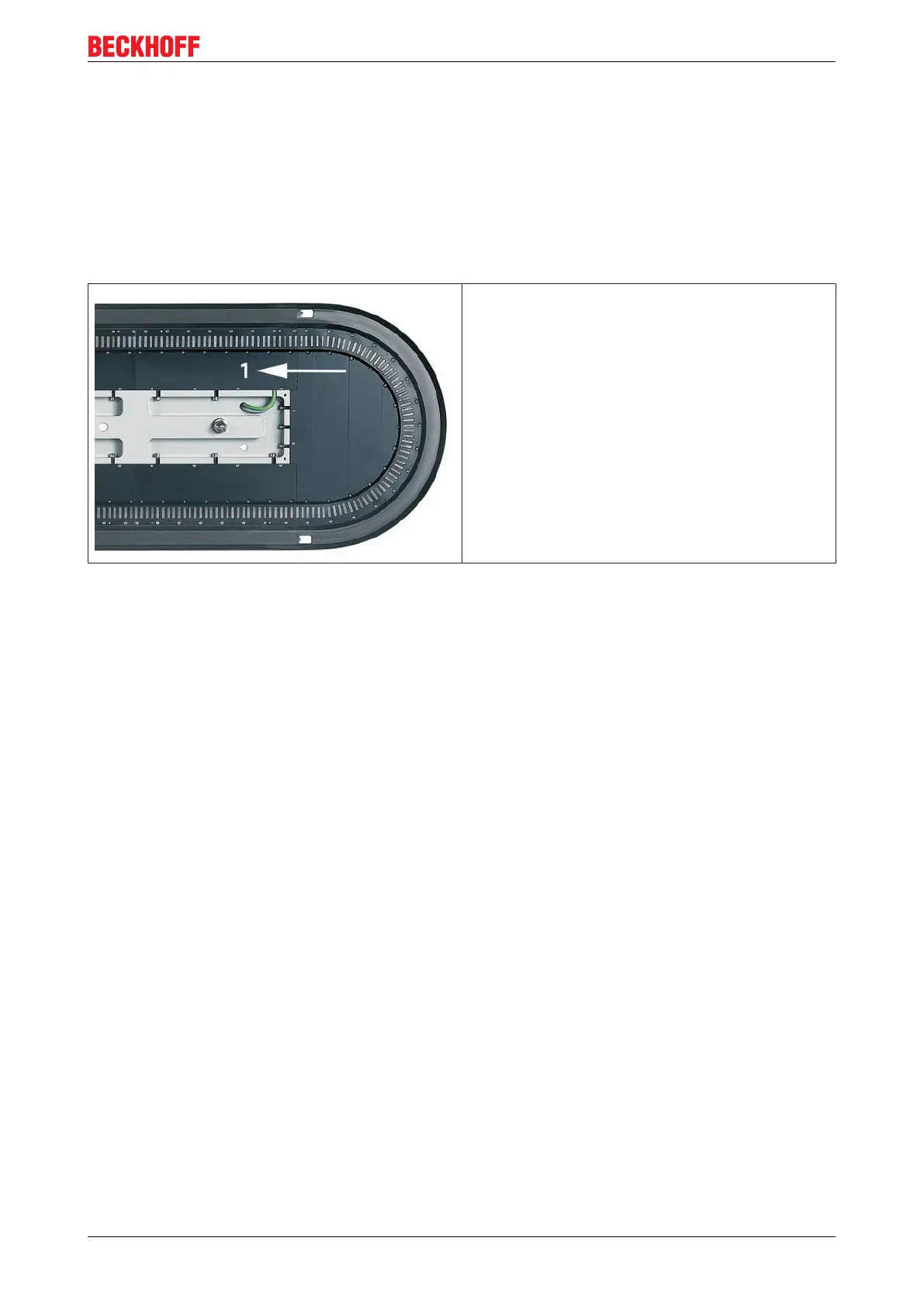

The arrow in the image (item 1) figure shows the
positive count direction of the system.
eXtended Transport System Start-Up 33
Version: 1.2
