Installation

7.2 Overview of the tightening torques

Screw sizes and tightening torques

Motor modules

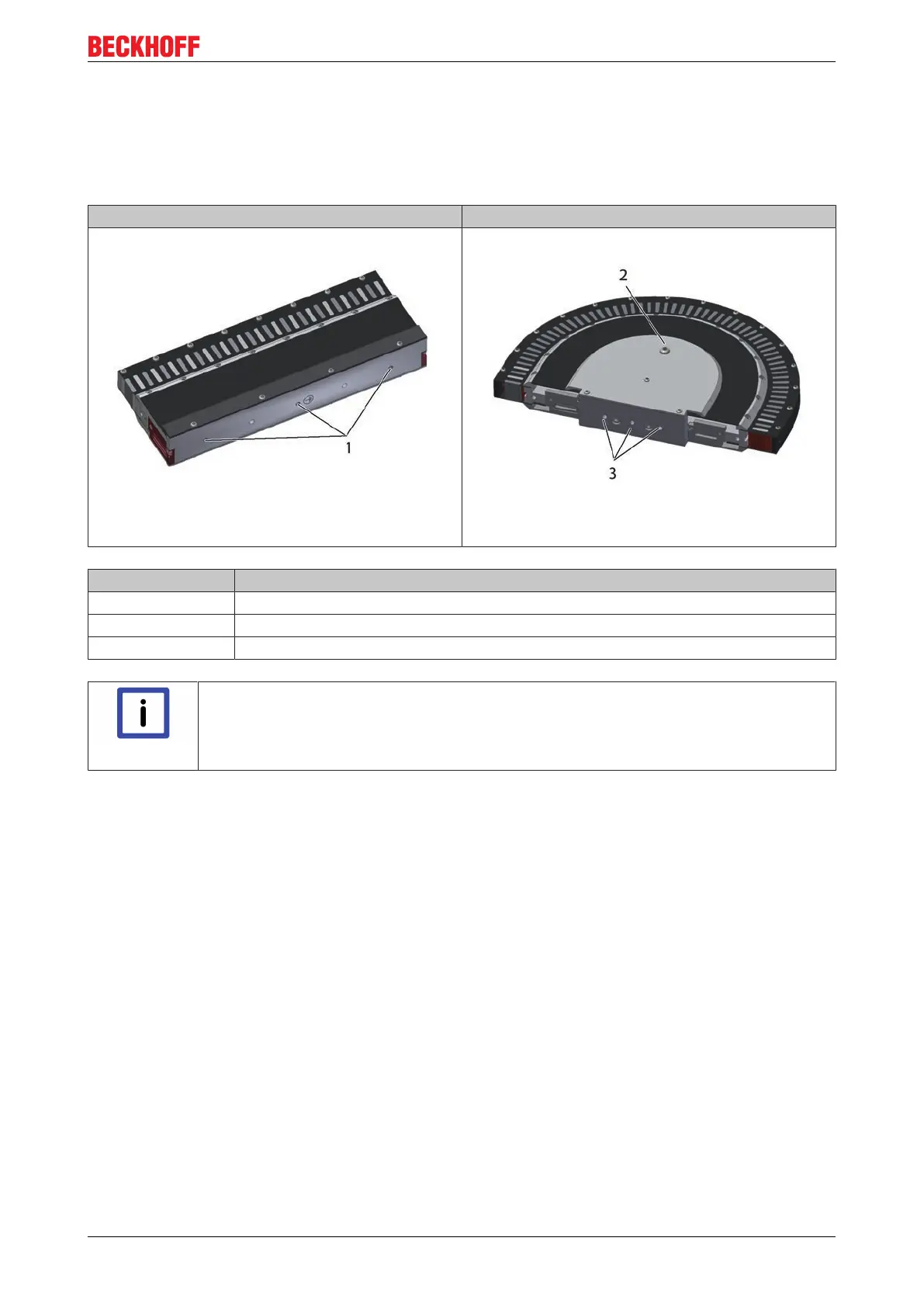

Straight motor module Curve motor module 180° (Clothoide)

Position number Description

1 Screw: M5 x 20 DIN EN ISO 4762-A2 tightening torque 6Nm

2 Screw: M6 x 12 ISO 7380-A2 Tightening Torque 8Nm

3 Screw: M5x30 DIN EN ISO 4762-A2 Tightening Torque 6Nm

Note

Screw Tightening Torque

Please note the tightening torque values given are those recommended by Beckhoff Auto-

mation GmbH & Co. KG. Use of other tightening torques can result in damage to the com-

ponents.

eXtended Transport System Start-Up 29

Version: 1.2
