E85 Information/Communication
- 103 -
- Video module
Source changeover: The video module receives audio and RGB
signals from the aerials. The video module passes on these
source data as follows:
- The audio signals are transferred via the AF lines to the CID
control panel (radio).
- The picture data are transferred to the central information
display (via the RGB outputs).
Installation location
The video module is mounted on the partition in the luggage
compartment.

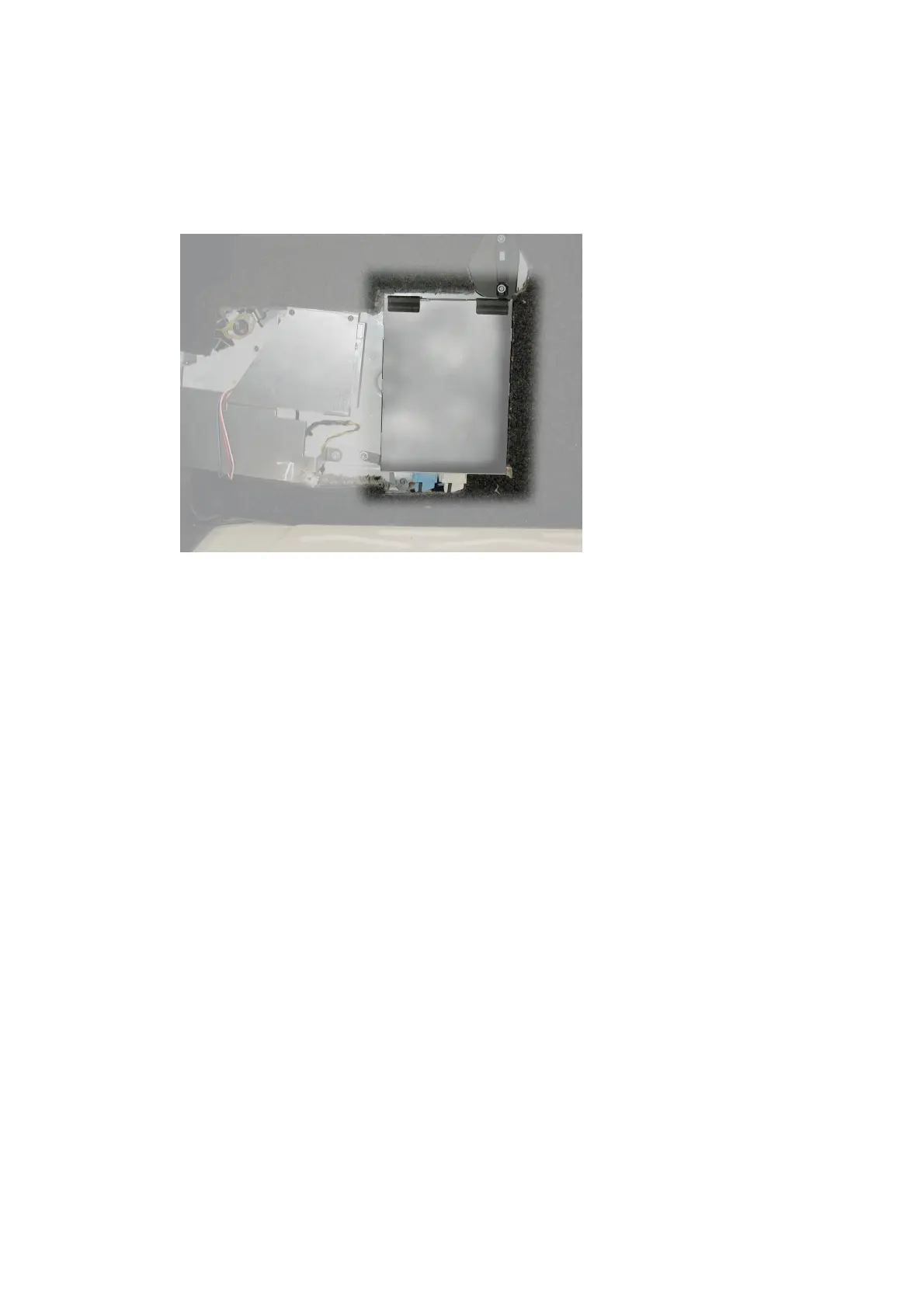

Fig. 68: E85 Installation location of video module
The video module
contains the TV
receiver with video
text function as well
as the source
changeover for
audio and RGB
signals. The video
module communi-
cates via the K-bus
with the navigation
computer, CID and
the CID control
panel.
