E85 Information/Communication
- 106 -
- Aerial diversity
Aerial diversity for TV is only designed for operation with the
vehicle stationary.
2 lines lead from the aerial diversity module to the video module.
During TV reception, both signals are combined and used in the
video module. The video module switches over to the strongest
aerial signal depending on the reception quality.
Installation location
The aerial diversity module is located at the rear left in the wheel
arch.

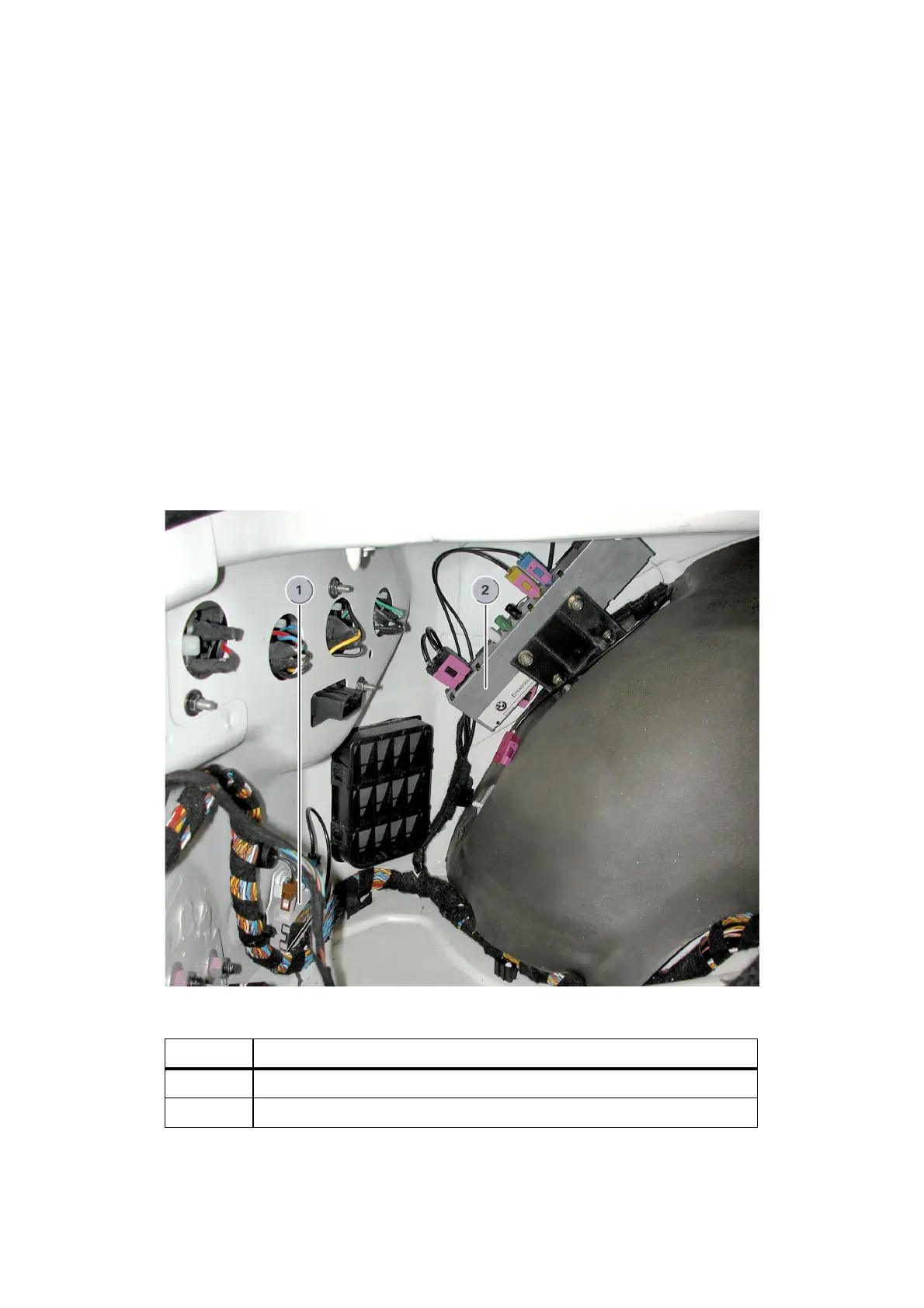

Fig. 71: E85 Installation location of aerial amplifier and aerial diversity
Index Explanation
1 FM amplifier
2 Aerial diversity
KT-10119
