E85 Information/Communication
- 34 -
Components of Stereo audio system
The Stereo audio system consists of following components:
- Radio-CD
- Front left and right low-range speakers (woofers)
- Front left and right high-range speakers (tweeters)
- Rear left and right mid-range speakers
- Low-range speakers (woofers)
The woofers have a diameter of 160 mm and a paper cone. The
maximum load capacity is 25 W. The woofer covers a frequency
range from 50 Hz to 500 Hz.
Installation location
The front woofers (low-range speakers) are mounted at the
bottom in the A-pillars on the left and right.
The woofers are arranged transversely with respect to forward
direction.
The resonance volume is approx.10 l and utilizes a part of the
sill area.

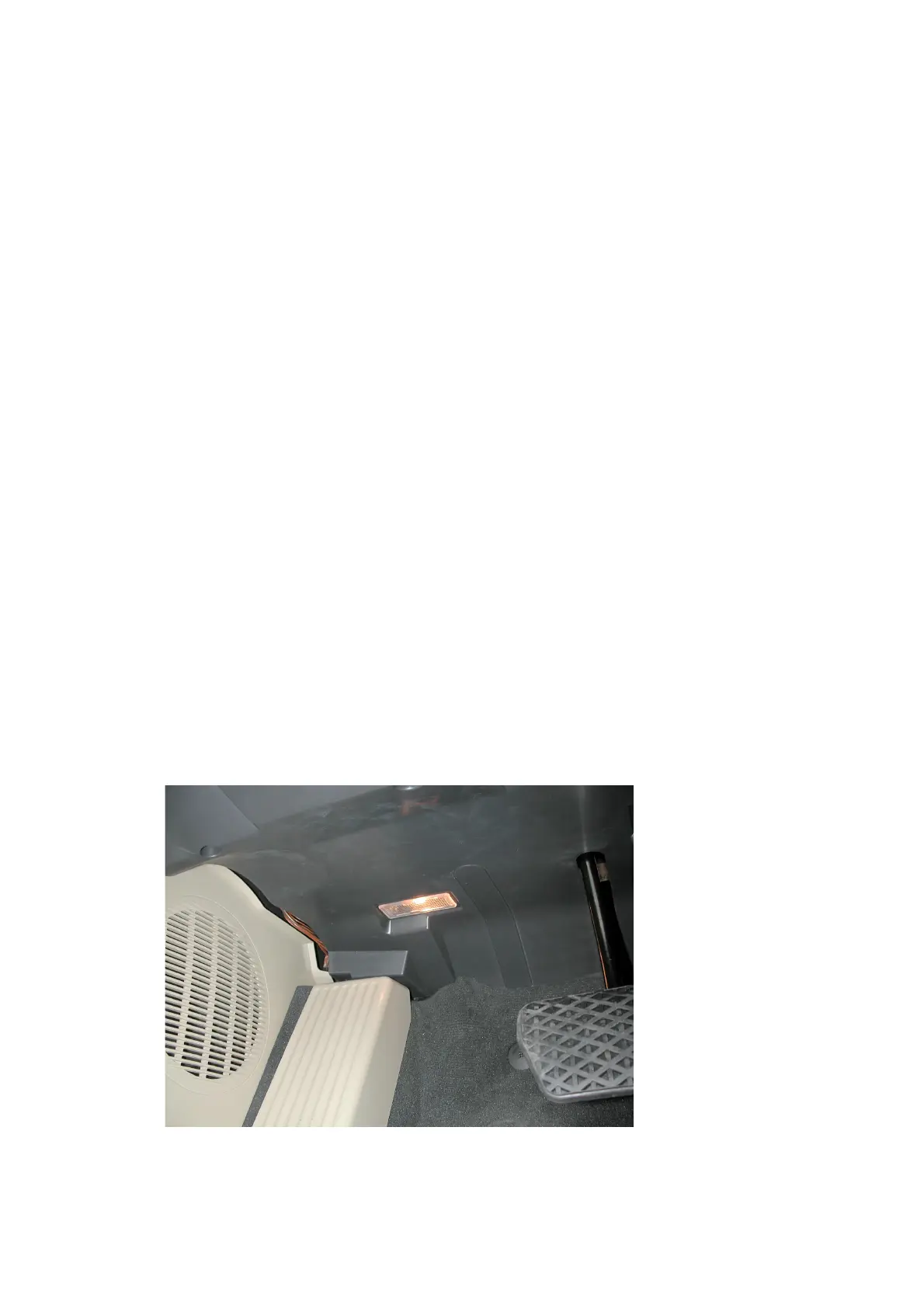

Fig. 26: E85 Installation location of woofers (low-range speakers)
KT-10117
