E85 Information/Communication
- 45 -
Installation location of Top-HiFi amplifier
- Front low-range speaker (woofer)
The woofer has a diameter of 160 mm and a paper cone. The
maximum load capacity is 50 W.
The woofers (low-range speakers) cover a frequency range from
50 Hz to 500 Hz.
Installation location
The front woofers (low-range speakers) are mounted at the
bottom in the A-pillars on the left and right.
- High-range speakers (tweeters)
The high-range speakers (tweeters) and their installation
location are identical to those in the Stereo audio system.

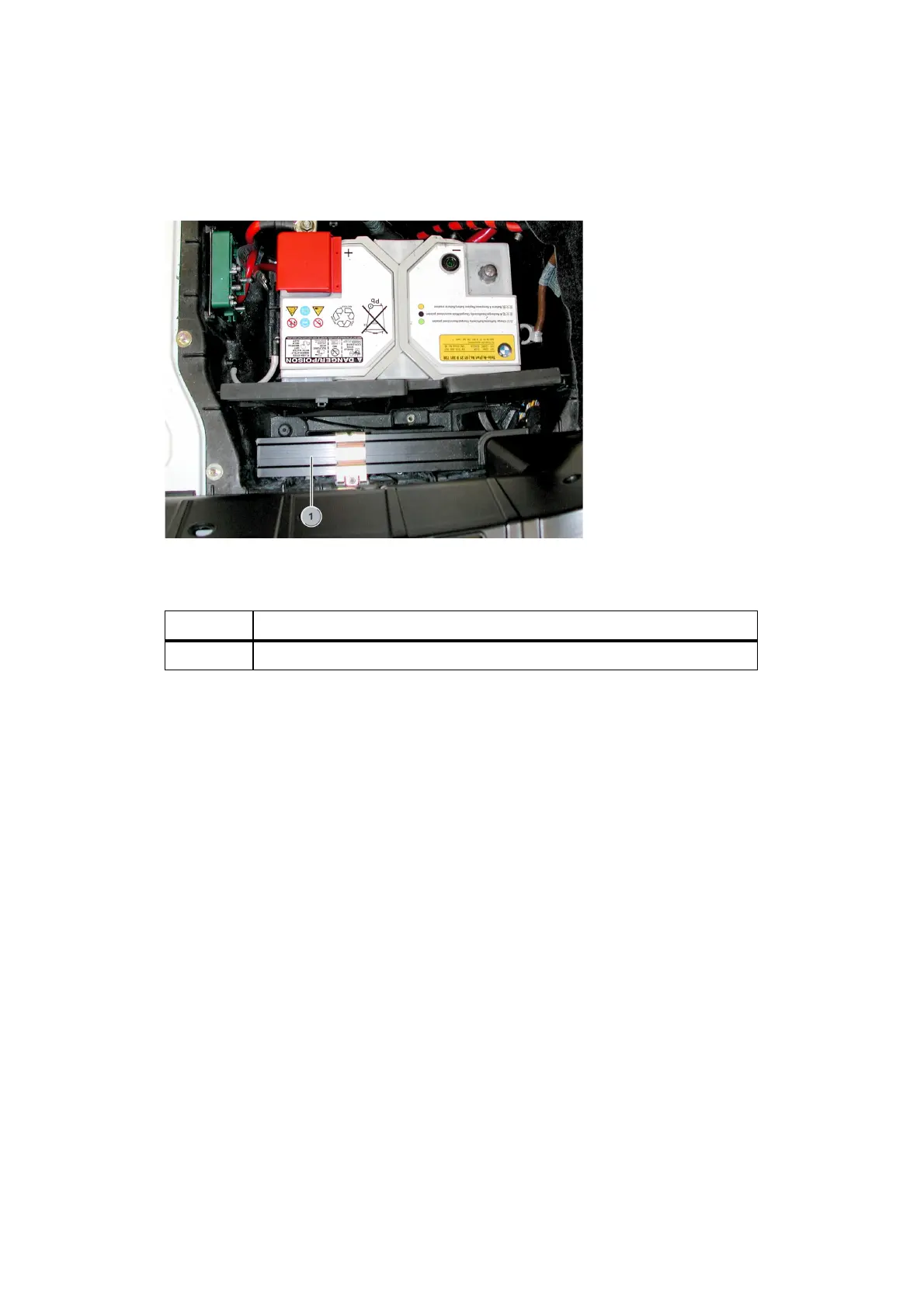

Fig. 36: Top-HiFi amplifier
The Top-HiFi
amplifier is installed
in the luggage
compartment pan
next to the vehicle
battery.
Index Explanation
1 Top-HiFi amplifier
KT-10118
