E85 Information/Communication
- 66 -
- GSM aerial
The GSM aerial is located together with the AM/FM aerials in the
rod aerial. The GSM aerial is a dual-band aerial and it is geared
to the ranges 900/1800 MHz in the EU version.
Installation location
The GSM aerial is located on the side panel at the rear left.
Design

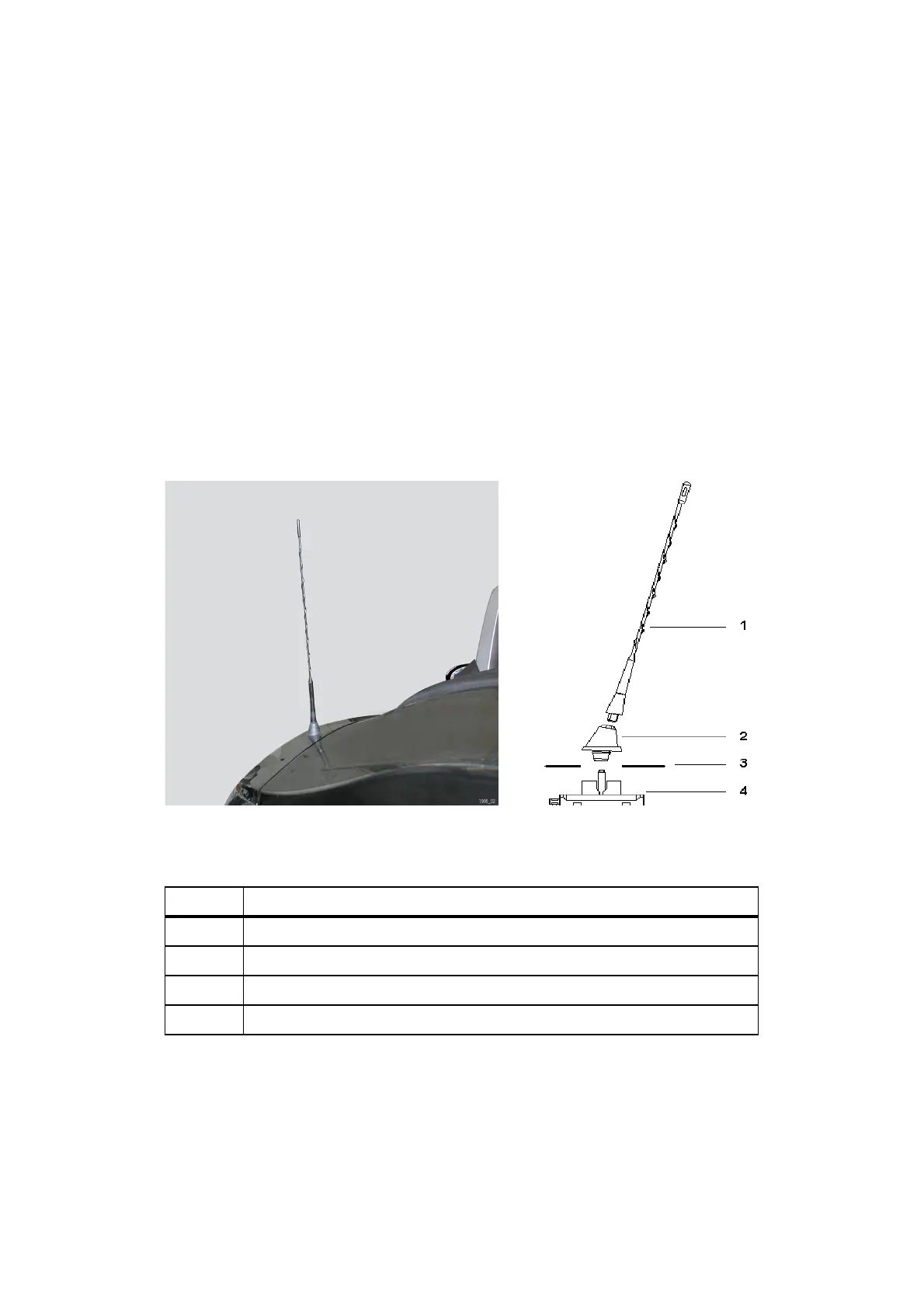

The structure of the GSM aerial is shown in the following
drawing.
Fig. 46: E85 GSM aerial
Index Explanation
1 Aerial rod
2 Aerial head
3 Body panel
4 Aerial amplifier (radio function)
KT-10641
KT-10004
