- High-range speakers (tweeters)
The tweeter has a diameter of 26 mm and a fabric cap or
calotte. The maximum load capacity is 25 W.
The tweeter (high-range speaker) covers a frequency range from
4000 Hz to 20,000 Hz.
The tweeter is connected to the woofer. The frequency range of
the high-range speaker is set by means of a capacitor.
Installation location
The tweeter (high-range speaker) is located in a panel mounted
in the mirror triangle.
The output direction of the tweeter is directed at the head area
of the occupant opposite.
The tweeter (high-range speaker) is based on a sealed design.

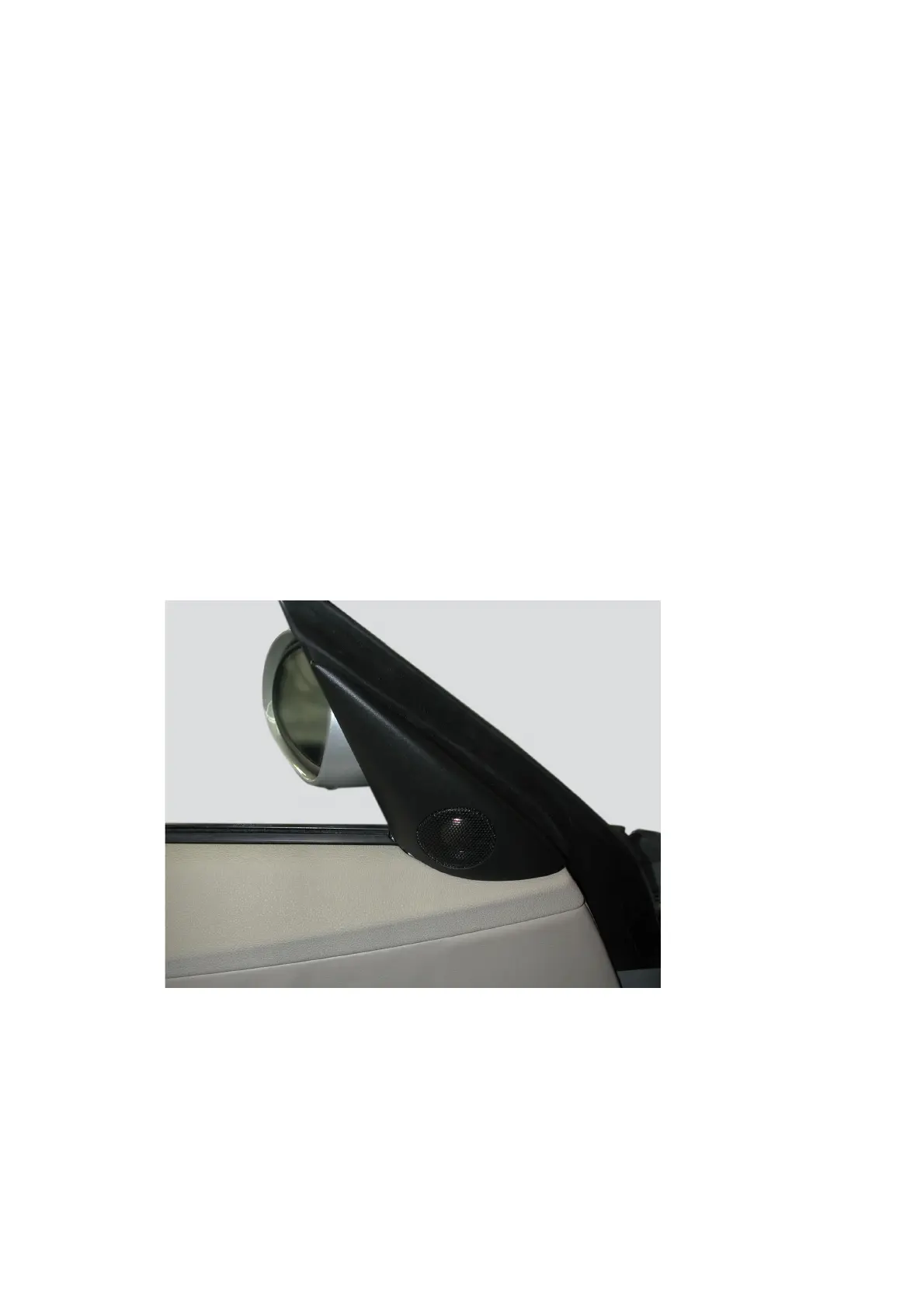

Fig. 27: E85 Tweeter (high-range speaker) in mirror triangle
KT-10049
