E85 Information/Communication
- 78 -

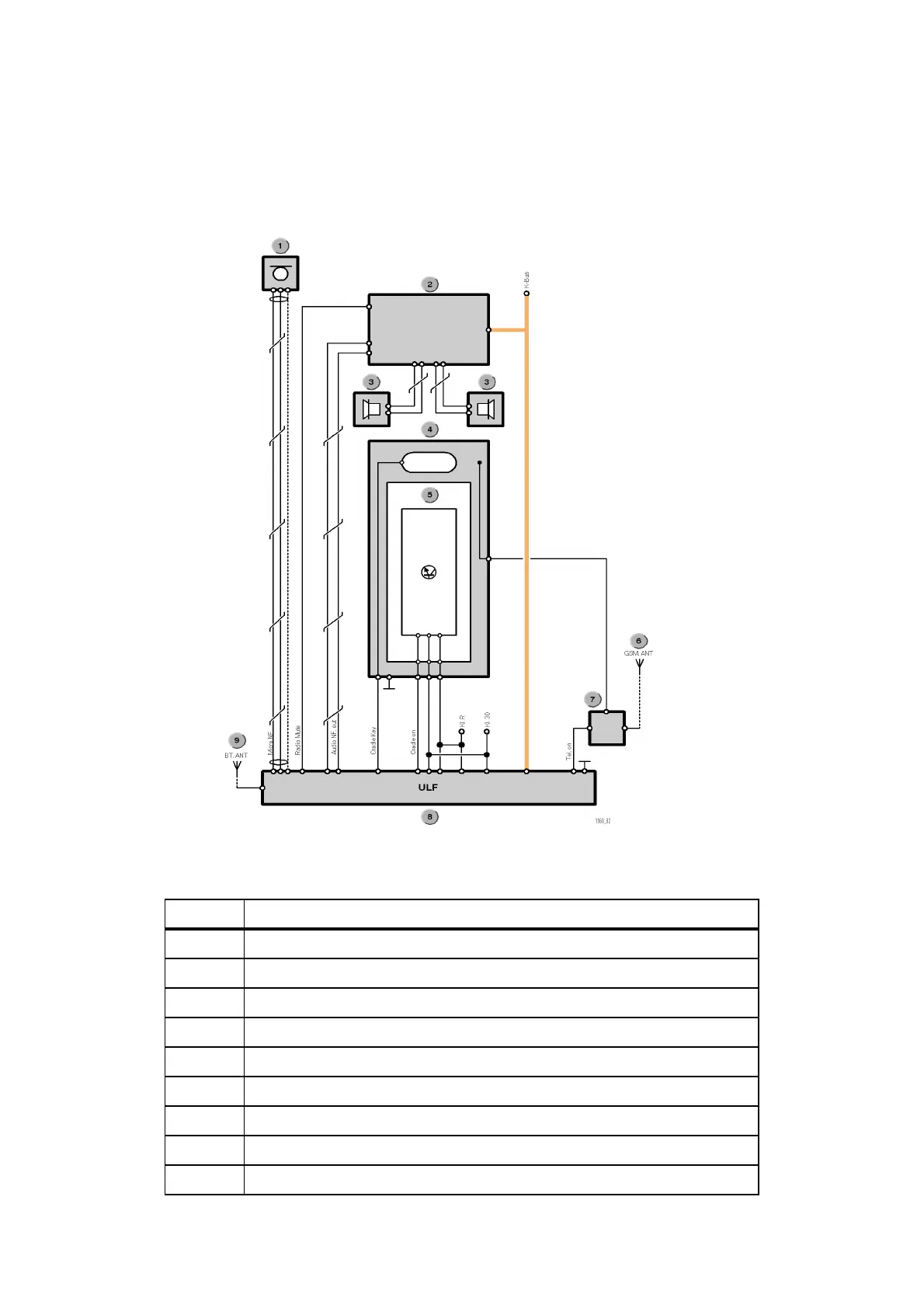

System diagram
Fig
. 53: Sy
stem cir
cuit diagram for univ
ersal charging and hands-fr
ee unit
Index
Explanation
1
Hands-free micr
ophone
2
Radio
3
Speaker
4
Base plate
5
Snap-in adapter
6
GSM aerial
7
Compensator (not standar
d equipment)
8
Control unit for univ
ersal charging and hands-free unit
9
Bluetooth aerial
KT-10592
83
85
Table of Contents
Table of Contents
3
Chap 4
4
Information / Communication
7
Introduction
7
New Features in the E85
8
Settings Selection
8
Radio and CD Changer
12
Introduction
12
New Features of the System
12
System Overview
13
System Diagram
14
Components
15
Chap
15
BMW Radio-CD
16
BMW Business Radio-CD
17
Multi-Information Radio mir
18
BMW Central Information Display Radio CID Radio
19
CD Changer
25
BMW Aerial Systems
25
Operation
31
Service Mode for Radios
31
Notes for Service
33
FM Aerial
33
Diagnosis
34
Coding
34
Car & Key Memory
34
Audio Systems
35
Introduction
35
Systems
35
New Features of Systems
35
System Comparison - Sound Pressure
36
System Comparison - Linearity
37
Advantages of the Systems
37
System Overview - Stereo
38
System Diagram - Stereo
39
Components of Stereo Audio System
40
Low-Range Speakers (Woofers)
40
High-Range Speakers (Tweeters)
41
MID-Range Speakers, Rear
42
Stereo Audio System
42
System Overview - Hifi
43
System Diagram - Hifi
44
Components of Hifi Audio System
45
Hifi Amplifier
45
Low-Range Speakers (Woofers)
46
High-Range Speakers (Tweeters)
46
MID-Range Speakers
46
Hifi Audio System
47
System Overview - Top-Hifi
48
System Diagram - Top-Hifi
49
Components of Top-Hifi Audio System
50
Top-Hifi Amplifier
50
Front Low-Range Speaker (Woofer)
51
High-Range Speakers (Tweeters)
51
MID-Range Speaker
52
Carver Woofers (Low-Range Speakers), Rear
53
Top-Hifi Audio System
57
Operation
59
Hifi Amplifier
59
Top-Hifi Amplifier
60
Notes for Service
63
Diagnosis
63
Coding
63
Telephone Systems E85
64
Introduction
64
Telephone Versions
64
New Features of Systems
65
Car Phone, "Professional
66
System Overview
66
System Circuit Diagram
67
Components
68
Telematic Control Unit TCU
69
Eject Box
70
Cordless Handset
71
Hands-Free Microphone
71
GSM Aerial
72
Bluetooth Aerial
73
System Functions
74
Modem Function
75
Emergency Call Functions
76
Power Management
77
Universal Charging and Hands-Free Unit, ULF
78
Introduction
78
What Is Bluetooth
79
Transmission
81
Data and Voice
82
Interception Security
82
System Overview
83
System Diagram
84
Components
85
ULF Control Unit
85
Bluetooth Mobile Phone Cradle
88
Bluetooth Mobile Phone
91
GSM Aerial and Hands-Free Unit
92
Compensator
92
Bluetooth Aerial
93
System Functions
93
Telephoning
93
Charging
97
Operation
98
Initial Operation
98
Notes and Diagnosis
104
Diagnosis
104
Coding
104
Car & Key Memory
104
Chap 8 Tv
105
Introduction
105
System Overview
106
System Diagram
107
Components
108
Central Information Display CID
108
CID Control Panel
108
Video Module
109
TV Aerials
110
Aerial Diversity
112
Navigation System
113
Introduction
113
System Advantages
113
System Overview - Navigation High
114
System Diagram - Navigation High
115
System Overview - Radio Navigation EU
117
System Diagram - Radio Navigation EU
118
Components
119
Central Information Display
120
CID Control Panel
120
Navigation Computer DVD
121
GPS Aerial
122
Wheel Speed Sensor
122
Reversing Light Switch
122
Video Module
123
Multi-Information Radio mir
123
System Functions
124
Introduction
124
Additional Destination Inputs
124
More Accurate Calculation of Arrival Time
124
Improved Direction
125
Improved Map Presentation
125
New Map Presentation
125
Operation
128
Main Menu
128
Settings Selection
128
Settings
128
Map and Arrow Presentation
129
Settings
129
Destination Input Main Menu
130
Destination Input Submenu
130
Route Selection
130
Destination Input
131
New Route
132
Country-Specific Version
133
Country-Specific Version US
133
Notes for Service
137
Service Information
137
Service Mode
137
Diagnosis
140
Coding
140
Car & Key Memory
140
