E85 Information/Communication
- 104 -
- TV aerials
2 TV aerials are mounted on the rear left and right in the bumper
trim (TV1 and TV2).
The positions of the aerials are matched to the vehicle.
The aerials are connected via ground cables to the body. The
TV1 and TV2 aerials are connected to the aerial diversity facility.
The aerial diversity contains a double TV amplifier for both
aerials.

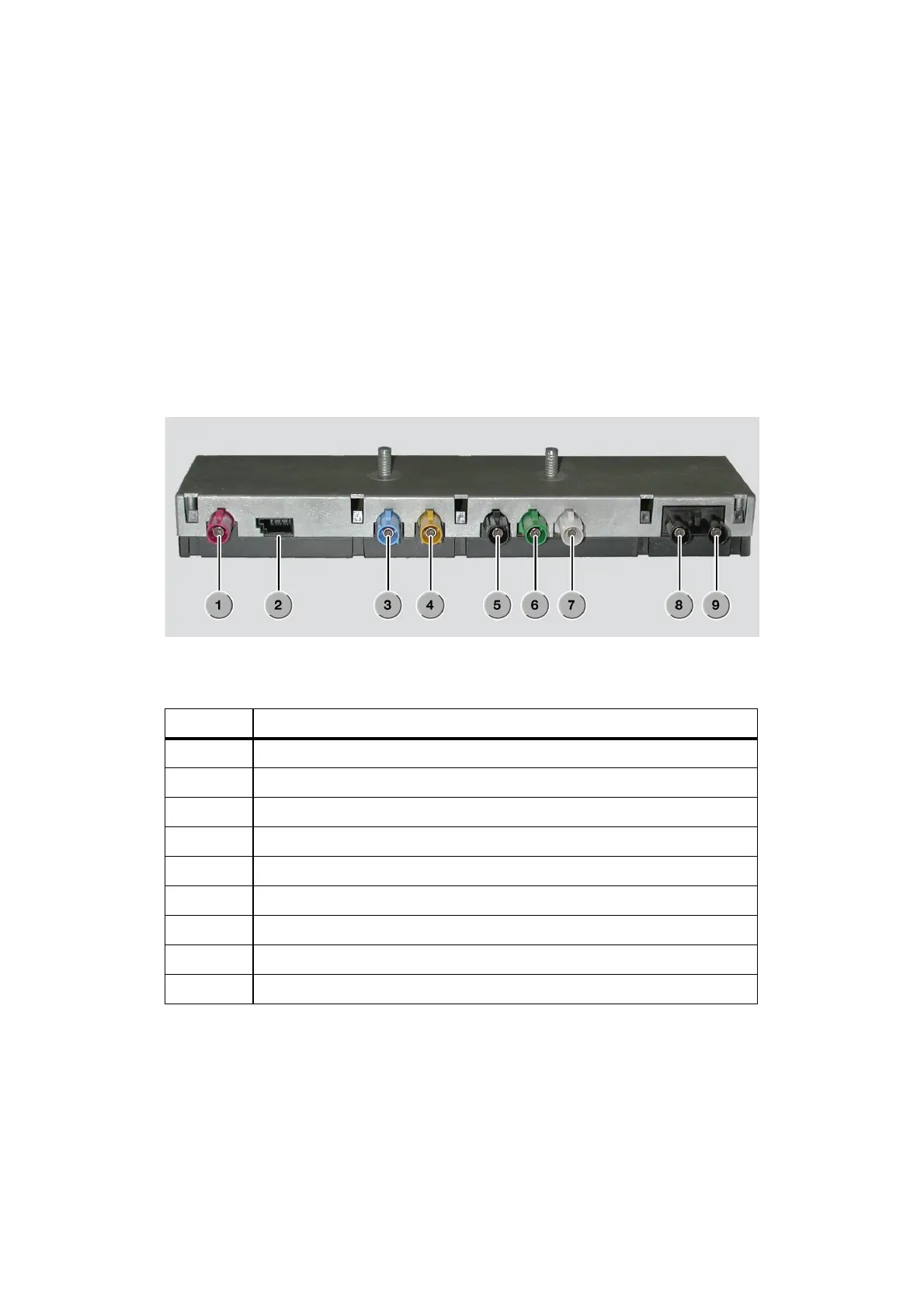

Fig. 69: E85 Connections of aerial diversity module
Index Explanation
1 Not used
2 Radio_ON signal
3 FM2 aerial
4 HF output to radio
5 FM input from rod aerial
6 TV1 aerial, rear left
7 TV2 aerial, rear right
8 TV1 aerial to video module
9 TV2 aerial to video module
KT-10096
