E85 Information/Communication
- 36 -
- Mid-range speakers, rear
The mid-range speaker has a diameter of 100 mm and a paper
cone. The maximum load capacity is 25 W.
The mid-range speaker covers a frequency range from 100 Hz to
15,000 Hz.
Installation location
The mid-range speakers are mounted behind the seats.
The output is aligned in forward direction.
The resonance volume is approx. 2 l.

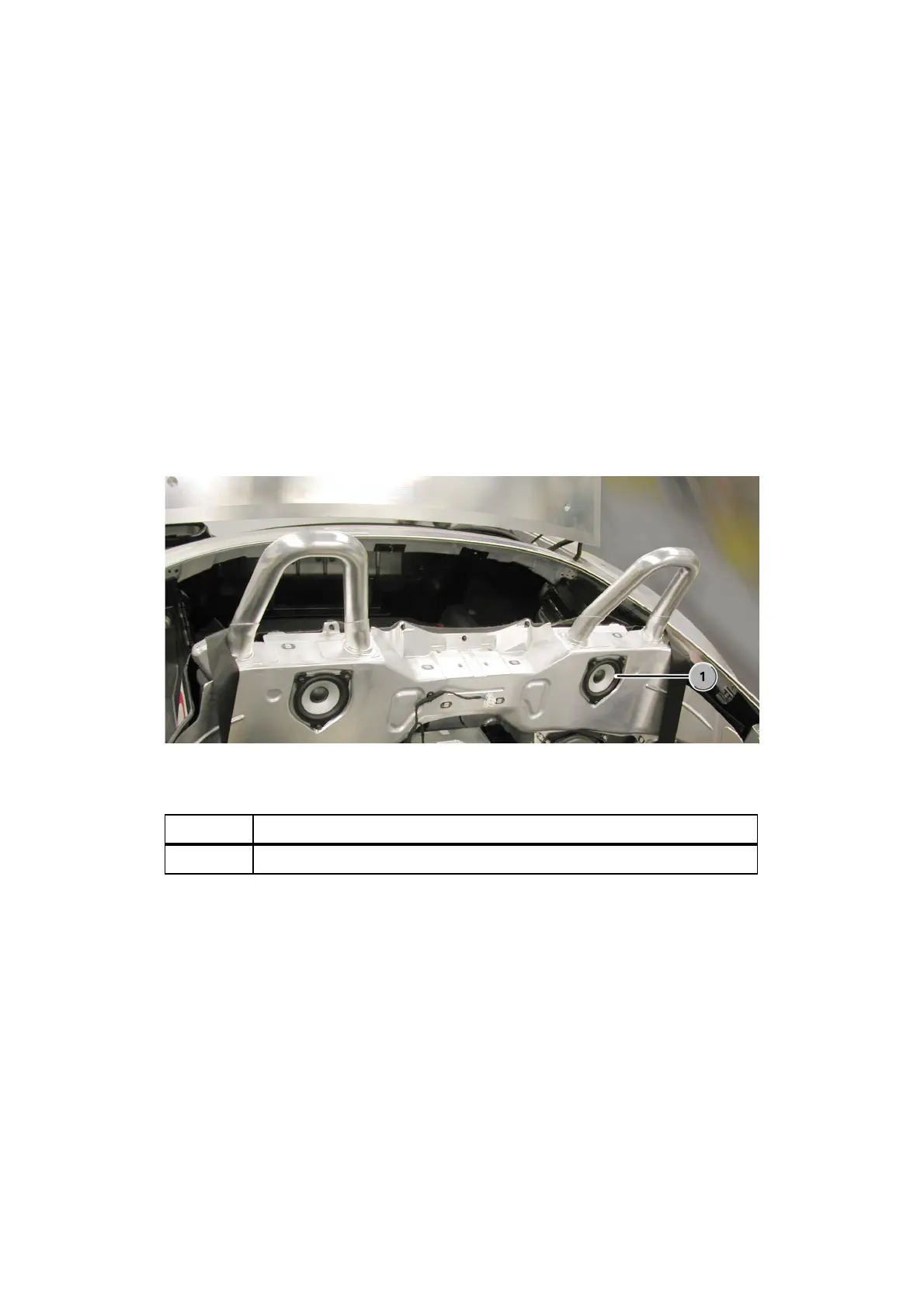

Fig. 28: E85 Mid-range speaker behind the seats
- Stereo audio system
The Stereo audio system is connected directly to the 4 speaker
outputs of the radio.
The tweeters are powered by the radio via the woofers and are
decoupled by means of capacitors.
The output of the stereo audio system is 4x25 W at 4
Ω.
All functions such as volume, bass, treble, fader etc. are formed
in the radio and output to the speakers.
Index Explanation
1 Mid-range speaker
KT-10097
