E85 Information/Communication
- 43 -

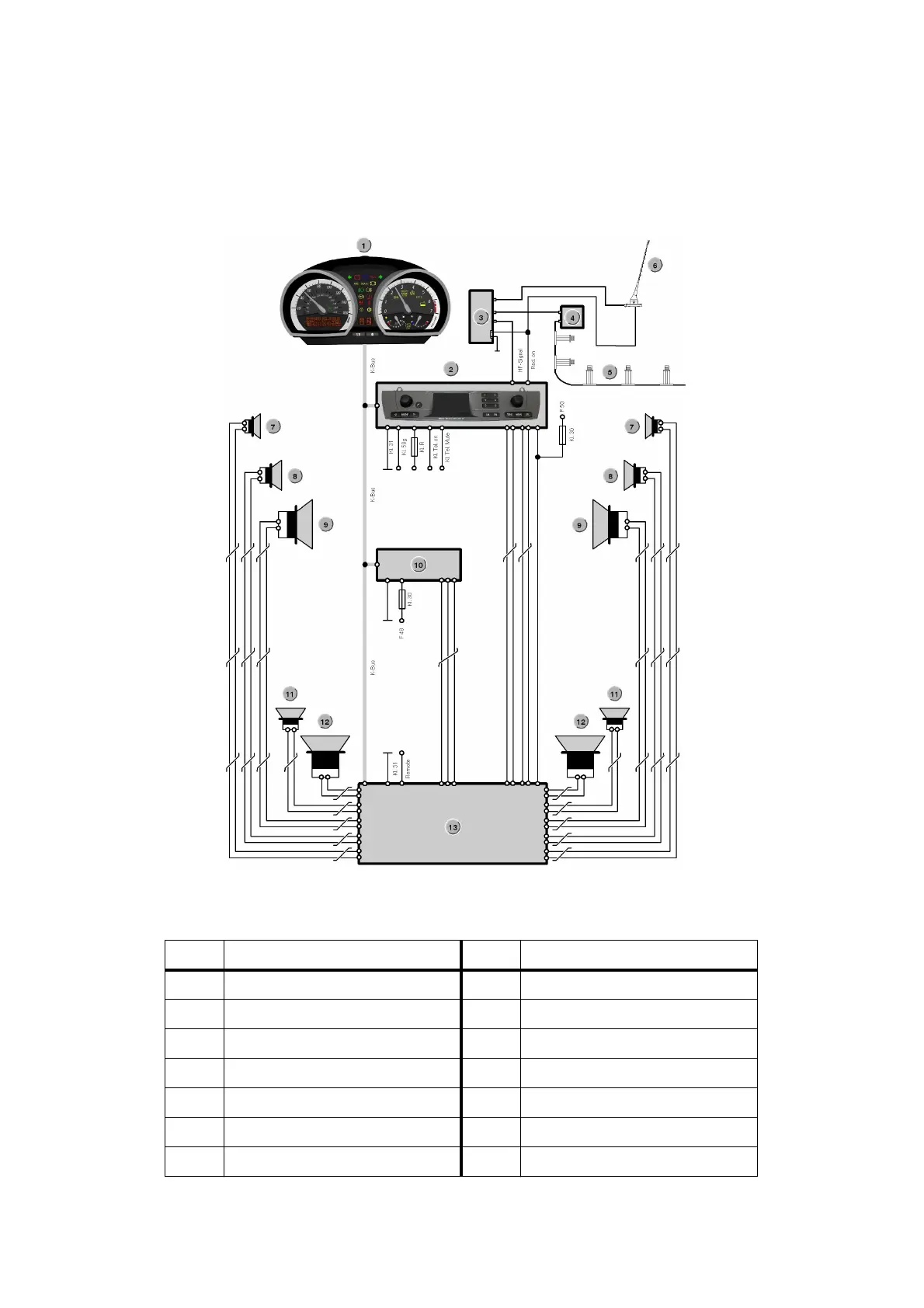

System diagram - Top-HiFi
Fig. 34: E85 System diagram - Top-HiFi
Index Explanation Index Explanation
1 Instrument cluster 8 Mid-range speaker, front
2 Multi-information radio 9 Low-range speaker, front
3 FM aerial diversity 10 CD changer
4 FM amplifier 11 Mid-range speaker, rear
5 FM aerial 2 12 Carver low-range speaker, rear
6 AM/FM1 aerial 13 HiFi amplifier
7 High-range speaker, front 14
KT-10007
