Installation 31/60
RE 92801-01-B/11.2018, A15VSO/A15VLO Series 11, BoschRexrothAG
7.4 Installing the axial piston unit
7.4.1 Preparation
1. Check the specifications onthe name plate tosee you have the correct axial
piston unit.
2. Compare the material number and designation (type code) with the parameters
inthe order confirmation.
Ifthe material number for the axial piston unit does not match the one inthe
order confirmation, contact your local contact person for clarification. You can
find their contact information at
www.boschrexroth.com/addresses
3. Before installing, completely drain the axial piston unit toprevent mixing with the
hydraulic fluid used inthe machine/system.
4. Check the permissible direction ofrotation oftheaxial piston unit
(onthenameplate) and make sure that this corresponds tothe direction
ofrotation ofthedrive motor.
L
R

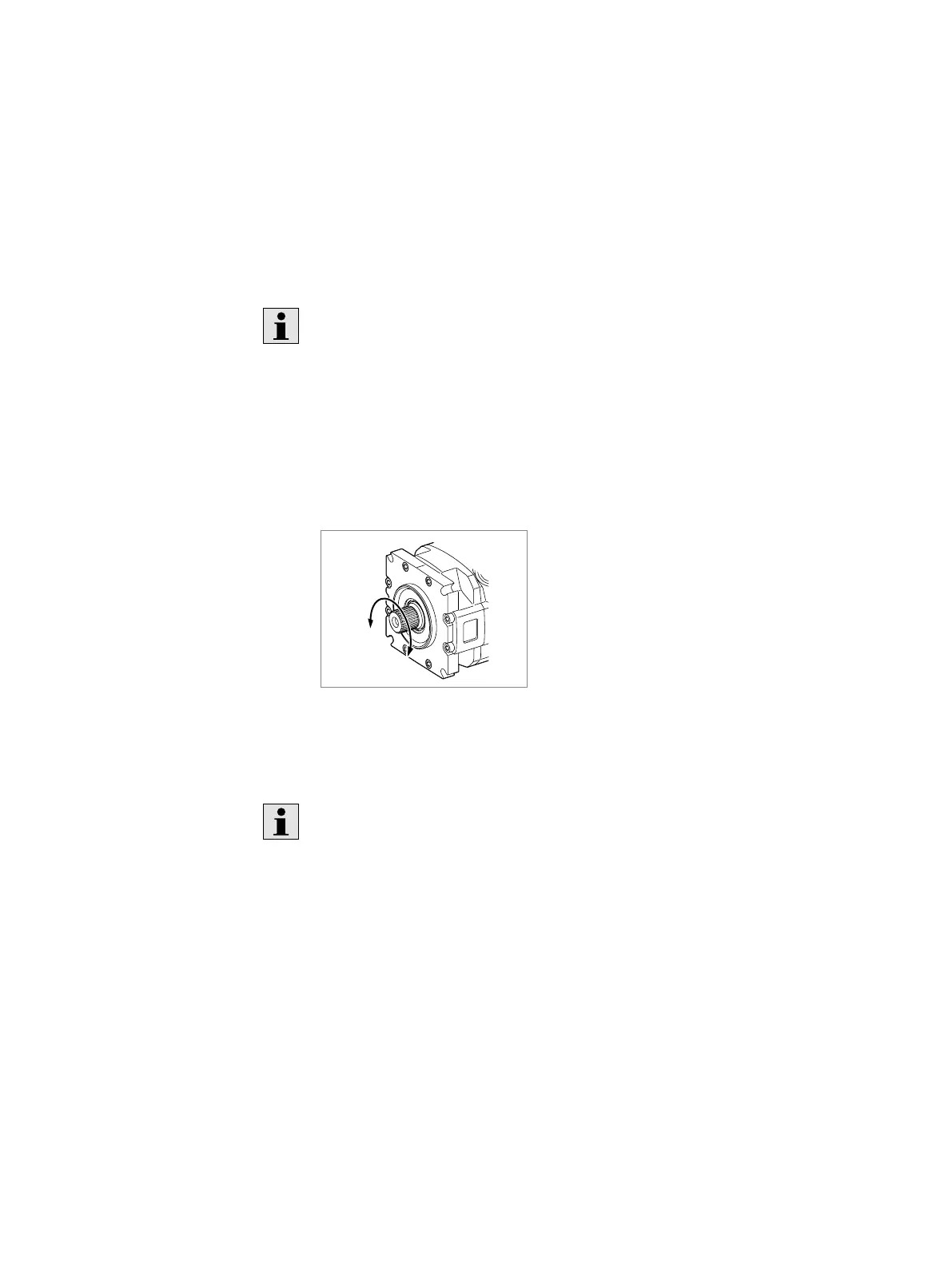

Fig. 12: Direction ofrotation
L
Counter-clockwise
R
Clockwise
The direction ofrotation asindicated onthe name plate determines the direction
ofrotation oftheaxial piston unit asviewed onthe drive shaft; seechapter5.3
"Product identification" onpage 20. For information onthe direction ofrotation
ofthedrive motor, please refer tothe drive motor manufacturer's instruction
manual.
7.4.2 Dimensions
For standard versions, the datasheet92801 contains all required installation
dimensions aswell astheposition and dimensions oftheconnections. If necessary,
aninstallation drawing can berequested. Also observe the manuals provided
bythemanufacturers oftheother hydraulic components when selecting the required
tools.
