6 Introduction
1.3 Label/Tag Media Specifications

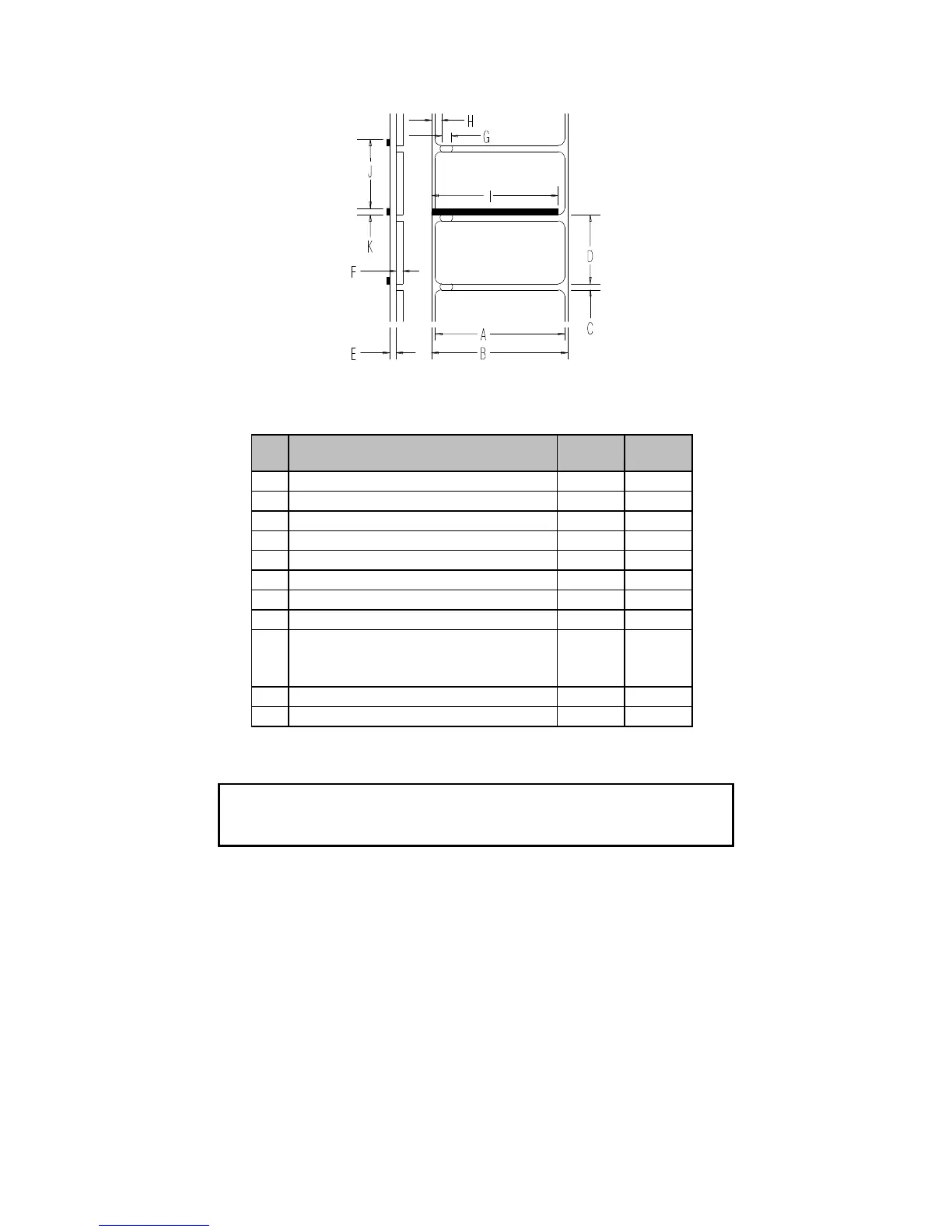

Figure 1-3 Media Dimensions
Description MAX.
(inches)
MIN.
(inches)
A Label width 4.650 0.750
B Backing width 4.650 0.750
C Gap between labels 99.99 0.100
D Label length 99.99 0.250
E Backing thickness 0.010 0.0023
F Label thickness 0.010 0.0025
G Width of sensor opening 0.500 0.200
H Distance media edge to sensor opening 2.250 0.200
I Reflective sensor mark width. It is
recommended that the entire width of
the label is marked.
4.00 1.000
J Distance between reflective mark 99.99 0.500
K Reflective sensor mark length 99.99 0.100
Table 1-1 Media Specifications
NOTE: The reflective sensor mark must be carbon based. The sensor is
infrared and will reflect off of a plain black mark.
The total thickness of label and backing is .010 inches max.
