10. Raise the Hinge Plate and close the Printhead by rotating the Printhead
Latch clockwise.
11. Locate the Ribbon ON/OFF switch, (see Figure 2-12), and slide the switch
to the right to select Thermal Transfer (ribbon on). This Switch is not
available with the LCD/Keypad Front Panel Option, (see Section 3.2).

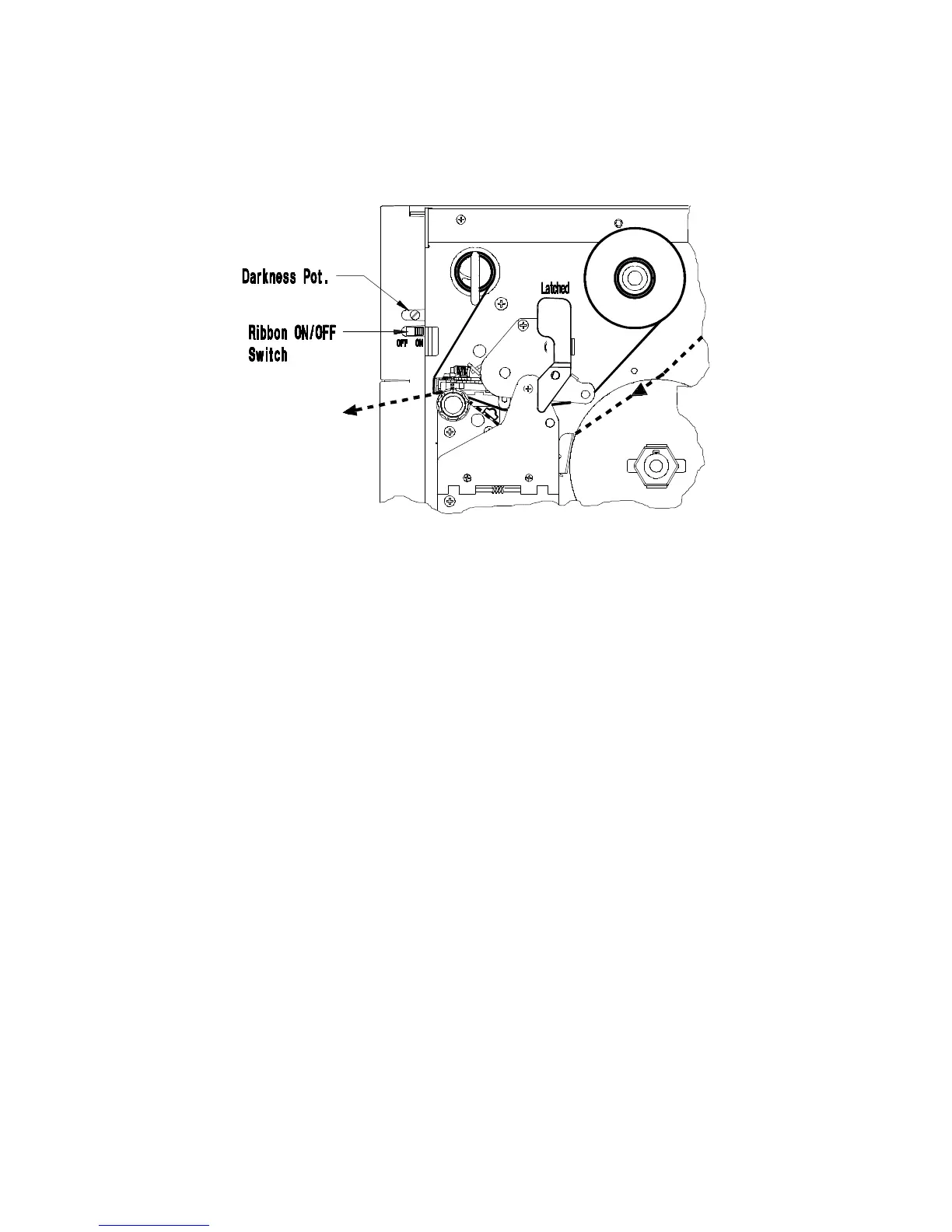

Figure 2-12 Selecting Ribbon On (Thermal Transfer)
Ribbon Removal:
1. Cut the ribbon anywhere between the Take-Up Hub and Printhead.
2. Rotate the Printhead Latch counterclockwise to raise the Printhead, then
lower the hinge plate.
3. While holding the ribbon Take-Up Hub, rotate the J-hook clockwise to
unlatch it, then slide off the used ribbon.
4. Turn the Ribbon Supply Hub clockwise to draw the unused portion of the
ribbon back onto the Ribbon Supply Roll.
5. Raise the Hinge Plate and close the Printhead by rotating the Printhead
Latch clockwise.
