5.3.2 Media Sensor Adjustment
To detect the media's edge for different media widths, the Media Sensor can be
adjusted across half the media path. The Media Sensor may require adjustment
when changing to a media of a different width. The gauge behind and below
the printhead can be viewed for making this adjustment
1. Open the Side Access Cover.
2. Make sure that the media guide is moved to the edge of the media.
3. Rotate the Media Sensor Adjustment knob clockwise to adjust for narrower
media and counterclockwise for standard width media.
NOTE: Do not force or over tighten the Media Sensor Adjustment Knob.

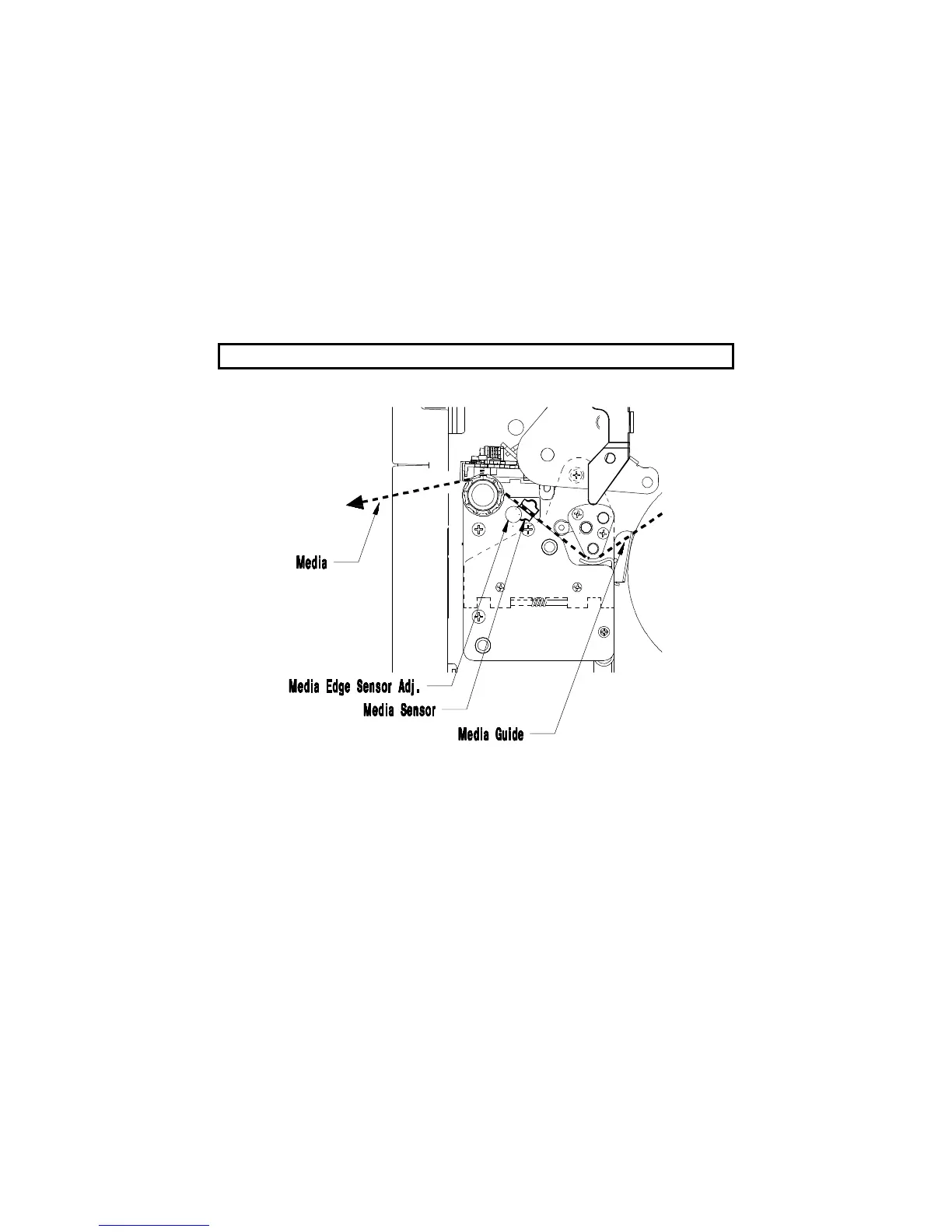

Figure 5-3 Media Sensor Adjustment
