Original Image Stage
Original Image Stage

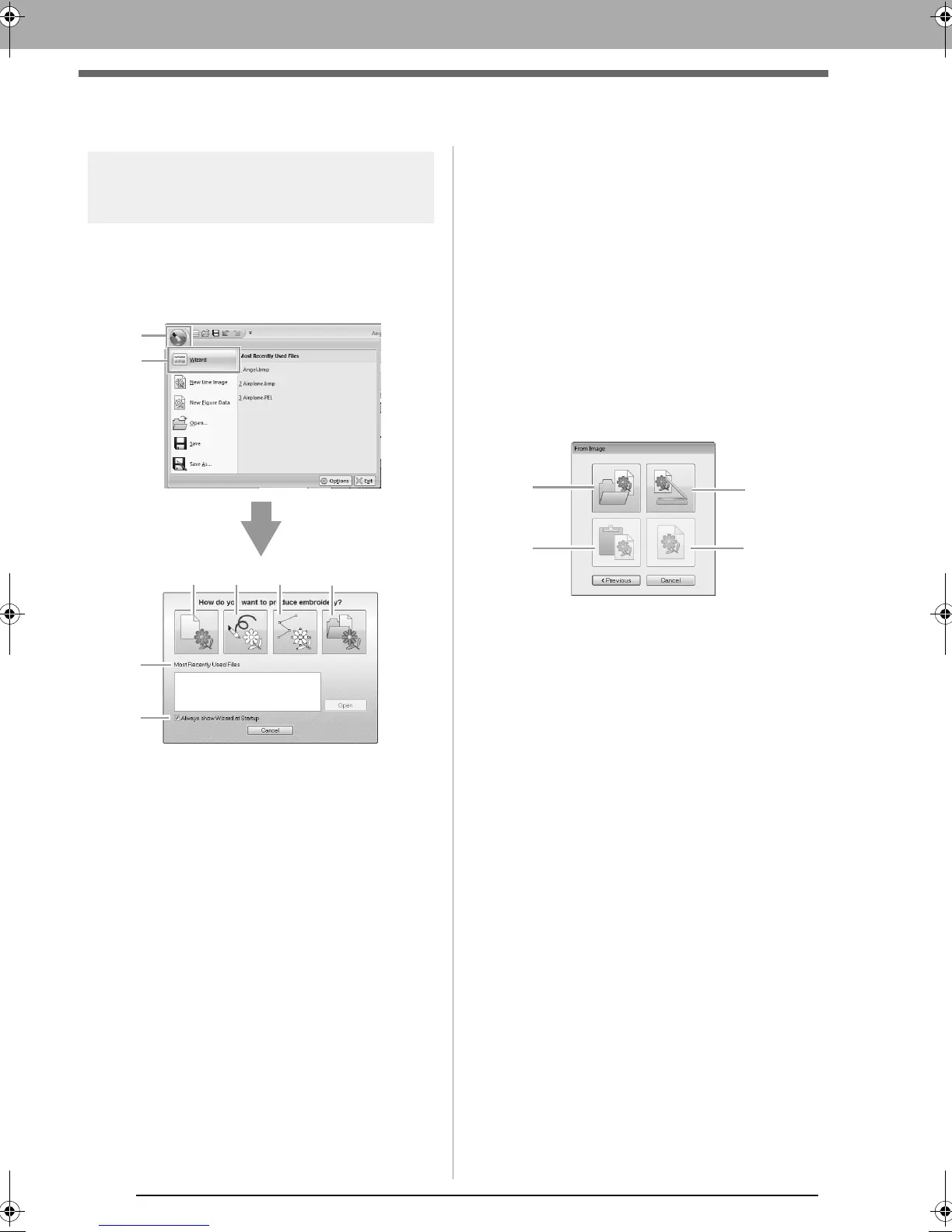

Using the wizard
This wizard provides a step-by-step guide for
creating embroidery patterns.
Click 1, then 2.
(1) From Image
Clicking this button displays the From Image
dialog box.
(2) New Line Image
Clicking this button opens a new Design Page in
the Line Image Stage.
c
“Drawing a new line image freehand” on
page 197.
(3) New Figure
Clicking this button opens a new Design Page in
the Figure Handle Stage.
c
“Drawing a new figure handle image
freehand” on page 199.
(4) Open PEM
Clicking this button displays the Open dialog
box so that a .pem file can be selected.
(5) Most Recently Used Files
From the list, click the name of the file, and then
click Open.
(6) Always show Wizard at Startup
Select this check box to start up the wizard each
time Design Center is started up.
■ Opening an image
When you click the From Image button in the How
do you want to produce embroidery? dialog box,
the From Image dialog box appears.
(1) Open Image File
Clicking this button that displays the Open
dialog box to select an image file.
c
“Image file formats” on page 137
(2) From Clipboard
Clicking this button to paste the image on the
Clipboard into the Design Page. This function
can only be used when there is an image on the
Clipboard.
(3) From TWAIN Device
Clicking this button to import an image from a
TWAIN device (such as a scanner) connected to
your computer, then paste it in the Design Page.
(4) Use Current Image
Clicking this button to use an image opened in
the Original Image Stage. This function can only
be used when an image is opened in the Original
Image Stage.
1
2
(1) (2)
(5)
(4)
(3)
(6)
(1)
(2)
(3)
(4)
