Specifying the Design Page Size and Color

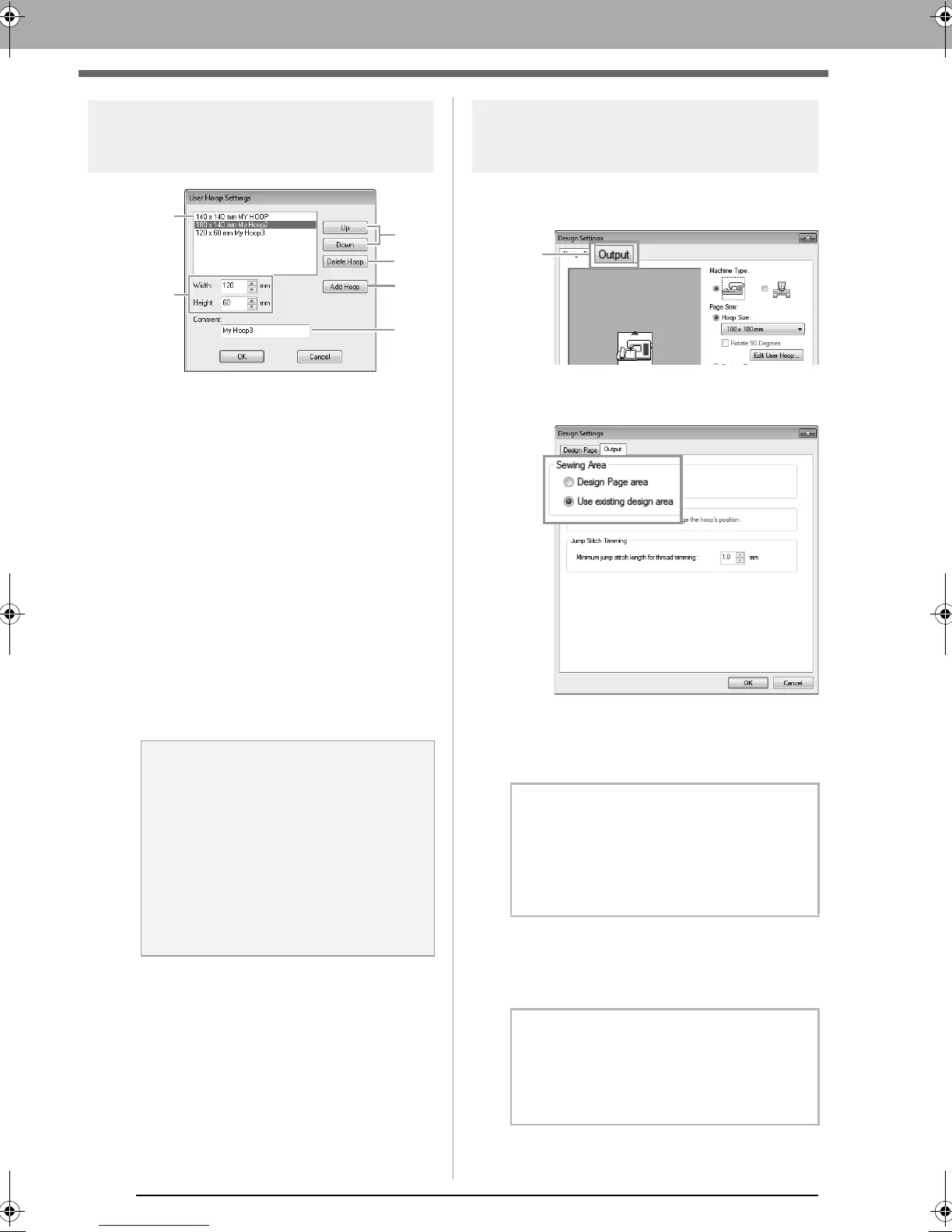

Specifying a user hoop size
(1) Width, Height:
Type in the size of the hoop to be added.
(2) Comment:
If text was entered in this box, that text
appears beside the size.
(3) Add Hoop:
Click this button to add the hoop size.
(4) User Hoop List:
The added hoop size appears in the list.
Select a hoop size in this list to change the
display order or to delete it.
(5) Up, Down:
Click these buttons to move the selected
hoop size up or down in the display order.
(6) Delete Hoop:
Click this button to delete the selected
hoop size.
Specifying the sewing area
The sewing area can be specified.
Click 1.
Select the desired sewing area (Design Page area
or Use existing design area).
Design Page area: The patterns will be sewn
so that the needle position when you start
sewing is aligned with the center of your
Design Page.
Use existing design area: The patterns will
be sewn so that the needle position when you
start sewing is aligned with the center of the
actual patterns.
a Note:
• A User Hoop cannot rotate 90°.
• A User Hoop cannot be added to the
Section Size (for Hoop Size) selector
under Custom Size.
• Do not create a Custom Hoop larger than
the embroidery hoop that can be used with
your machine.
• Embroidery data created in a User Hoop
cannot be saved in a format for a previous
version.
(1)
(4)
(5)
(6)
(3)
(2)
b Memo:
When Design Page area is selected, the
dimension of the pattern matches the size of
the Design Page, therefore reducing the
ability to move a pattern around the layout
screen of your embroidering machine.
b Memo:
When Use existing design area is selected,
the actual pattern size is maintained, therefore
allowing greater mobility when using the layout
functions of your embroidering machine.
