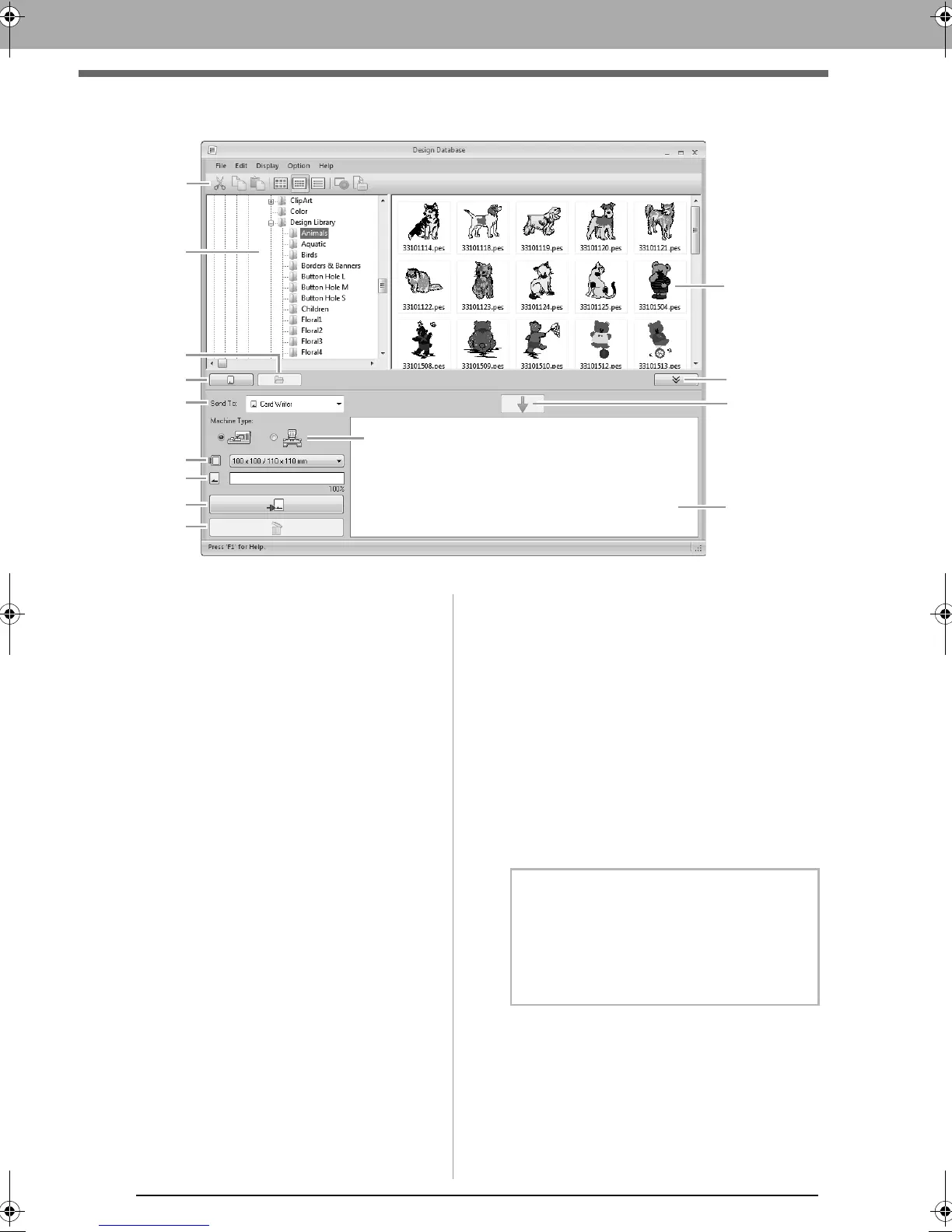

Design Database Window
Design Database Window
1Toolbar
2 Folder pane
3 Contents pane
Displays thumbnails of all embroidery design in
the selected folder.
4 Card reading button
Reads an original card.
5 Folder content display button
Displays the folder contents.
6 Send to selector
Select where the embroidery files will be written
or sent.
7 Machine Type
The settings available in the hoop size selector
differ depending on the selected machine type.
8 Hoop size selector
9 Card Capacity indicator
Displays the capacity of the original card or
embroidery machine memory for the selected
designs (displayed in the writing list) when an
original card or embroidery machine has been
selected as the destination for writing the data.
10 Write button
Begins writing the selected designs (displayed in
the writing list).
11 Remove button
Returns the selected design (displayed in the
writing list) to the unselected state.
12 Writing list
Displays the list of designs to be written to the
original card, USB media or embroidery
machine.
13 Add button
Adds the design selected in the contents pane to
the writing/transfer list.
14 Writing box display/non-display button
Click when writing/transferring designs.
Click this button to hide or display the Writing list.
6
4
9
5
2
1
11
12
13
14
3
7
8
10
b Memo:
Settings for the following can be selected from
the
Option menu.
• Select mm or inch as the system units.
• Select Blue , Black , Silver or Aqua as the
application color.
XE8656-001.book Page 212 Monday, May 24, 2010 5:44 PM
