Design Center
Figure Handle Stage

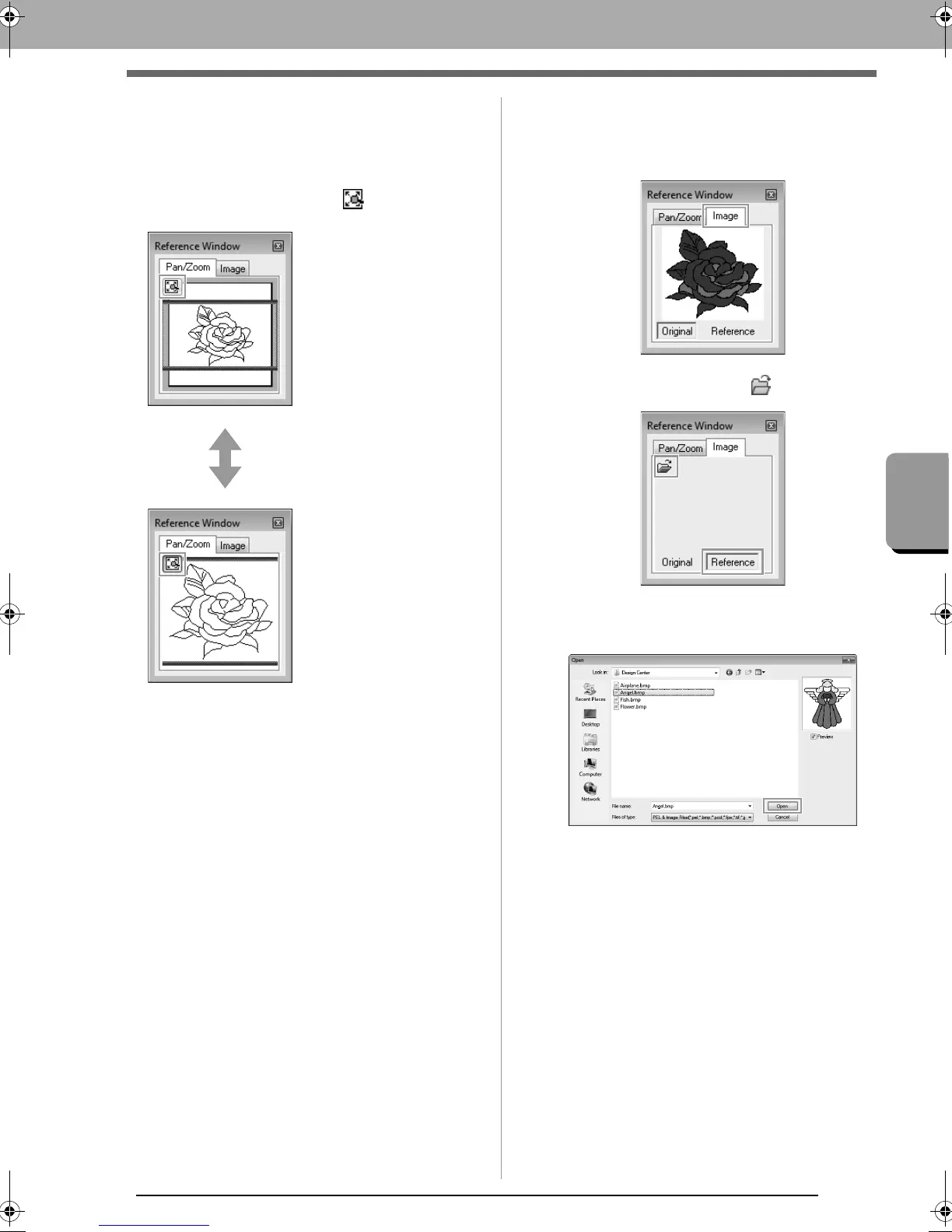

■ Zooming
The Reference Window can be switched to display
either the entire Design Page or only the embroidery
pattern.
Click the Pan/Zoom tab, click .
■ Moving the display area frame
The part of the outline displayed in the Design Page
can be selected from the Reference Window.
1. Move the pointer over the display area frame.
2. Drag the display area frame so that it
surrounds the desired part of the outline.
 The selected part of the outline is
displayed in the Design Page.
■ Redrawing the display area frame
Instead of moving the display area frame, the frame
can be redrawn to display the desired part of the
outline in the Design Page.
Click the area to be displayed, or drag the pointer
over the desired part of the outline in the Reference
Window.
■ Displaying a different reference
1. Click the Image tab.
2. Click Reference, then click .
3. Select the reference image, and then click
Open.
Displays the entire Design
Page.
Displays the entire
pattern.
