6.2 Connecting the Transfer Line Holder
Attach the transfer line holder to the Bruker Sample Transport (BST).

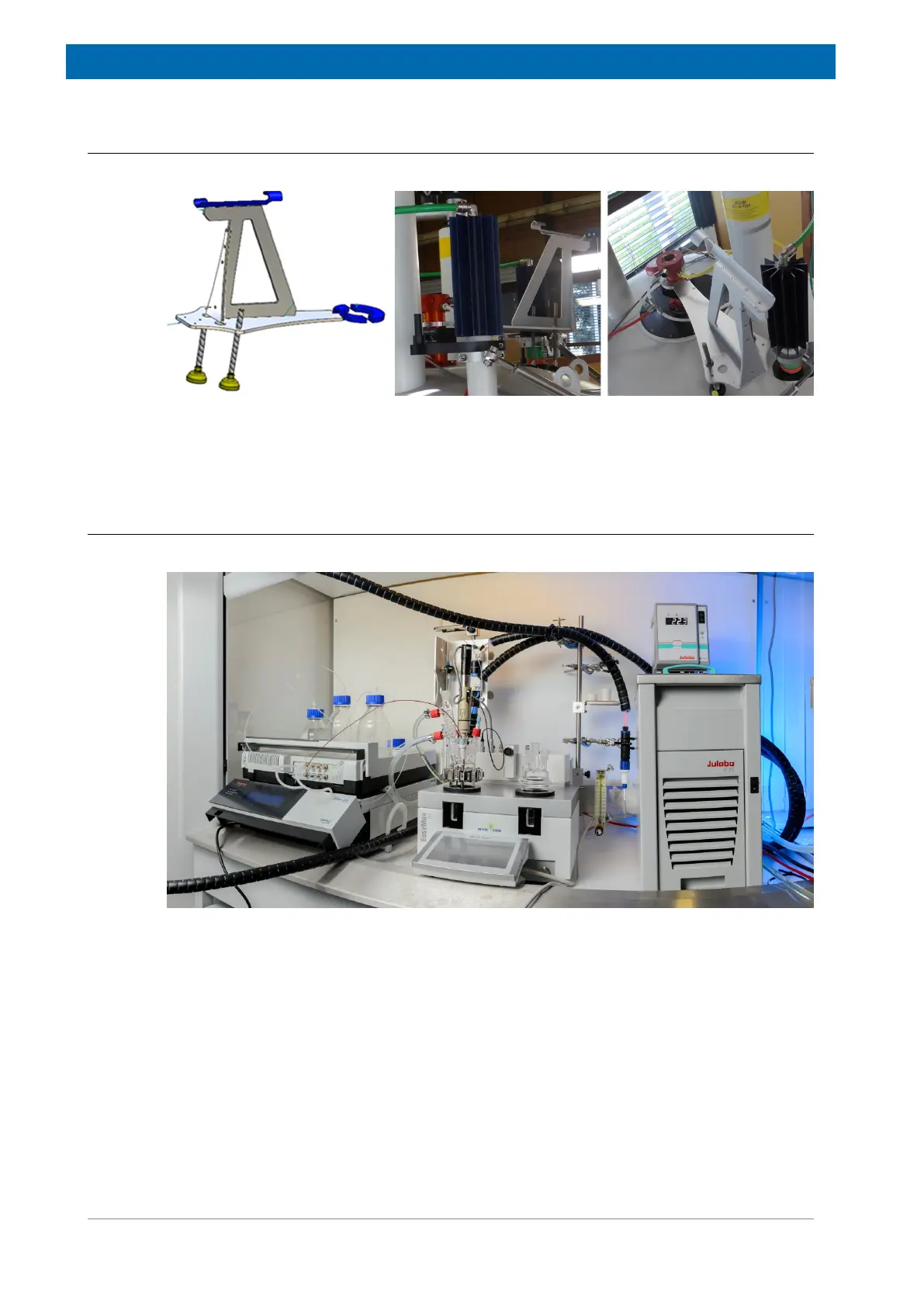

Figure6.2: The Transfer Line Holder
Note that this is not for the SampleJet.
6.3 Testing the Flow Unit Prior to Inserting it into the Magnet
Figure6.3: The InsightMR Flow Unit. From left to right: the pump, the reactor, the flow tube assembly
secured with a clamp stand and the thermostat.
Note that the pump shown in the picture is not the InsightMR pump that can be purchased
optionally with the system.
• Place the flow unit on a table and temporarily secure it against any movement.
