Implementation:
According to Association of German Electrotechnical
Engineers regulations and the provisions of the Instru-
ment Safety Act.
Test labelling:
Use:
For charging batteries with a rated voltage of 12 volt and
a capacity of 60 - 160 Ah.
Dimensions / weight
Housing: Aluminium, ventilated
Length:
Width:
Height:
275 mm
190 mm
115 mm
Weight: 2.1 kg (21 N)
Characteristic charging curve
HL =
NL =
EL =
Main charging phase
Post charging phase
Holding charge

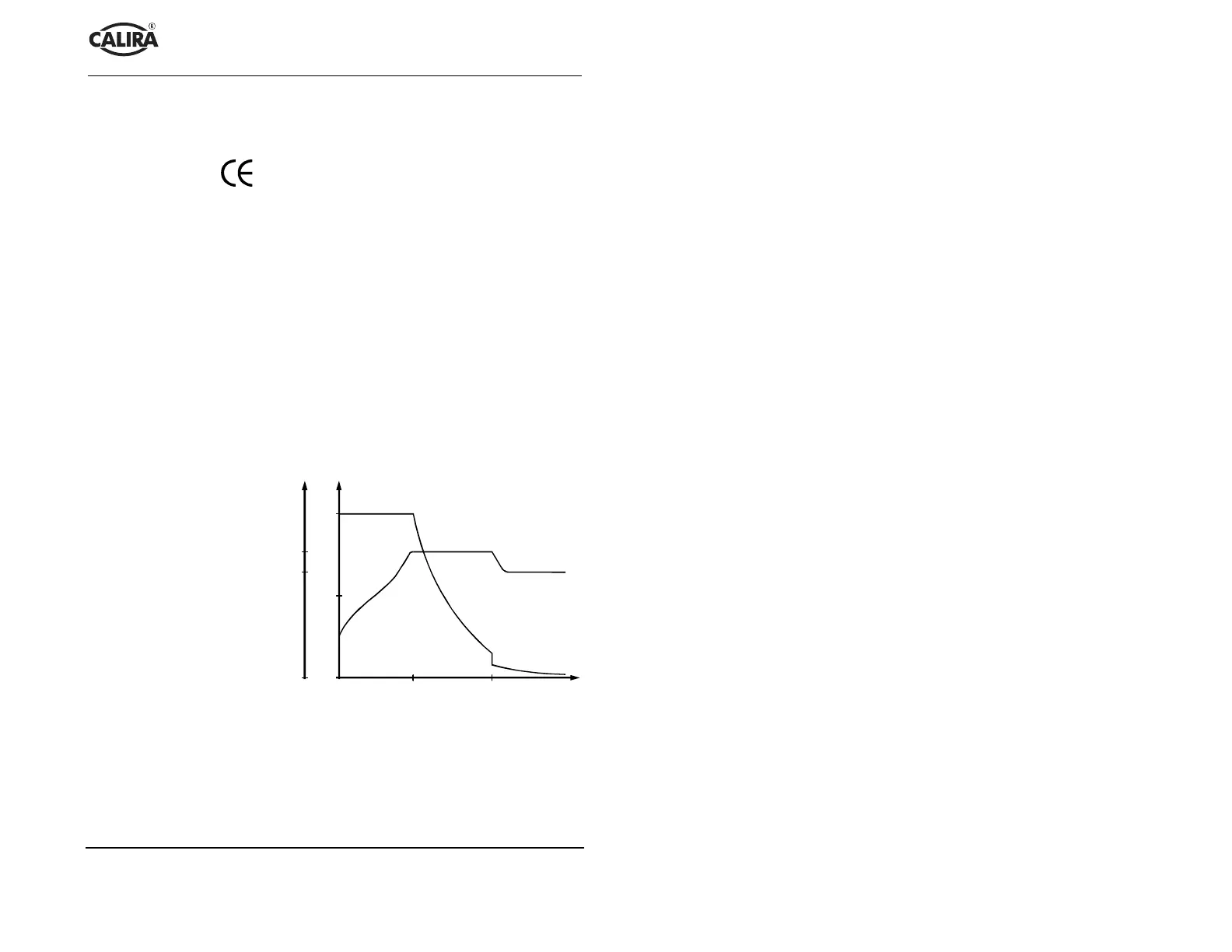

Fig. 5: Characteristic charging curve (schematic diagram)
The right to make technical modifications is reserved.
