Connecting to the control panel
Plug the 7-pole ribbon cable into your control panel. The assignation of the
contacts is according to the following list:
Contact 1
Contact 2
Contact 3
Contact 4
Contact 5
Negative connection
Positive test connection for battery 2
Positive test connection for battery 1
Control connection for consumer relay
Output for charge control

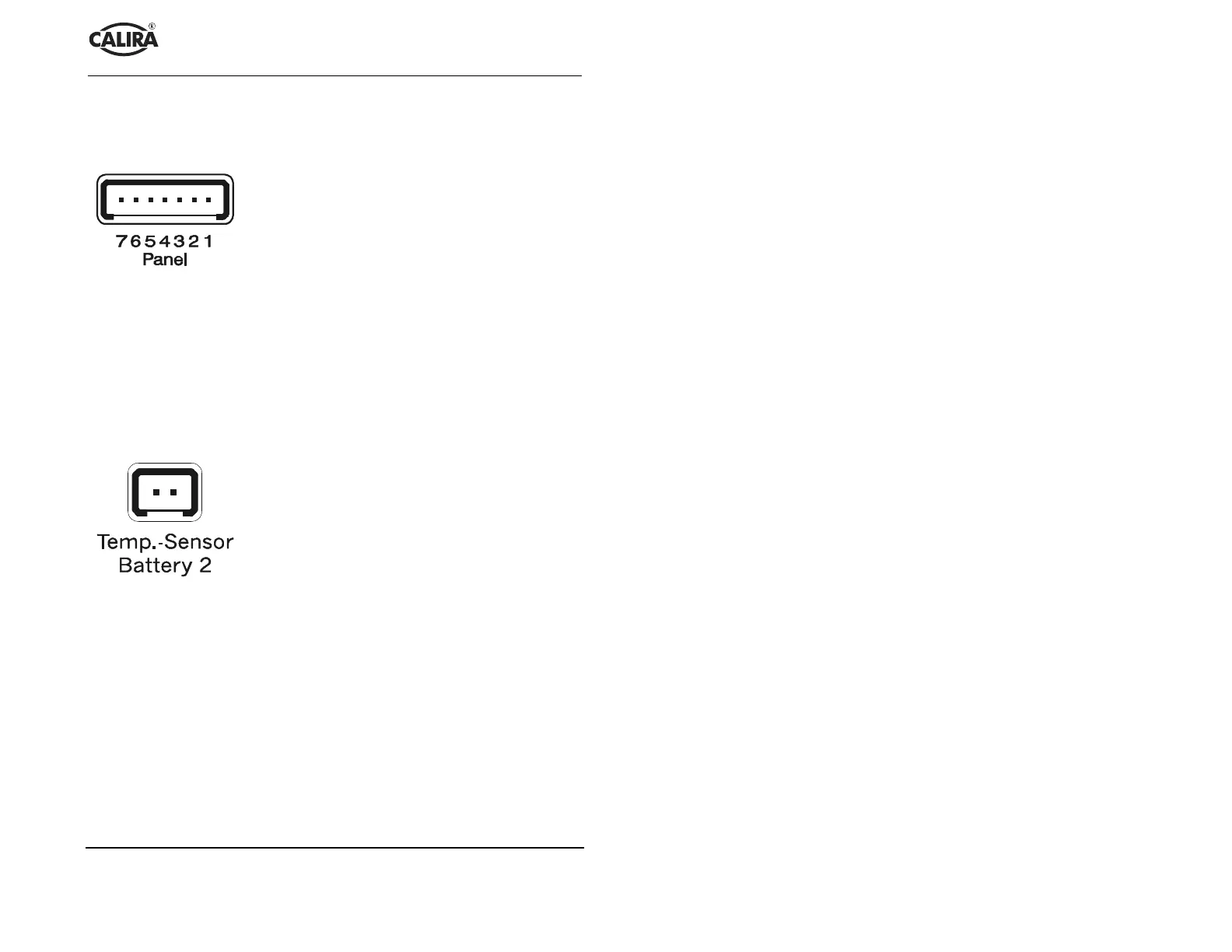

Fig. 15:
7-pole connector
Contact 6
Contact 7
Output for Tremat signal
Control connection for pump relay
Plug the 7-pin ribbon cable into the associated port on the device (Fig. 4, pos.
9). The ribbon cable can only be inserted into the correct socket on the device
when in the correct position. Do not use any force.
Connecting the temperature sensor
If a temperature sensor is used for battery 2, plug t
temperature sensor cable into the temperature sensor
port (Fig. 4, pos. 7) of the device (2-pin connection).
Fig. 16: Temperature
sensor
