RBM 84
REM
RBM84 -
Hardware and connections
14
Page
14 - Manual code:
FA00189M04 ver.
10/2015 © CAME s.p.a. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.a.
to successive Rem or Turnstile, up to 60 units
(INPUT OR OUTPUT CAN BE CONNECTED TO TERMINAL BLOCK 1 OR 2)
from Rbm84 to the last Rem/Turnstile,
maximum distance must be 1000 m
Connecting to A segment:
RBM84 is at the end of the cable path
Each Rem is identifi ed by Rbm84 through
a progressive sequential numbering (1 to
60) regardless of the position along the path
of the connection cable; such number (also
called address) must be set to the appro-
priate dip selector in the base Rem card.
In the event of communication problems be-
tween the Rem and the RBM84 card, position
Dip4 to ON on the last Rem connected.

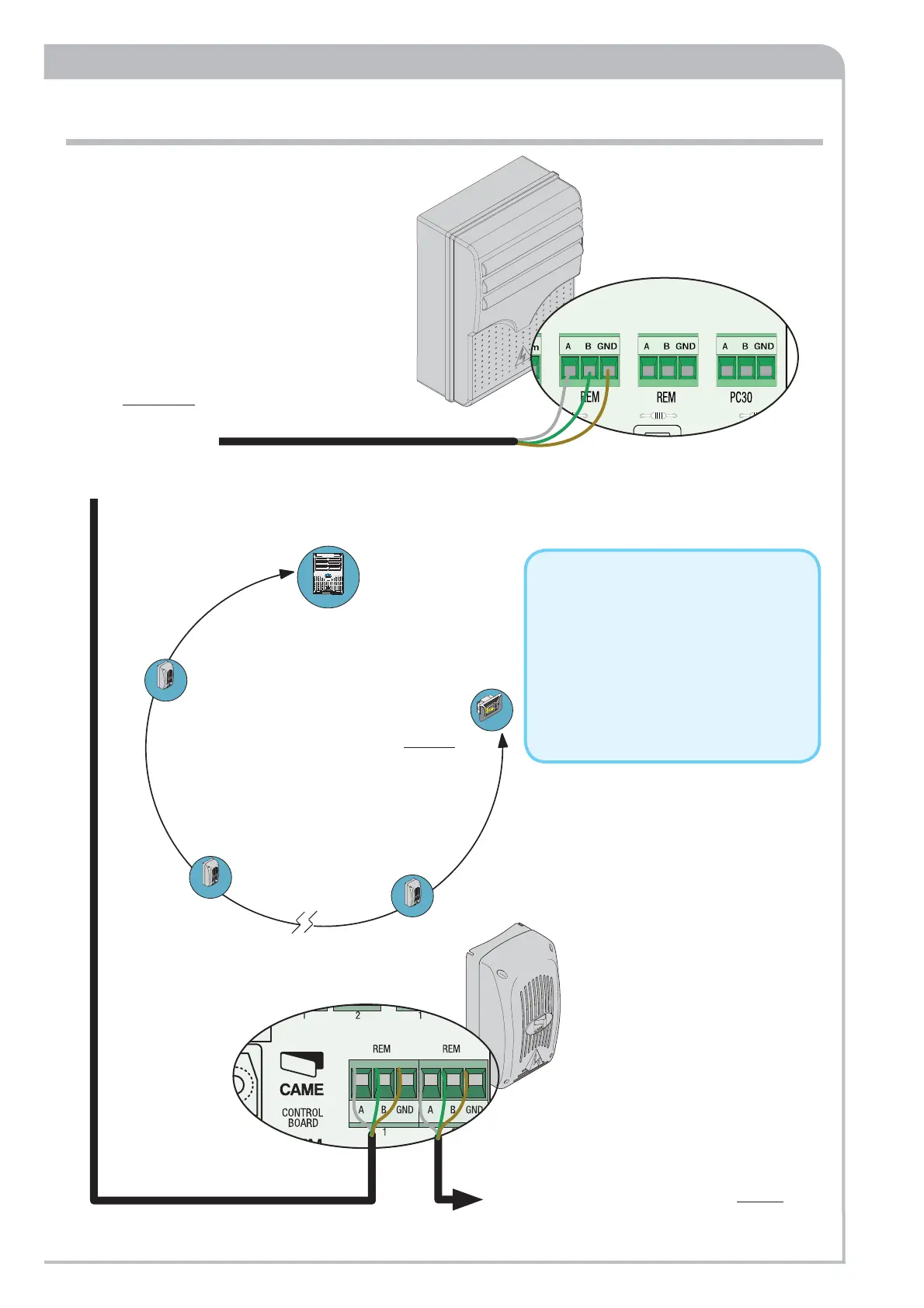

RBM84 connection <----> REM (single segments)
Cable NOT INCLUDED
recommended type:
unshielded
multipair cable
(CAT 5 - U/UTP - AWG24)
see Annex A
