RBM 84
RBM84 -
Hardware and connections
15
Page
15 -
Manual code:
FA00189M04 ver.
10/2015
© CAME s.p.a. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.a.
to successive Rem or Turnstile *
(INPUT OR OUTPUT CAN BE CONNECTED TO TERMINAL
BLOCK 1 OR 2)
* the sum of the Rem and/or Turnstiles that are serial connected along the
segment A+B must be at most 60 units
to successive Rem or Turnstile *
(INPUT OR OUTPUT CAN BE CONNECTED TO TERMINAL BLOCK 1 OR 2)
Segment A*
Two SEGMENT connection: RBM84 can be
located in any position along the cable route
from the fi rst to the last Rem/Turnstile,
maximum distance must be 1000 m
Segment B
Each Rem is identifi ed by Rbm84 through
progressive sequential numbering (1 to 60)
regardless of the position along the path of
the connection cable; such number (also
called address) must be set on the appro-
priate dip selector in the base Rem card.

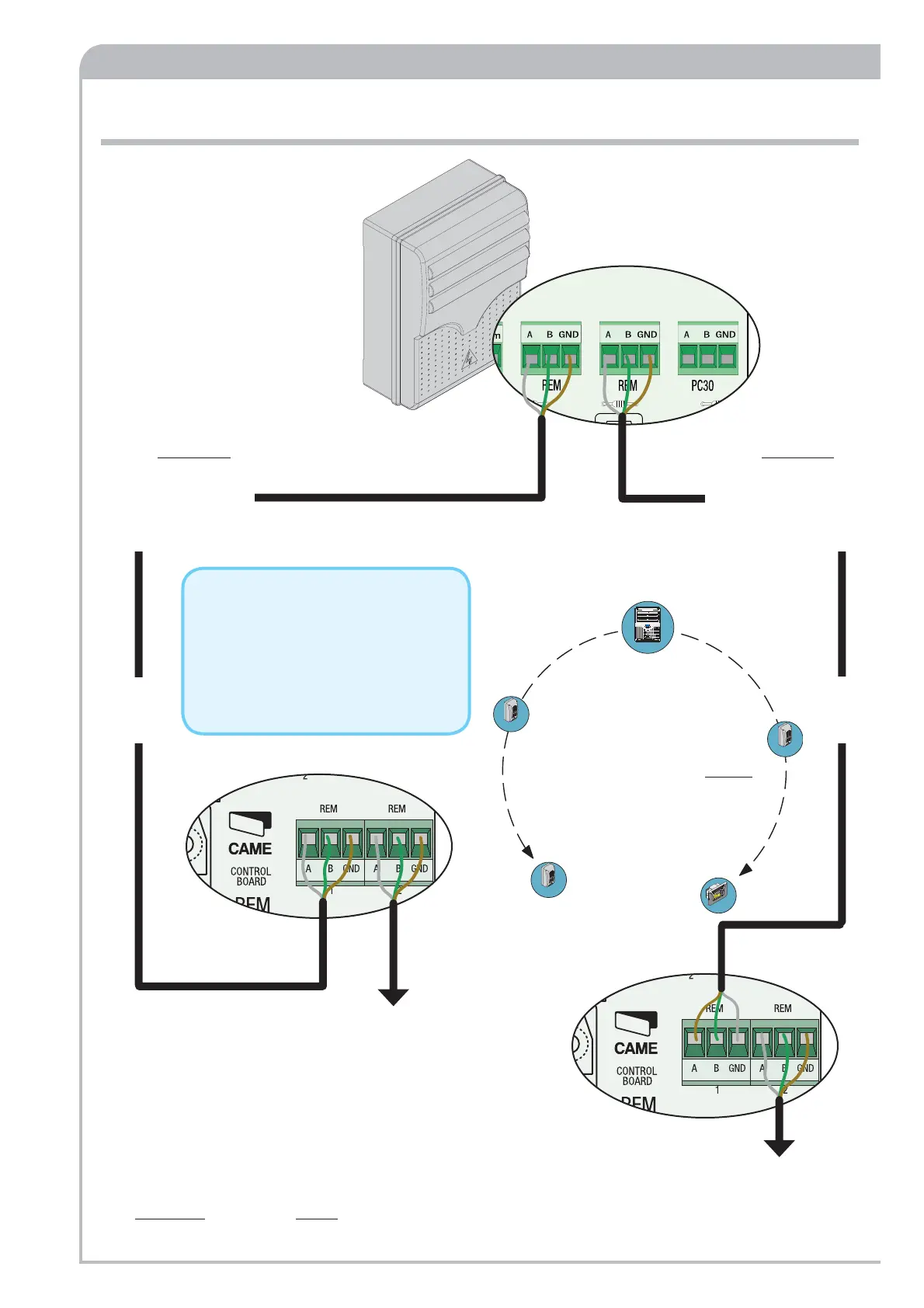

RBM84 connection <----> REM (two segments)
Cable NOT INCLUDED
recommended type:
unshielded
multipair cable
(CAT 5 - U/UTP - AWG24)
see Annex A
Cable NOT INCLUDED
recommended type:
unshielded
multipair cable
(CAT 5 - U/UTP - AWG24)
see Annex A
