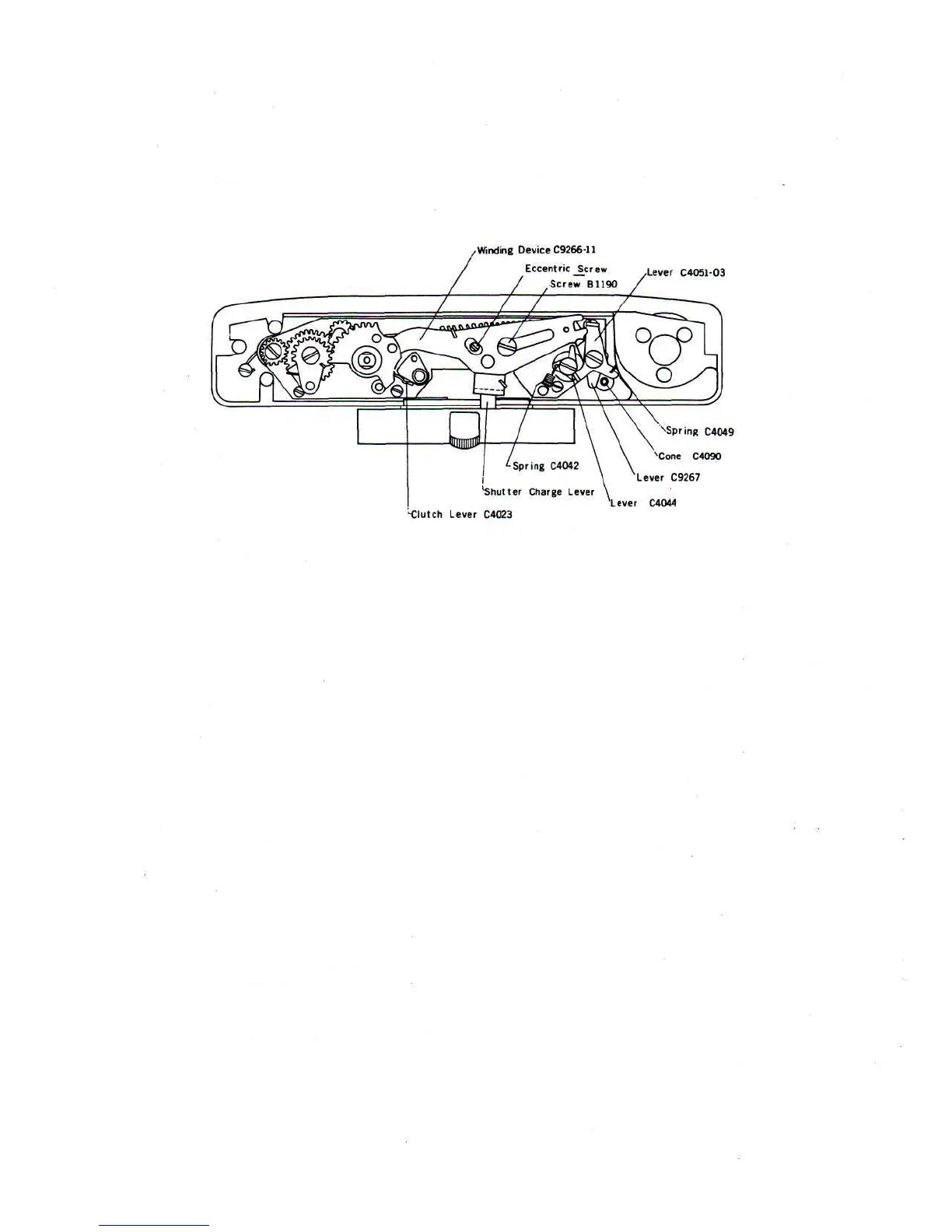

WINDING MECHANISM
When the camera shows the conditions described below, it may be assumed that the Winding Mechanism has
become defective and so the following adjustments should be made:
When the shutter is not charged even after the Trigger Lever is wound, the following adjustments should be made:
Loosen Screw B1190. float Winding Device C9266-11 and set the Shutter with a pair of tweezers.
Then adjust the amount of charge by turning the Eccentric Screw of C9266-11.
See Repair Manual p.5.
When the Trigger Lever dnes not move, the following checks and adjustments should be made:
1. Check to see whether the Screw for the Winding Device is loose.
2. Check to see whether Snring C4049 is out of place. If so, reattacii.
See Repair Manual p.5.
3. If Cone C4090 is caught between Lever C9267 and Lever C4051-03. loosen Screw S1777 and adiust C4090
by turning it to the right.
See Repair Manual pp 2&5
4. If Lever C4051-03 does not disengage itself from Lever C4044 when the shutter Nitron is pressed down
because Cone C4090 does not go down enough, Screw S1777 should be loosened and adjustments made by
turning C4090 to the left.
See Repoir Manual pp.2&5.
When the Trigger Lever runs idle or when it winds many times before the shutter button is pressed down,
the following checks and adiustments should be made:
1. Check to see whether Spring C4042 is out of place. If so. reattach.
See Rppoi<" Manual p5
2 If the spindle of Lever C4044 is bent, rentace Base Plate C9262-09.
See Repni' Mnnuol p 5
8
