Canon DC20 E User Manual

DC10 E, DC20 E
DISASSEMBLING
52

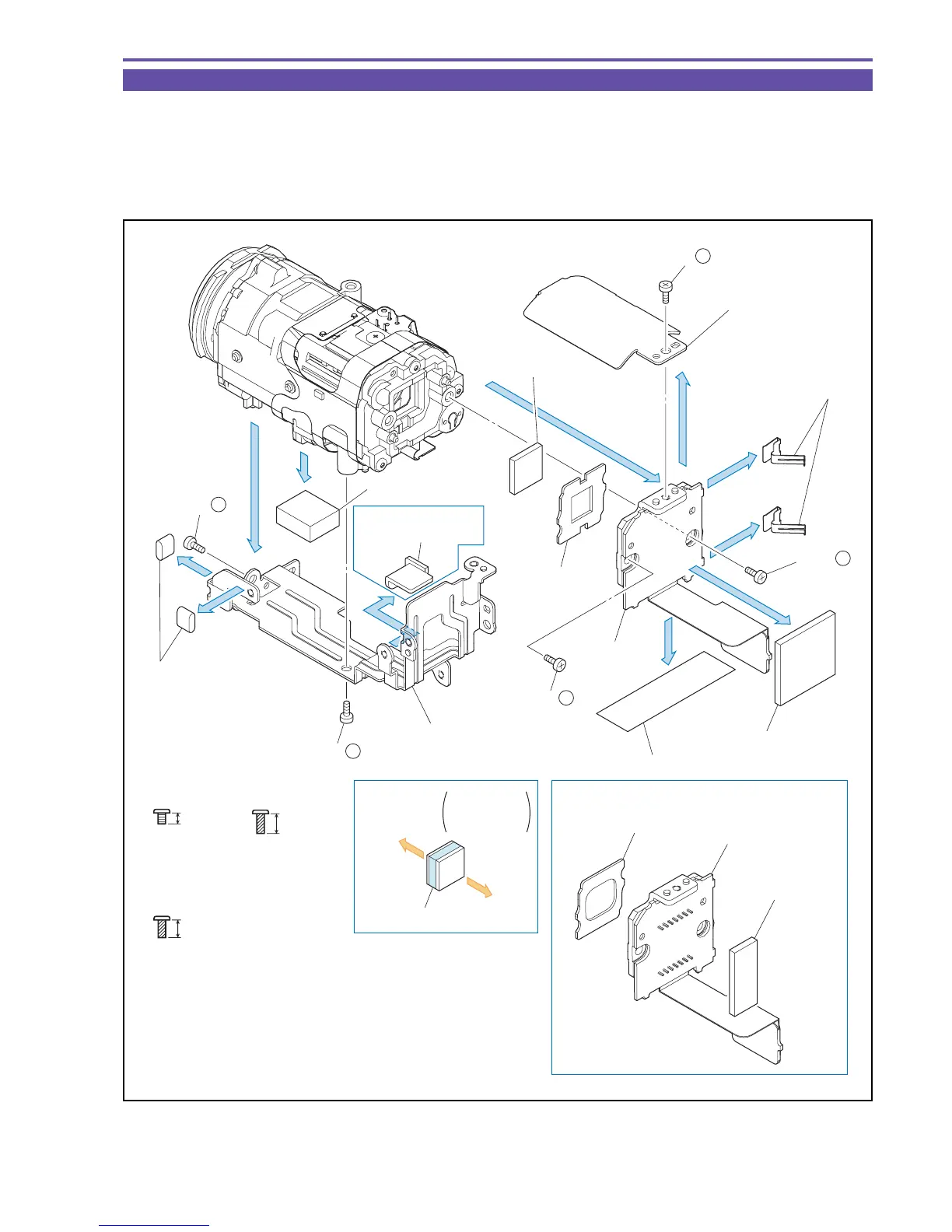

1-29 Disassembly of Camera Unit
(1) Remove two screws (i × 2) , and detach the Lens Holder, the Right Side Gasket, the ST Wire Protector (DC20 E only), the CCD
PCB Absorber, the CCD GND Plate, and the Lens Sponge.
Note : Take care not to deform the CCD GND Plate.
(2) Remove one screw (a × 1) , and detach the CCD Heatsink Plate.
(3) Remove two screws (f × 2) , and detach the CCD Ass'y, the CCD Rubber, the Optical IR Filter, and the Shield Sheet.
Fig. 49
i
f
4.5mm
Metal
M1.7
a
2.5mm
Metal
M1.7
(self tap)
Metal
M1.7
(self tap)
4mm
IR Filter
Lens
CCD
(1)
(1)
(1)
CCD GND Plate
CCD Heatsink Plate
CCD PCB Absorber
CCD PCB
Absorber
CCD Rubber
CCD Rubber
Optical IR Filter
Lens Holder
ST Wire Protector
Lens Sponge
Right Side
Gasket
CCD Shield Sheet
(3)
(1)
(1)
(1)
(1)
(1)
(3)
(2)
CCD Ass'y
CCD Ass'y
(2) - a
(3) - f
(3) - f
(1) - i
(1) - i
DC10 E only
DC20 E only
Face thick
side toward
CCD side
