DISASSEMBLING
8

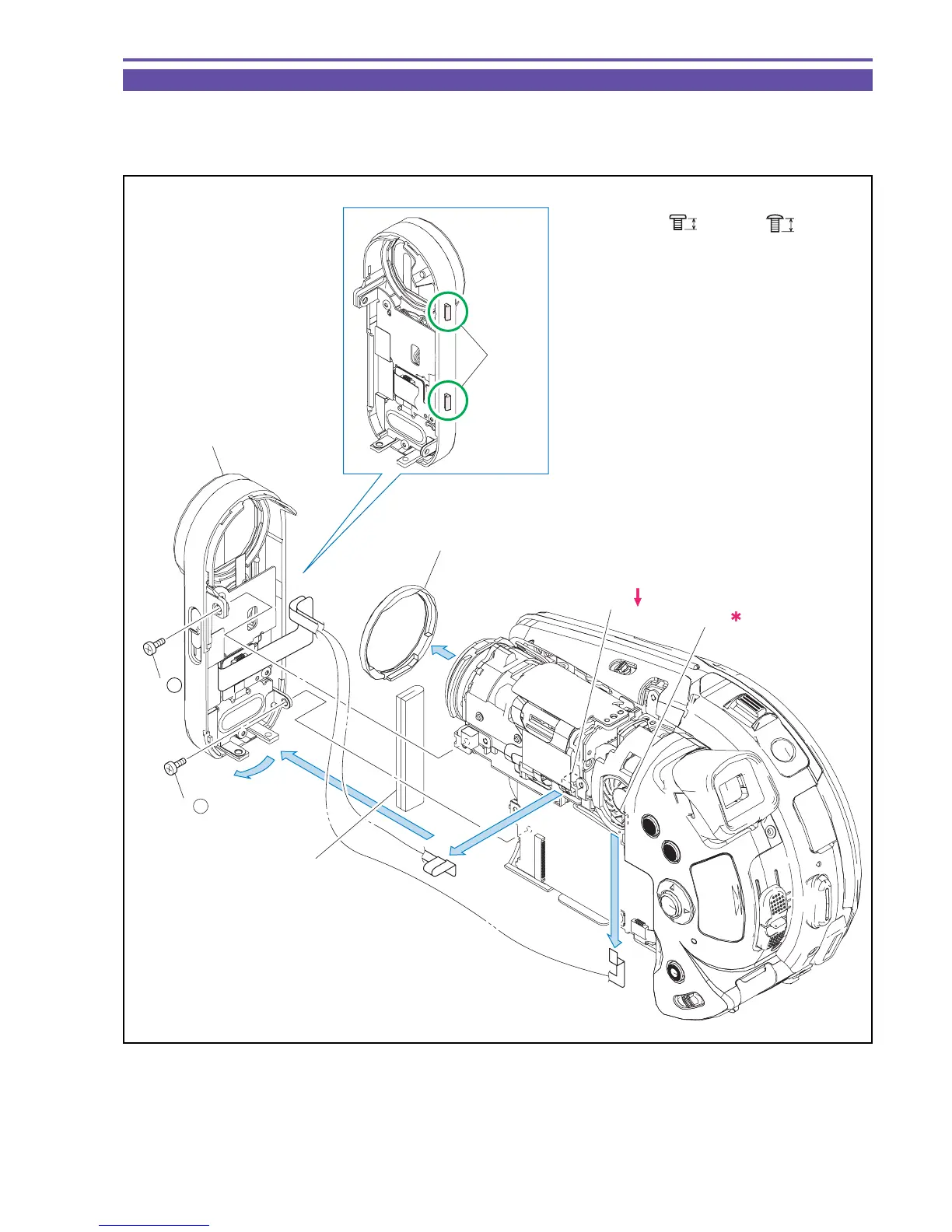

1-4 Separation of Front Cover Unit
(1) Remove two screws (a × 1, u × 1), and disconnect the CN106 and the CN701.
(2) Disengage two claws A, and detach the Front Cover Unit and the Front Sponge.
(3) Detach the Lens Ring.
Fig. 5
Metal
M1.7
a
2.5mm
u
3mm
Metal
M1.7
(3)
(2)
(2)
(1)
(1)
(1) - a
Front Cover Unit
Lens Ring
Front Sponge
CN106
CN701
Claws A
(1) - u
