DC10 E, DC20 E
TECHNICAL DESCRIPTION
14
4-3 Camera/Card Signal Processing (DC20 E)
4-3-1 2-Megapixel Camera System
This model handles the increased CCD picture element readout by splitting the CCD into right and left halves and having two circuit
systems for readout, as shown illustrated above.
The two systems of video signal are distinctly subjected to A/D conversion, are composed into a single image by MPX-IC, and are sent
to DIGIC DV for camera signal processing.
4-3-2 Camera Motion Picture Recording

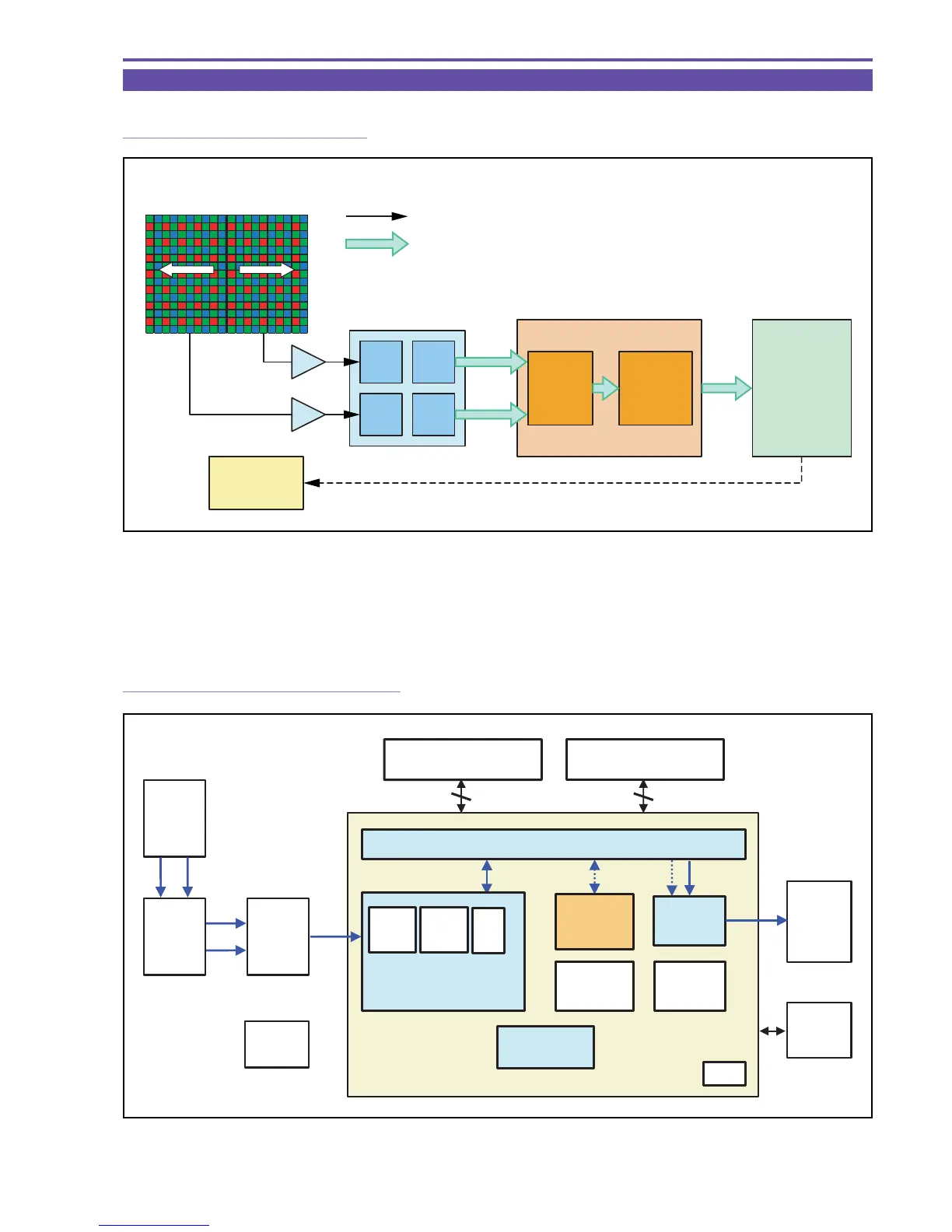

Fig. 10
IC1054
CCD
IC1000
CDS/AD
IC1001
TG
CDS
adjustment,
composition
: Analog Signal
: Digital Signal
Missing
pixel
compensation
AD
CDS AD
IC1002
MPX
14bit
36MHz
36MHz
2ch
12bit
72MHz
IC1103
DIGIC DV
Fig. 11
JPEG
JPEG
Audio
MPX
IC1002
CARD IF
USB
IC101
CCM
MI-COM
CDS/AD
IC1000
CCD
IC1054
36MHz
14bit
36MHz
2ch
72MHz
12bit
SDRAM IF
64 Mbit SDRAM
IC1102
AIF4
IC801
32 bit
64 Mbit SDRAM
IC1101
32 bit
Camera signal
processing
GRAB
proc resize
nr
Deformation,
Drawing
REND
Synthesis
COMP
BACK
END
IC2300
IC1103
DIGIC DV
To Next Page
