DC10 E, DC20 E
DISASSEMBLING
10

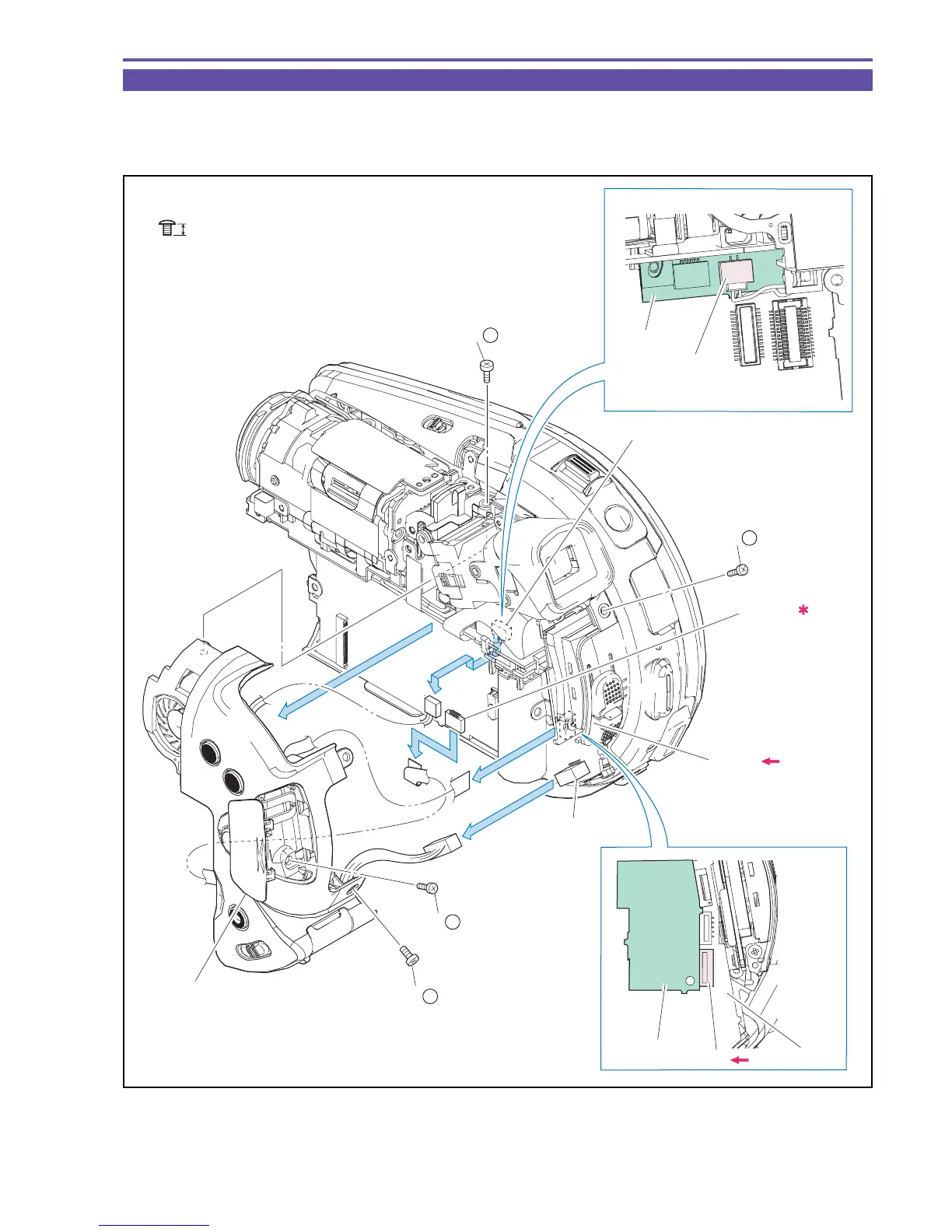

1-5 Separation of Rear Cover Unit
(1) Open the SD Memory Cover, and remove four screws (v × 4).
(2) Remove the CN801 and the CN3501 to ensure that Rear Cover Unit is pulled up.
(3) Disconnect the CN108, the CN3200, and detach the Rear Cover Unit.
Fig. 7
v
3.5mm
Metal
M1.7
CN108
CN801
SUB PCB
SUB PCB
MAIN PCB
(2)
(2)
(3)
(3)
(3)
CN801
CN3501
CN108
CN3200
SD Memory Cover
(1) - v
(1) - v
(1) - v
(1) - v
