DC10 E, DC20 E
SERVICE MODE / ADJUSTMENT
25
5-4 IS Section Adjustment
Note)
(1) Perform the IS adjustment after machine is re-assembled to a product status.
(2) Prepare a tripod or stable work bench.
(3) Each of the adjustment data (5-4-1) becomes valid when 5-4-2 data writing is made. After completion of each adjustment, be sure
to carry out 5-4-2 before turning power OFF.
5-4-1 Gyro Offset Adjustment
SPEC. Automatic adjustment
Procedure)
(1) Wait at least 10 seconds while being careful not to apply vibration to the camera.
(2) Referring to the table shown below, perform the automatic adjustment.
Note)
It will take approx. 25 seconds at maximum to complete adjustment (OK) after storing (pressing the pause button).

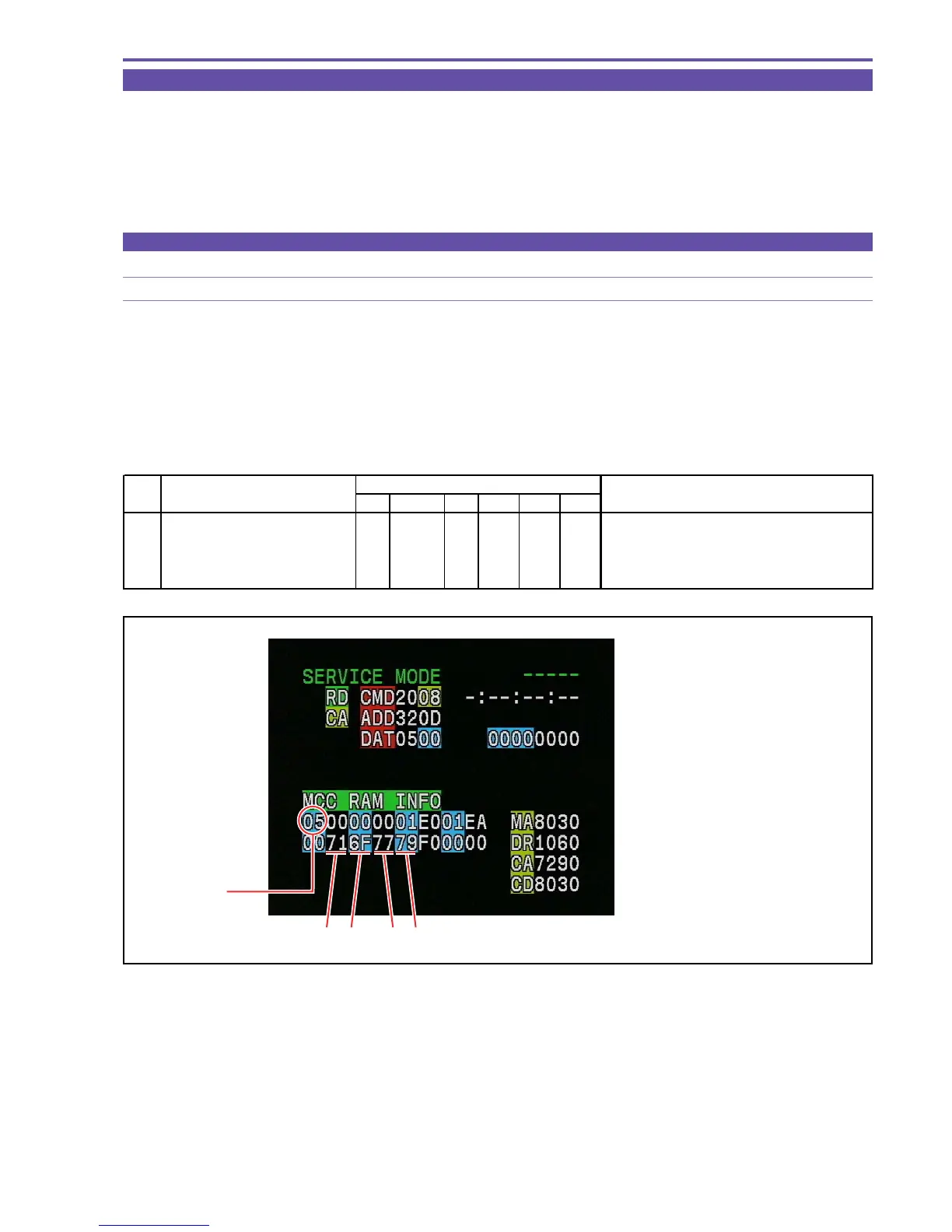

ST
B7 : Yaw Gyro gain
B6 : Pitch Gyro gain
77 : Yaw Gyro offset
79 : Pitch Gyro offset
7977B6B7
Fig. 18
STEP PROCEDURE Microcomputer operation
GYRO OFFSET CS Function MD ADDR DT ST
1 1) Make the setting shown at right. 2 08 ST 320D 00
2) Perform storing.
āā
RD
ā
05 Adjustment is completed.
(press the PAUSE button.) Completion with ST:05, NG with ST:09
After adjustment, data is indicated at IS3 and IS4.
MONITOR
