2. Installation and Connections
Connecting an External Monitor
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
ANALOG IN 1
AUDIO IN
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN

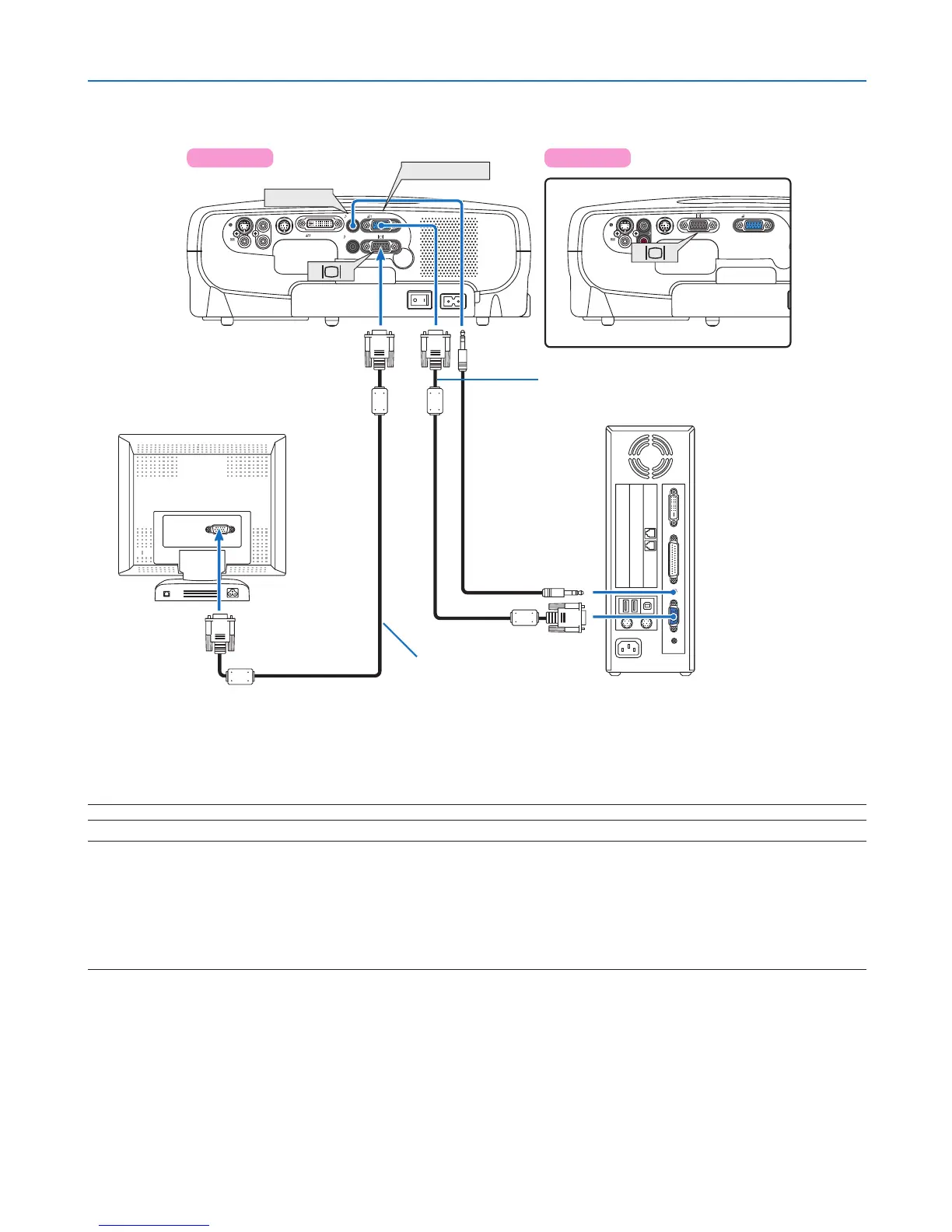

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB ana-
log image you're projecting.
NOTE: Daisy chain connection is not possible.
NOTE:
• The signal from the DIGITAL IN/ANALOG IN-2 connector cannot be output from the Monitor Output connector on LV-7365/
LV-7265.
• When the Computer 2 (Digital) signal is selected, no signals will be output from the Monitor Output connector on LV-7365/
LV-7265.
• The LV-7260 and LV-X7 do not have the AUDIO OUT connector.
• Use an audio cable without a built-in resistor. Using an audio cable with a built-in resistor turns down the sound.


LV-7260/LV-X7 LV-7365/LV-7265

Canon LV 7365 Specifications

General

Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	300 \
Projector native resolution	XGA (1024x768)
Focus	Manual
Digital zoom	4 x
Focal length range	17.7 - 28.3 mm
Aspect ratio	4:3
Dimensions (WxDxH)	310 x 265 x 109 mm
Power requirements	100V - 240V AC, 50/60Hz
Lamp type	NSH
Lamp power	210 W
Light source type	Lamp
Dot clock scanning frequency	108 MHz
RMS rated power	5 W
Headphone outputs	1
Power consumption (standby)	9 W
Power consumption (typical)	295 W

Weight and Dimensions

Weight	3300 g
