Canon LV 7365 User Manual

67

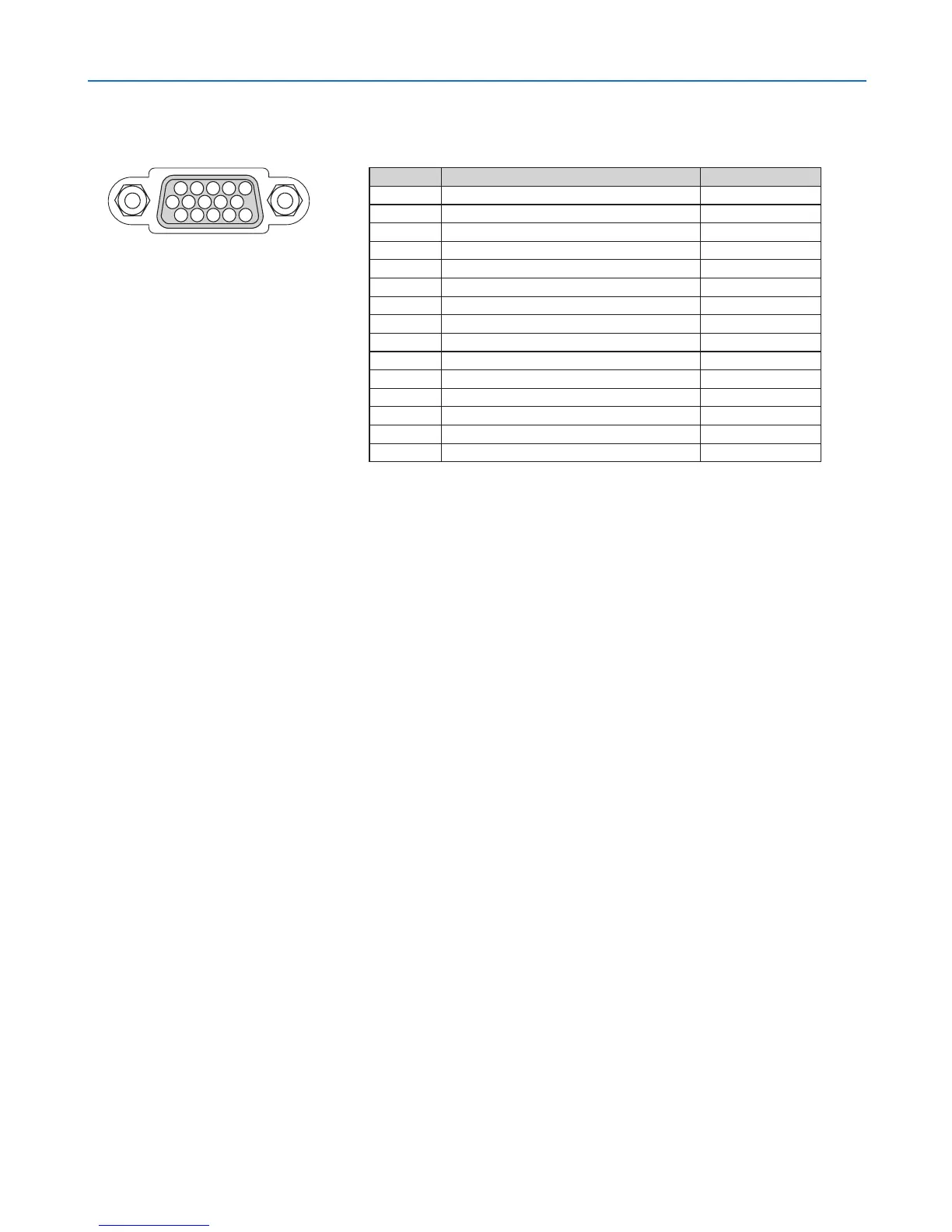

Mini D-Sub 15 Pin Connector
❹
Pin Assignments of D-Sub ANALOG Input Connector
Signal Level
Video signal : 0.7Vp-p (Analog)
Sync signal : TTL level
1
11 1512 1413
6
5
4
32
107 9
8
7. Appendix
* Only ANALOG-1 input connector supported on LV-7365/LV-7265.
Pin No. RGB Signal (Analog) YCbCr Signal
1 Red Cr
2 Green or Sync on Green Y
3 Blue Cb
4 Ground
5 Ground
6 Red Ground Cr Ground
7 Green Ground Y Ground
8 Blue Ground Cb Ground
9 No Connection
10 Sync Signal Ground
11 No Connection
12 Bi-directional DATA (SDA)*
13 Horizontal Sync or Composite Sync
14 Vertical Sync
15 Data Clock*

Canon LV 7365 Specifications

General

Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	300 \
Projector native resolution	XGA (1024x768)
Focus	Manual
Digital zoom	4 x
Focal length range	17.7 - 28.3 mm
Aspect ratio	4:3
Dimensions (WxDxH)	310 x 265 x 109 mm
Power requirements	100V - 240V AC, 50/60Hz
Lamp type	NSH
Lamp power	210 W
Light source type	Lamp
Dot clock scanning frequency	108 MHz
RMS rated power	5 W
Headphone outputs	1
Power consumption (standby)	9 W
Power consumption (typical)	295 W

Weight and Dimensions

Weight	3300 g
