2. Installation and Connections
AUDIO IN
L R
AUDIO OUT
L R
VIDEO OUT
S-VIDEO VIDEO
AUDIO IN
AUDIO OUT
S
-
VIDEO
IN
VIDEO
IN
L
AUDIO IN
R
SERVICE PORT
ANALOG IN-1
DIGITAL IN /
ANALOG IN-2
VIDEO IN
AUDIO IN
S-VIDEO IN

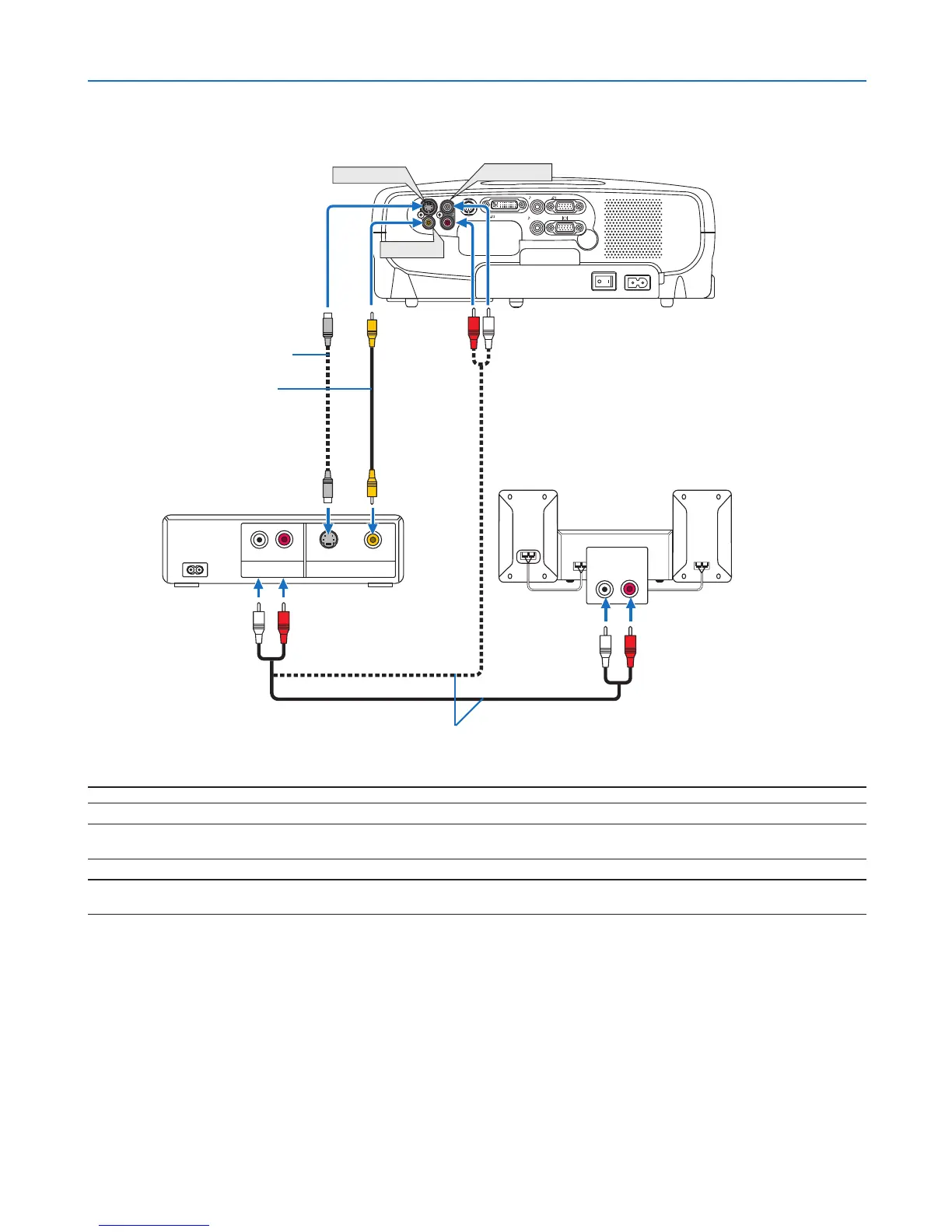

Connecting Your VCR or Laser Disc Player





NOTE: The AUDIO IN L/MONO and R jacks (RCA) are shared between the Video and S-Video inputs.
NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output require-
ments.
NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via
a scan converter.

Canon LV 7365 Specifications

General

Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	300 \
Projector native resolution	XGA (1024x768)
Focus	Manual
Digital zoom	4 x
Focal length range	17.7 - 28.3 mm
Aspect ratio	4:3
Dimensions (WxDxH)	310 x 265 x 109 mm
Power requirements	100V - 240V AC, 50/60Hz
Lamp type	NSH
Lamp power	210 W
Light source type	Lamp
Dot clock scanning frequency	108 MHz
RMS rated power	5 W
Headphone outputs	1
Power consumption (standby)	9 W
Power consumption (typical)	295 W

Weight and Dimensions

Weight	3300 g
