Editing
Connecting the camcorder to your VCR or 8 mm video camera allows
conversion of recorded analog video and audio signals to digital signals in an
instant. The digital signals can be output to the other equipment with a DV
terminal. The camcorder’s DV terminal works exclusively as an output
terminal.
• There may be cases where analog-digital conversion cannot be done
properly, depending on the signals output from the connected equipment.
For example: Signals that include the copyright protective signal, or
anomalous signals such as ones that include ghost signals, etc.
• You cannot use your headphones during digital conversion. Even if the
AV/headphone terminal is set to “PHONES” through the menu, it will
automatically be set to “AV”, and “PHONES” will disappear from the
display.
• You are recommended to use power from a household power socket with
the power adapter.
• Do not operate with a cassette inserted to the camcorder.
• Turn off the power of all equipment before performing connections.
• Refer also to the instruction manuals of the other equipment connected.

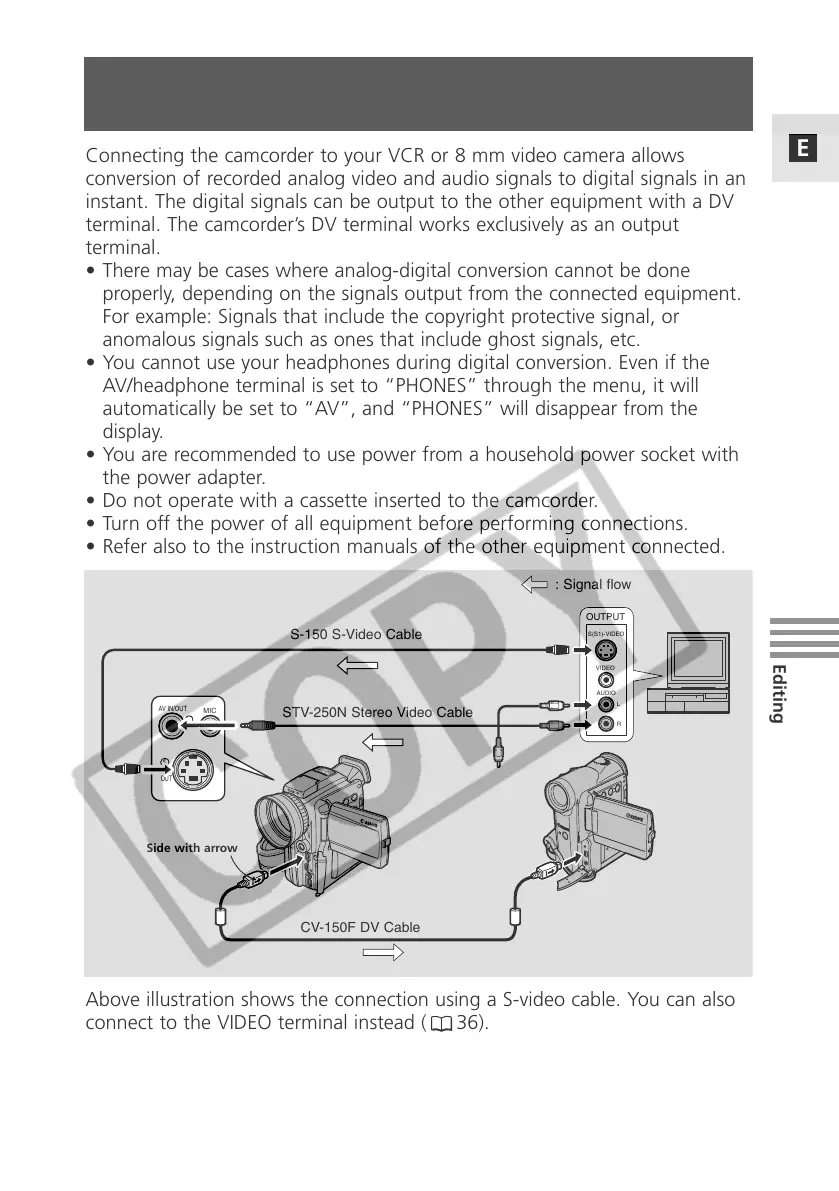

Digitally Outputting Analog Video and Audio
Signals (Analog-Digital Converter)
IN/
OUT
AV IN/OUT
MIC
OUTPUT
VIDEO
S(S1)-VIDEO
AUDIO
L
R
CV-150F DV Cable
S-150 S-Video Cable
STV-250N Stereo Video Cable
: Signal flow
Above illustration shows the connection using a S-video cable. You can also
connect to the VIDEO terminal instead ( 36).
