Canon VB-M40 User Manual

7-4

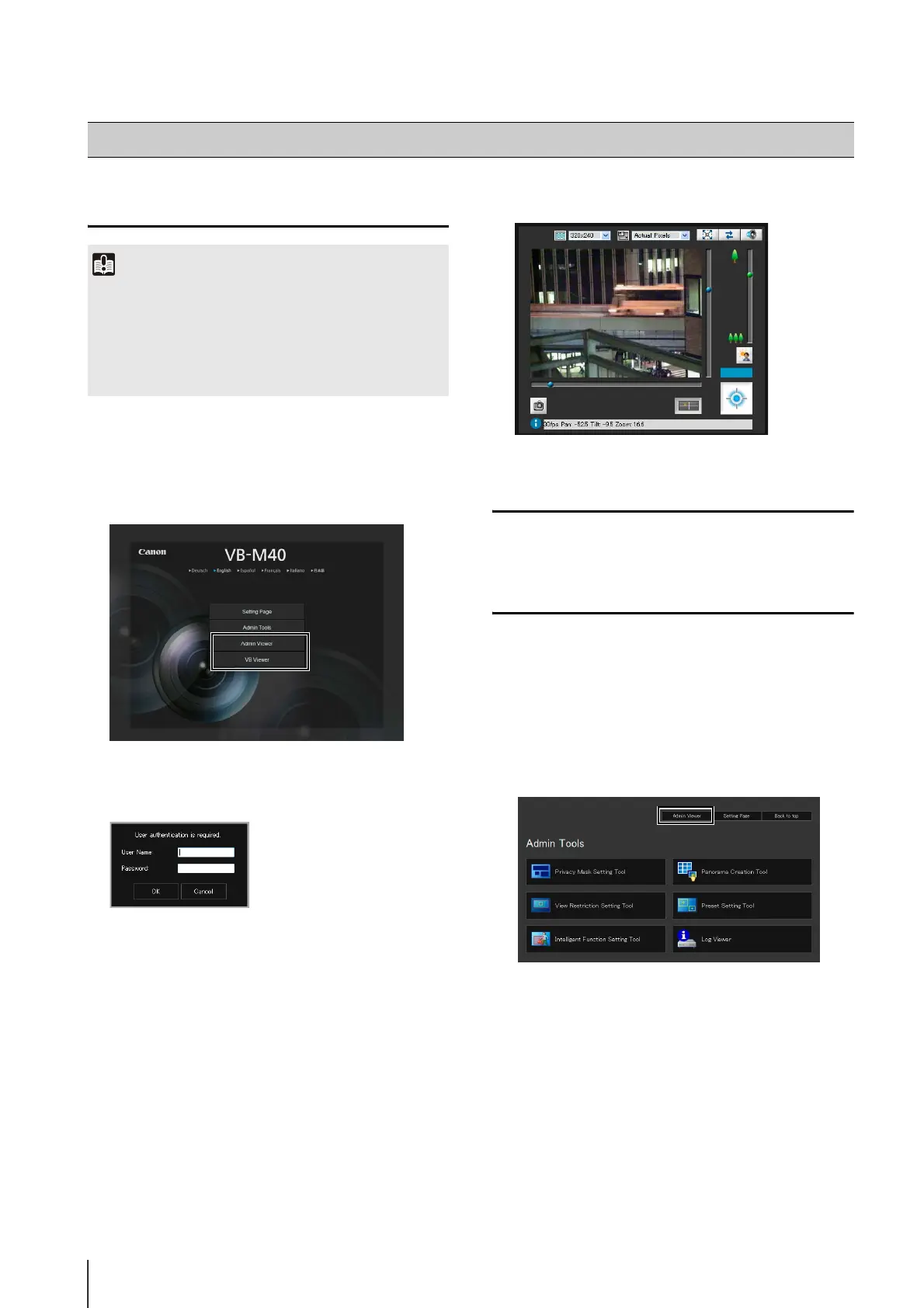

Launching the Viewer
Refer to “User Authentication” in “Chapter 4 Top Page
of the Camera” (P. 4-2) for information on the user
name and password.
The viewer is launched.
Shutting Down the Viewer
Close the web browser in the viewer to shut down.
Connecting from Admin Tools
Only the administrator can connect to this viewer.
(Refer to “Launching the Admin Tools” (P. 6-4) for
information on launching the Admin Tools.)
Launching the Viewer
Important
• The Canon Inc. Certificate must be registered on a PC that is
using the Admin Viewer. (P. 4-3)
• This Operation Guide explains relevant operations based on
the IP address “192.168.100.1” (factory default setting). You
must enter the actual IP address set for the camera when
following instructions.
1
Access “http://192.168.100.1/” via the web browser.
2
Click [Admin Viewer] or [VB Viewer] according to the
user.
3
For [Admin Viewer], enter the user name and
password.
1
Launch Admin Tools.
2
Click [Admin Viewer].

Canon VB-M40 Specifications

General

Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	-
Video formats supported	H.264
Supported graphics resolutions	160 x 120, 320 x 240, 1280 x 960, 640 x 480 (VGA)
Pan range	-170 - 170 °
White balance	Auto, Manual
Tilt angle range	-90 - 10 °
Minimum illumination	0.01 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	4 x
Optical zoom	20 x
Focal length range	4.7 - 94 mm
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Form factor	Covert
Product color	Black
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Headphone outputs	1
Cabling technology	10/100Base-T(X)
AC input voltage	100-240 V
Power source type	PoE
AC input frequency	50 Hz
Storage temperature (T-T)	5 - 85 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Width	132 mm
Height	155 mm
Weight	1150 g
