Canon VB-M40 User Manual

Preset Setting Tool
6-17
6
Admin Tools
Display Screens of Preset Setting Tool
Preset Setting Tool has two display screens, the [Preset] tab and the [Preset Tour] tab.
With the [Preset] tab, up to 20 presets and the home position are set while referring to the panorama screen.
With the [Preset Tour] tab, Preset Tour is set whereby the camera tours and monitors multiple presets.
The following explains the [Preset] tab display screen.
For the [Preset Tour] tab, see “Preset Tour” (P. 6-20).

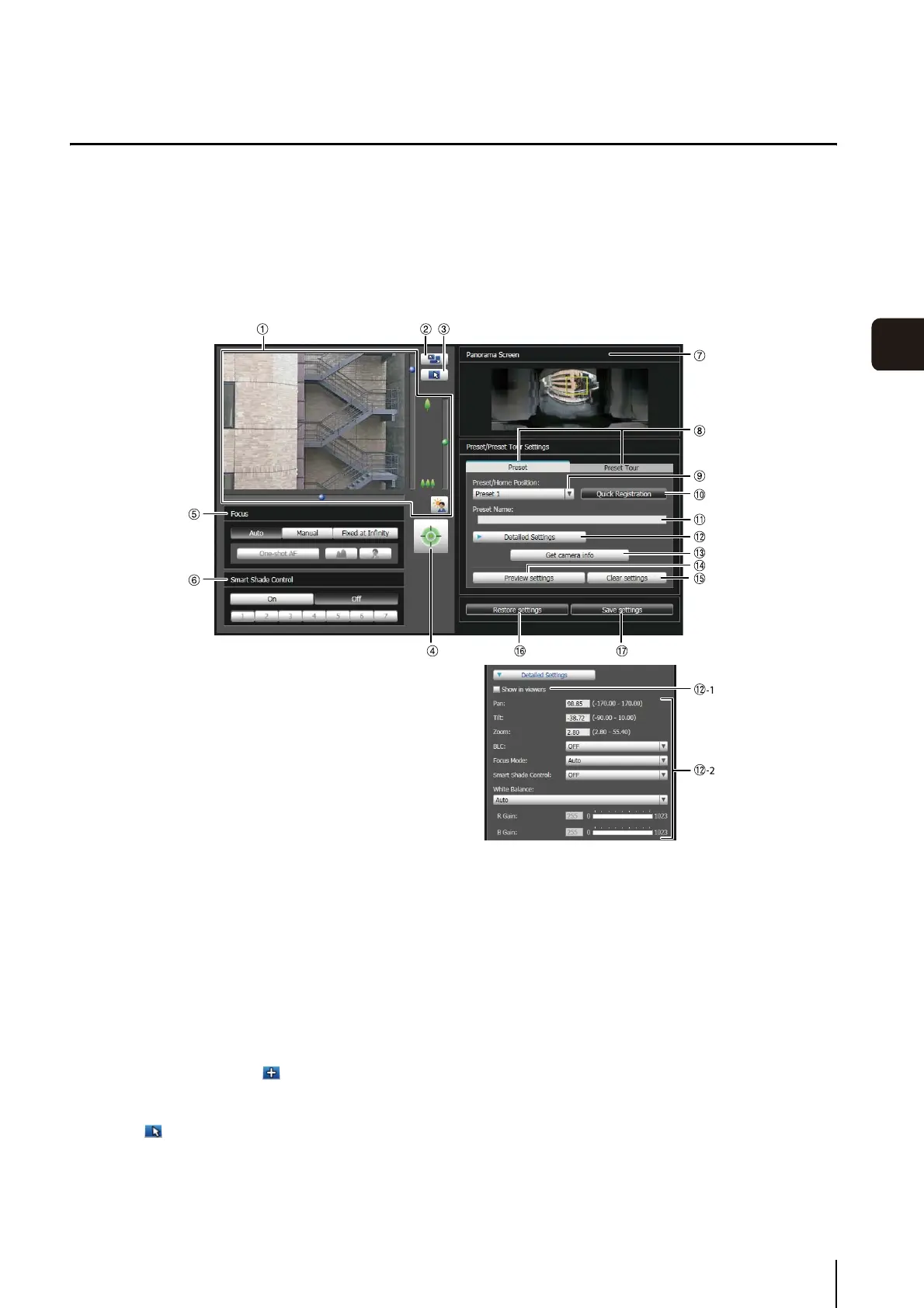

 [Preset] Tab Display Screen
1 Image Display Area
The image currently captured by the camera is shown.
Pan, tilt, and zoom operations are the same as in the
VB-M40 Viewer. For details, see “How to Operate the
Viewer” (P. 7-5).
2 [Switch Screen Size] button
Each time this button is clicked, the screen size of the
image display area switches between “320 x 240” and
“640 x 480”.
3 [Switch Mouse Operation] button
Click the button to switch to . In this mode, move the
mouse pointer to the image display area and left-click
to operate the pan and tilt. Click the button again to
return to .
4 [Obtain/release Camera Control] button
This button is used to obtain/release the camera
control privileges. For details, see “Obtaining Camera
Control Privileges” (P. 7-7).
5 [Focus]
Focus can be operated if control privileges have been
obtained. Focus operations are the same as in the
Admin Viewer. For details, see “Setting the Focus”
(P. 7-14).
6 [Smart Shade Control]
Smart shade control can be operated if control
privileges have been obtained. Smart shade control
operations are the same as in the Admin Viewer. For
details, see “Setting the Smart Shade Control”
(P. 7-14).
7 [Panorama Screen]
The panorama image registered in the camera is
shown. A preset preview frame (yellow) reflecting the
preset settings is shown, where you can drag to resize
or move the frame and reflect the new frame in the
preset settings. Also, if view restrictions are set, those
areas are shown in a blue frame.

Canon VB-M40 Specifications

General

Total megapixels	1.3 MP
Maximum resolution	1280 x 960 pixels
Supported video modes	-
Video formats supported	H.264
Supported graphics resolutions	160 x 120, 320 x 240, 1280 x 960, 640 x 480 (VGA)
Pan range	-170 - 170 °
White balance	Auto, Manual
Tilt angle range	-90 - 10 °
Minimum illumination	0.01 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	4 x
Optical zoom	20 x
Focal length range	4.7 - 94 mm
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC
Form factor	Covert
Product color	Black
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired
Interface	RJ-45
Headphone outputs	1
Cabling technology	10/100Base-T(X)
AC input voltage	100-240 V
Power source type	PoE
AC input frequency	50 Hz
Storage temperature (T-T)	5 - 85 °C
Operating temperature (T-T)	-10 - 50 °C

Weight and Dimensions

Width	132 mm
Height	155 mm
Weight	1150 g
