Setting the Camera Angle
3-7
3
Camera Angle Setting Tool
Aq
[Control Assist Display] selection box
Select whether to [Enable] or [Disable] operation assist
in the image display area.
Aa
[
Control
Button
Display
] selection box
Select whether to [Enable] or [Disable] the [Pan] button
and [Tilt] button in the image display area.
As [Image Flip] selection box
Select the orientation of the camera image.
If [Enable] is selected, the image will be rotated 180
degrees.
Ad [
Control
Assist Correction]
When the orientation of the camera is moved by hand,
the operation assist display will not correspond with the
actual camera angle. In this case, click [Control Assist
Correction] to confirm the actual camera angle and
automatically correct the display position of operation
assist.
Operation assist correction takes about 1 minute to
complete.
Af [Focus]
You can control the focus.
Ag [Exposure Compensation]
You can control the exposure.
Setting the Camera Angle
You can operate pan, tilt, rotation and zoom
operations to set a desired camera angle.
You can operate zoom operation only.
Set Using the Operation Buttons and Sliders

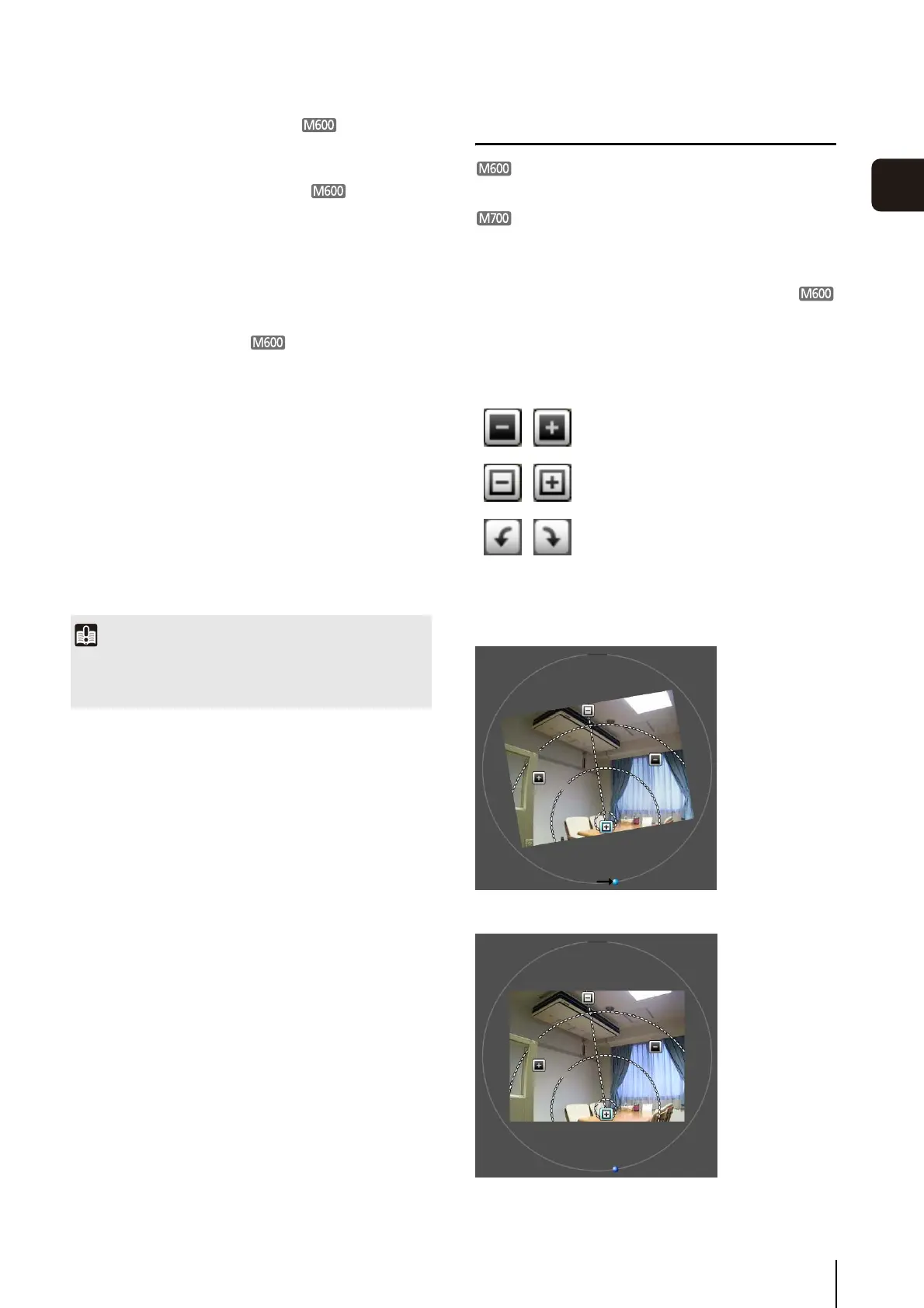

Click each of the [Pan], [Tilt], [Rotation] buttons to set the
camera angle. Camera angle changes in orientation if the
button is held down, and stops when the button is
released.
To set rotation using the [Rotation] slider, drag the slider
and release the mouse button when the subject in the
image is shown at a level angle.
T
Important
You must set Intelligent Function detection areas and privacy
masks again after changing settings in the Camera Angle
Setting Tool.
Pan (horizontal movement) operation
Tilt (vertical movement) operation
Rotation (angled movement) operation
