14
Remove plug from
collector box.
DO NOT DISCARD.
If alternate vent position
is required, loosen clamp
on inlet of vent elbow.
Remove the screw that secures
the trap to the collector box and
remove trap.

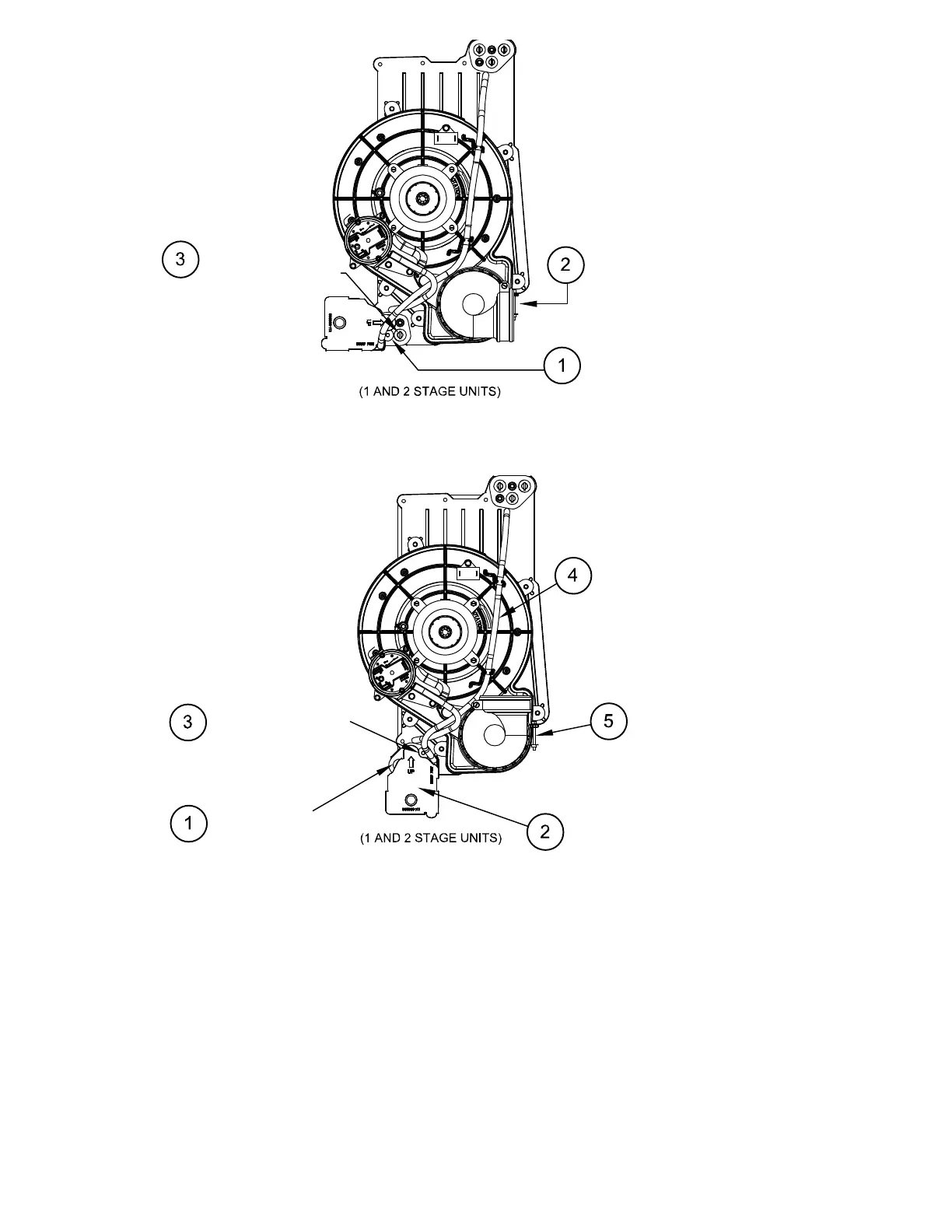

Unconverted Factory Configuration
As Viewed in the Horizontal Right Orientation
Attach condensate
trap with screw to
collector box.
Slide relief tube in standïoffs
to adjust length.
Vent elbow shown in alternate
orientation. Tighten clamp on
inlet to vent elbow 15 lb.ïin.
Align trap over middle and
rightïhand port on collector box.
NOTE: Remove knockout in
casing before reïinstalling the
condensate trap.
Install plug on
open port of
collector box
Horizontal Right Trap Configuration
A11573
Fig. 10 -- Horizontal Right Trap Configuration
(Appearance may vary)

Carrier 59TP6B Specifications

General

Stages	Two-stage
Blower Motor	Variable-speed
Energy Star Certified	Yes
Fuel Type	Natural gas
Heat Exchanger	Stainless Steel
Heating Capacity	40, 000 - 120, 000 BTUh
Warranty	10-year parts
