Carrier 59TP6B User Manual

27
UPFLOW DOWNFLOW HORIZONTAL
YES
NO
NO
YES
YES
YES
NO
120°
MIN
YES
120°
MIN
YES
120°
MIN
90°
90°
PERFORATED
DISCHARGE DUCT
FLANGE
A10493

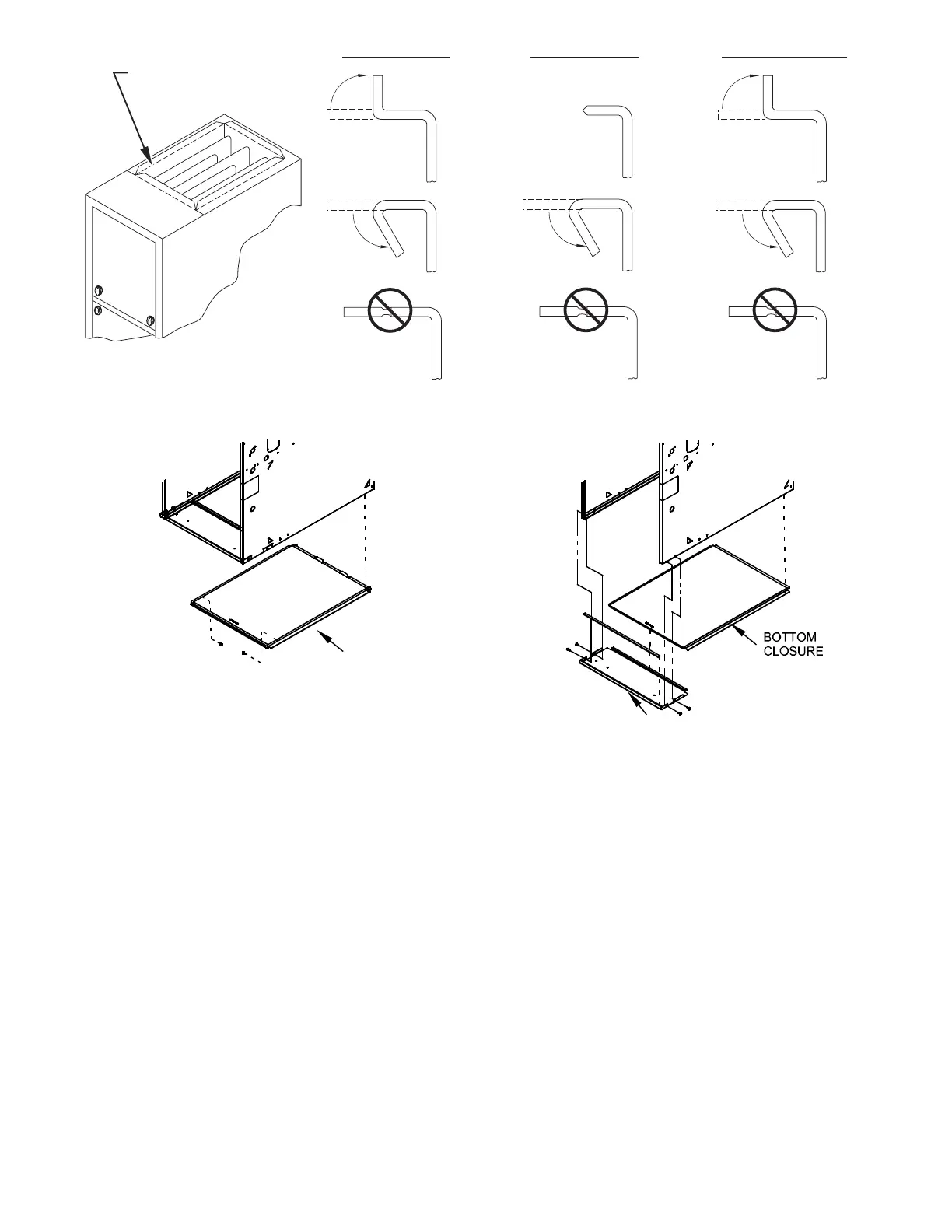

Fig. 22 -- Duct Flanges
1 Lay furnace on the back or side
2 Remove the two (2) screws that secure the bottom
closure panel to the furnace casing and remove the
panel
SCREWS (2)
BOTTOM
CLOSURE
Representative drawing only,
some models may vary in appearance.
A170123
Fig. 23 -- Removing Bottom Closure Panel (2 Screws)
BOTTOM
PLATE
SCREWS (4)
1 Lay furnace on the back or side
2 Remove the four (4) screws that secure the bottom
plate to the furnace casing
3 Remove the bottom closure from the casing
4 Re--install the bottom plate to the furnace casingand
re--install the four (4) screws
Representative drawing only,
some models may vary in appearance.
A170124
Fig. 24 -- Removing Bottom Closure Panel (4 Screws)

Carrier 59TP6B Specifications

General

Stages	Two-stage
Blower Motor	Variable-speed
Energy Star Certified	Yes
Fuel Type	Natural gas
Heat Exchanger	Stainless Steel
Heating Capacity	40, 000 - 120, 000 BTUh
Warranty	10-year parts
