Carrier 59TP6B User Manual

63
OPTIONAL TERMINATION
BRACKET FOR 2-PIPE
TERMINATIONS
12-IN. (305 MM)
ABOVE ANTICIPATED
SNOW LEVEL
12 IN. (305 MM) MIN. SEPARATION
BETWEEN BOTTOM OF
COMBUSTION AIR AND
BOTTOM OF VENT.
MAINTAIN 12 IN. (305 MM)
CLEARANCE ABOVE
HIGHEST ANTICIPATED
SNOW LEVEL OR GRADE,
WHICHEVER IS GREATER.
COMBUSTION-AIR
(ELBOW PARALLEL TO WALL)
OVERHANG
12 IN.
(305 MM) MIN. GROUND
LEVEL OR ANTICIPATED SNOW LEVEL
EXHAUST
CLEARANCE TO OVERHANG PER CODE
OPTIONAL
BRACKET
COUPLING
12 IN. (305 MM) MIN.
SEPARATION BETWEEN
BOTTOM OFCOMBUSTION
AIR AND BOTTOM OF VENT.
A13078

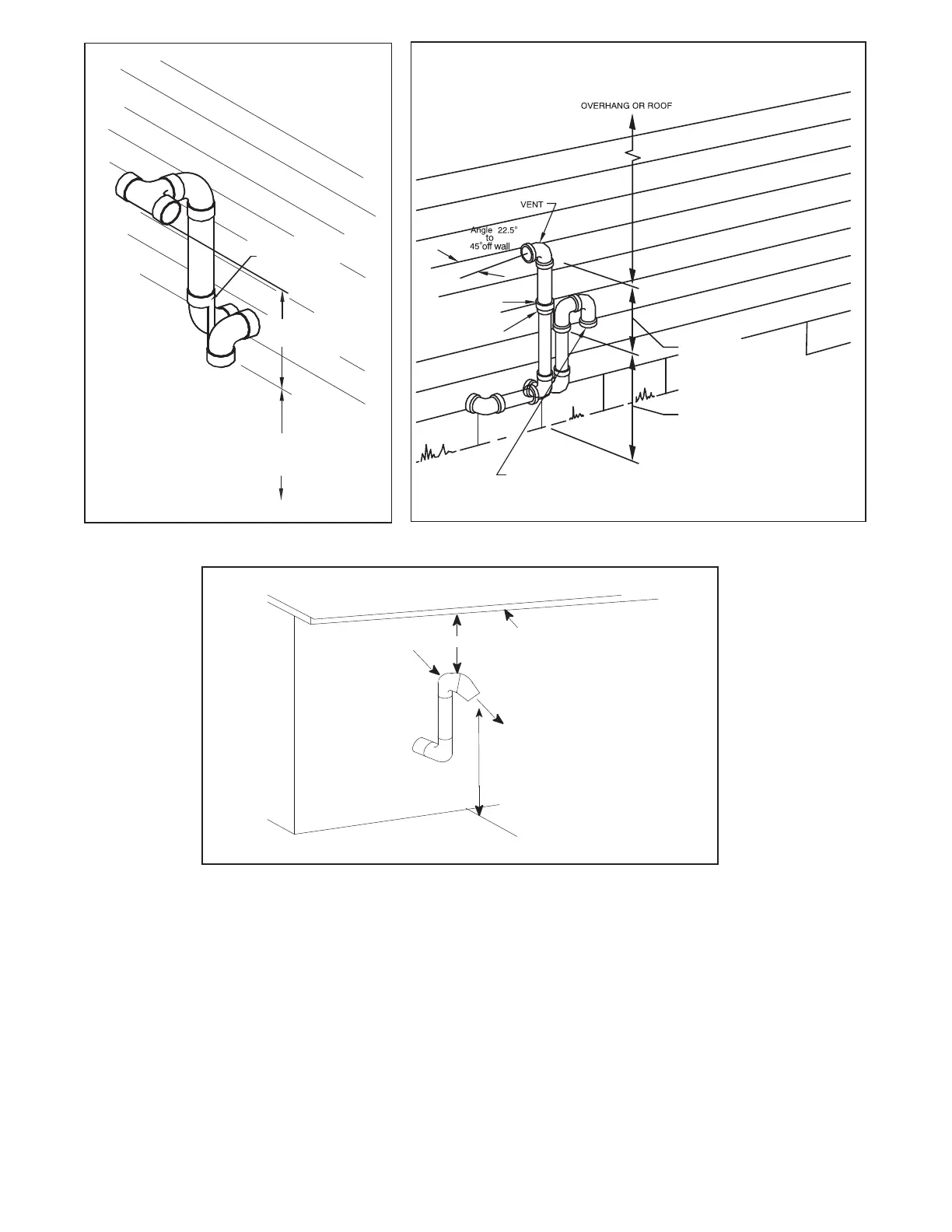

Fig. 56 -- Alberta and Saskatchewan Vent Termination

Carrier 59TP6B Specifications

General

Stages	Two-stage
Blower Motor	Variable-speed
Energy Star Certified	Yes
Fuel Type	Natural gas
Heat Exchanger	Stainless Steel
Heating Capacity	40, 000 - 120, 000 BTUh
Warranty	10-year parts
