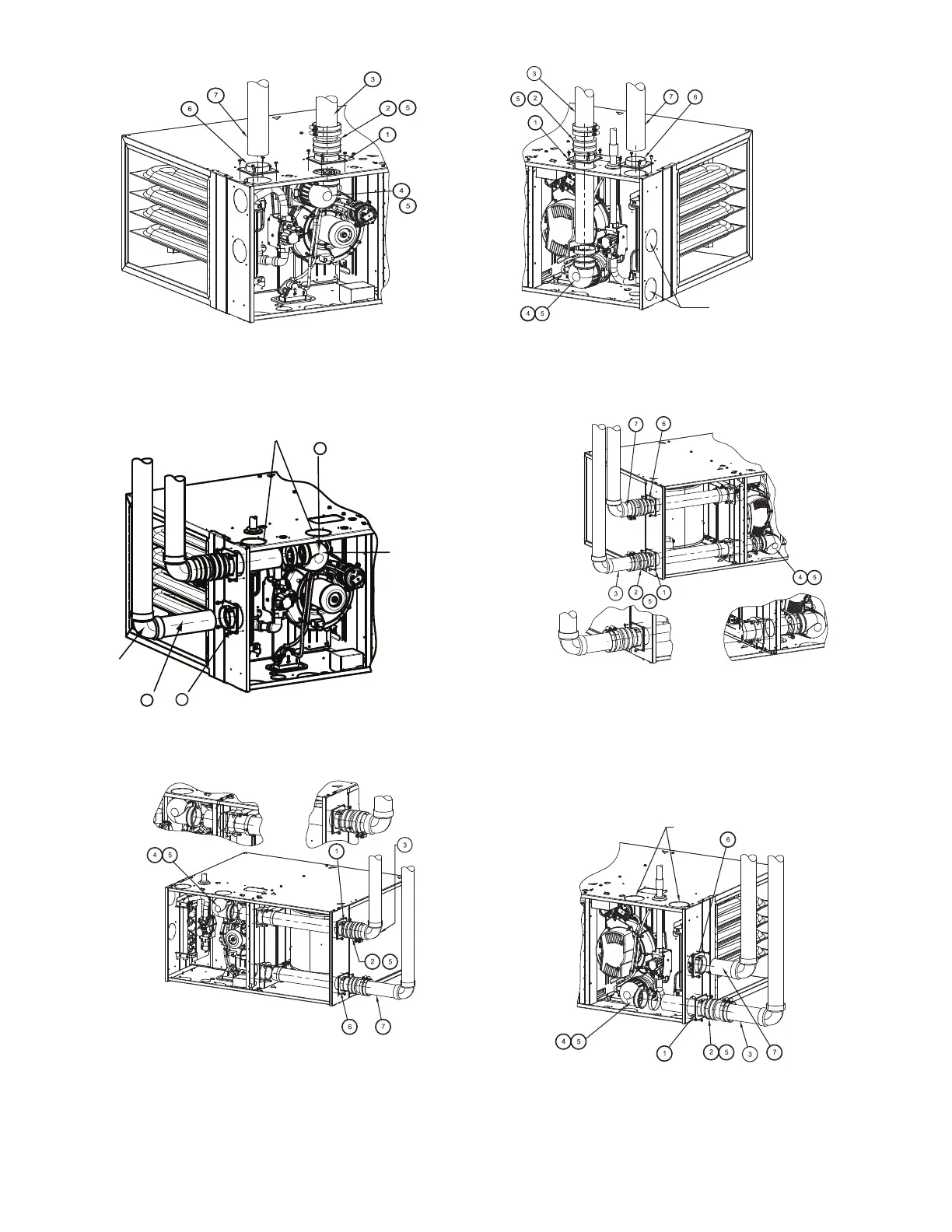

HORIZONTAL LEF T---VERTICAL VENT CONFIGURATION
A11327A
6
4
Alternate combustion air
connection.
Rotate vent
elbow to
required
position.
4
5
Vent Pipe
HORIZONAL LEFT---LEFT VENT CONFIGURATION
A11328A
Requires Accessory Vent Kit
See Product Data for
Current Kit Number
HORIZONTAL LEF T---RIGHT VENT CONFIGURATION
A11329A
Fig. 45 -- Horizontal Left (Appearance May Vary)
See “ Notes for Venting Options”
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT---VERTICAL VENT CONFIGURATION
A11337
Requires Internal Vent Kit
See Product Data for Current Kit Number
HORIZONTAL RIGHT---LEFT VENT CONFIGURATION
A11336
ALTERNATE
COMBUSTION
AIR CONNECTIONS
HORIZONTAL RIGHT---RIGHT VENT CONFIGURATION
A11335
Fig. 46 -- Horizontal Right (Appearance May Vary)
See “ Notes for Venting Options”

Carrier 59TP6B Specifications

General

Stages	Two-stage
Blower Motor	Variable-speed
Energy Star Certified	Yes
Fuel Type	Natural gas
Heat Exchanger	Stainless Steel
Heating Capacity	40, 000 - 120, 000 BTUh
Warranty	10-year parts
