Carrier 59TP6B User Manual

28
LEVEL 0-IN. (0 MM) TO
1/2-IN. (13 MM) MAX
UPFLOW OR
DOWNFLOW
HORIZONTAL
MIN 1/4-IN. (6 MM) TO
1/2-IN. (13 MM) MAX
A11237

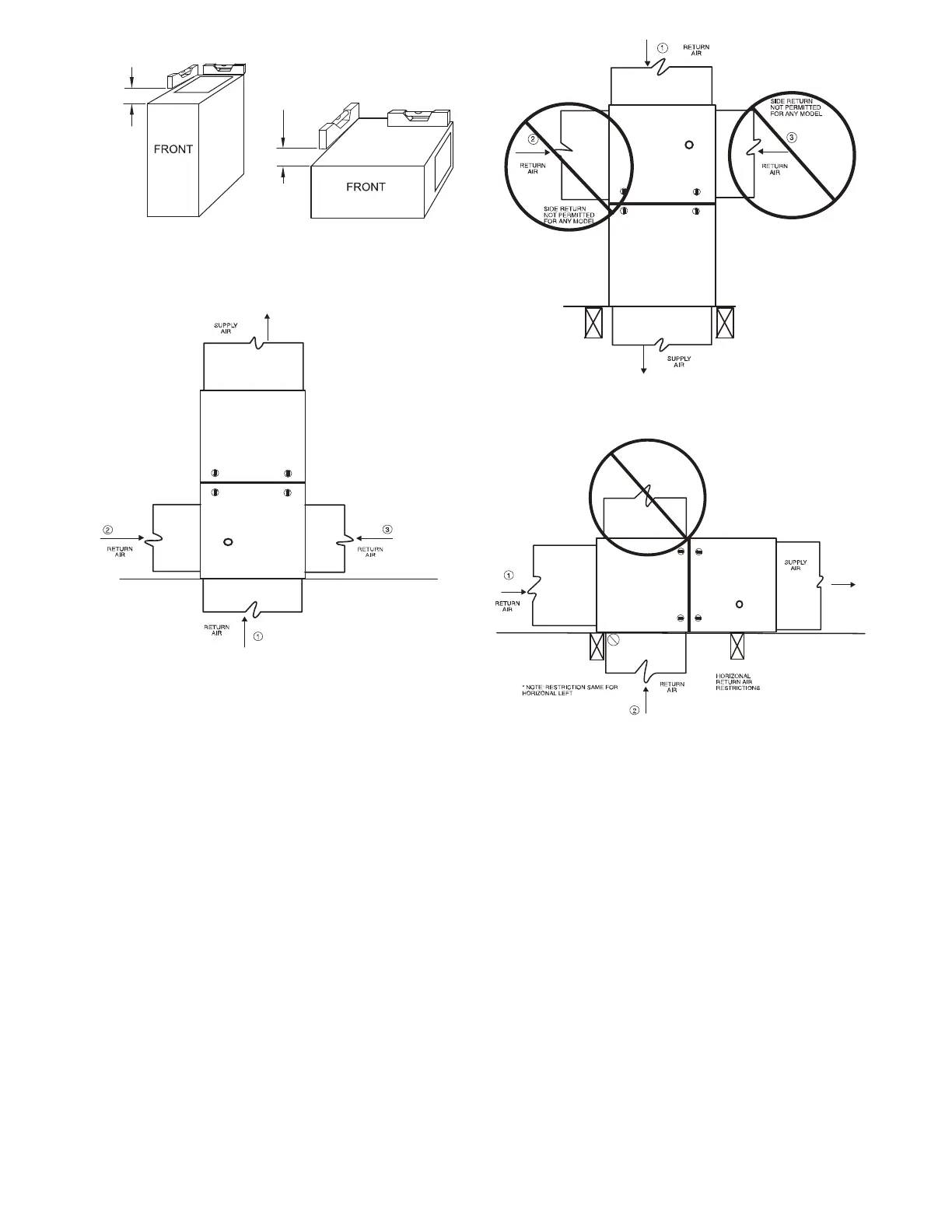

Fig. 25 -- Furnace Pitch Requirements
ANY COMBINATION OF 1, 2, OR 3 PERMITTED.
A11036
Fig. 26 -- Upflow Return Air Configurations and Restrictions
A11037
Fig. 27 -- Downflow Return Air Configurations
and Restrictions
HORIZONTAL TOP
RETURN NOT
PERMITTED FOR
ANY MODEL
A11038
Fig. 28 -- Horizontal Return Air Configurations
and Restrictions

Carrier 59TP6B Specifications

General

Stages	Two-stage
Blower Motor	Variable-speed
Energy Star Certified	Yes
Fuel Type	Natural gas
Heat Exchanger	Stainless Steel
Heating Capacity	40, 000 - 120, 000 BTUh
Warranty	10-year parts
