5-4

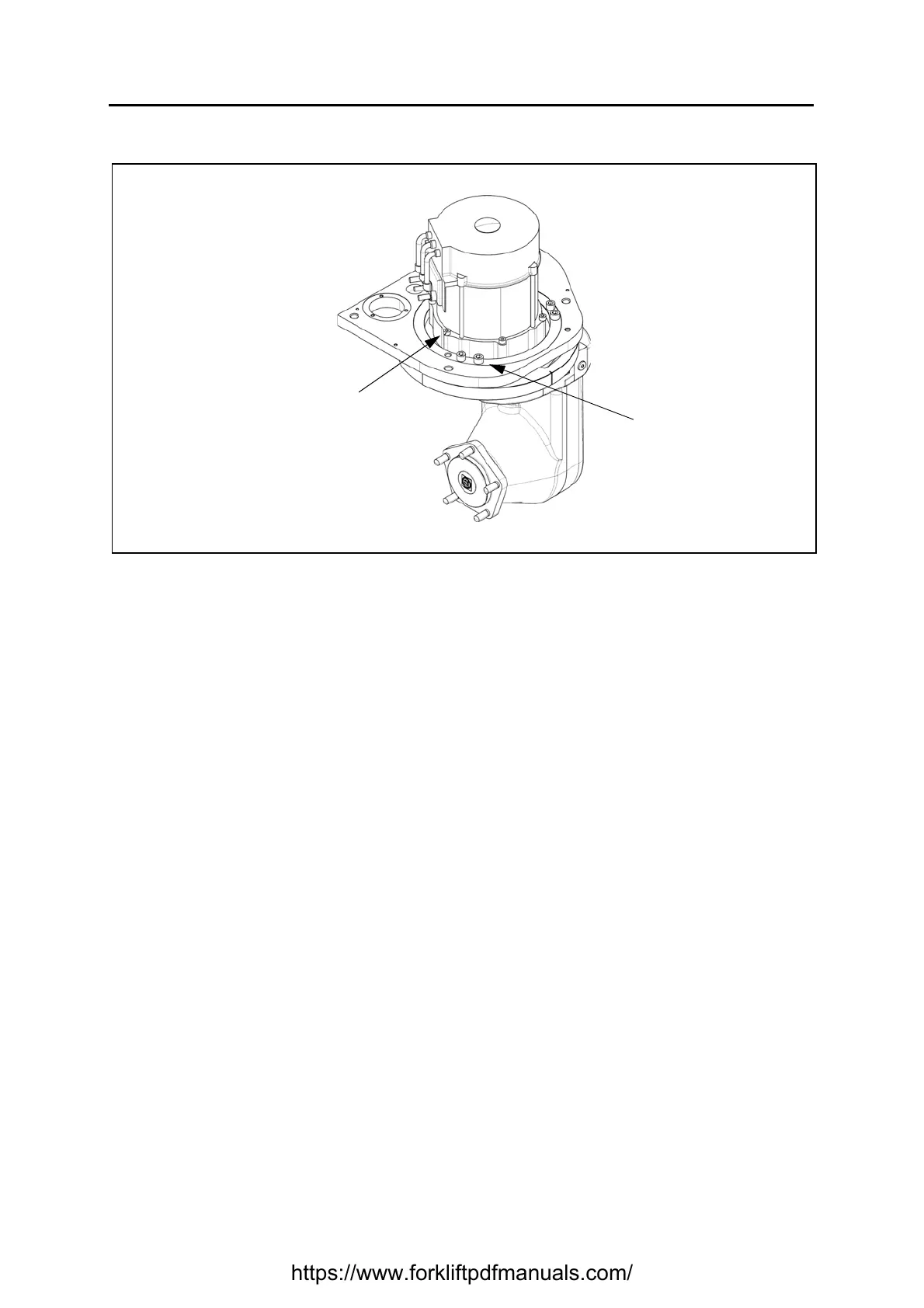

REMOVING THE GEARMOTOR UNIT
Removal procedure
1. Lift the battery cover
2. Disconnect the battery plug
3. Remove the seat by screwing off the 4 bolts under the battery cover
4. Remove the rear plastic cover
5. Remove the battery cover by disassenbling the gas spring and the 2 screw on the OHG [Point 1]
6. Disconnect the cables of the traction motor
7. Remove the 6 Allen screws of the traction motor [Point 2]
8. Connect a chain or belt to the motor [Point 3]
9. Remove the drive motor [Point 4]
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
79 Nm ± 15%
+ LOCTITE 243
23 Nm ± 15%
