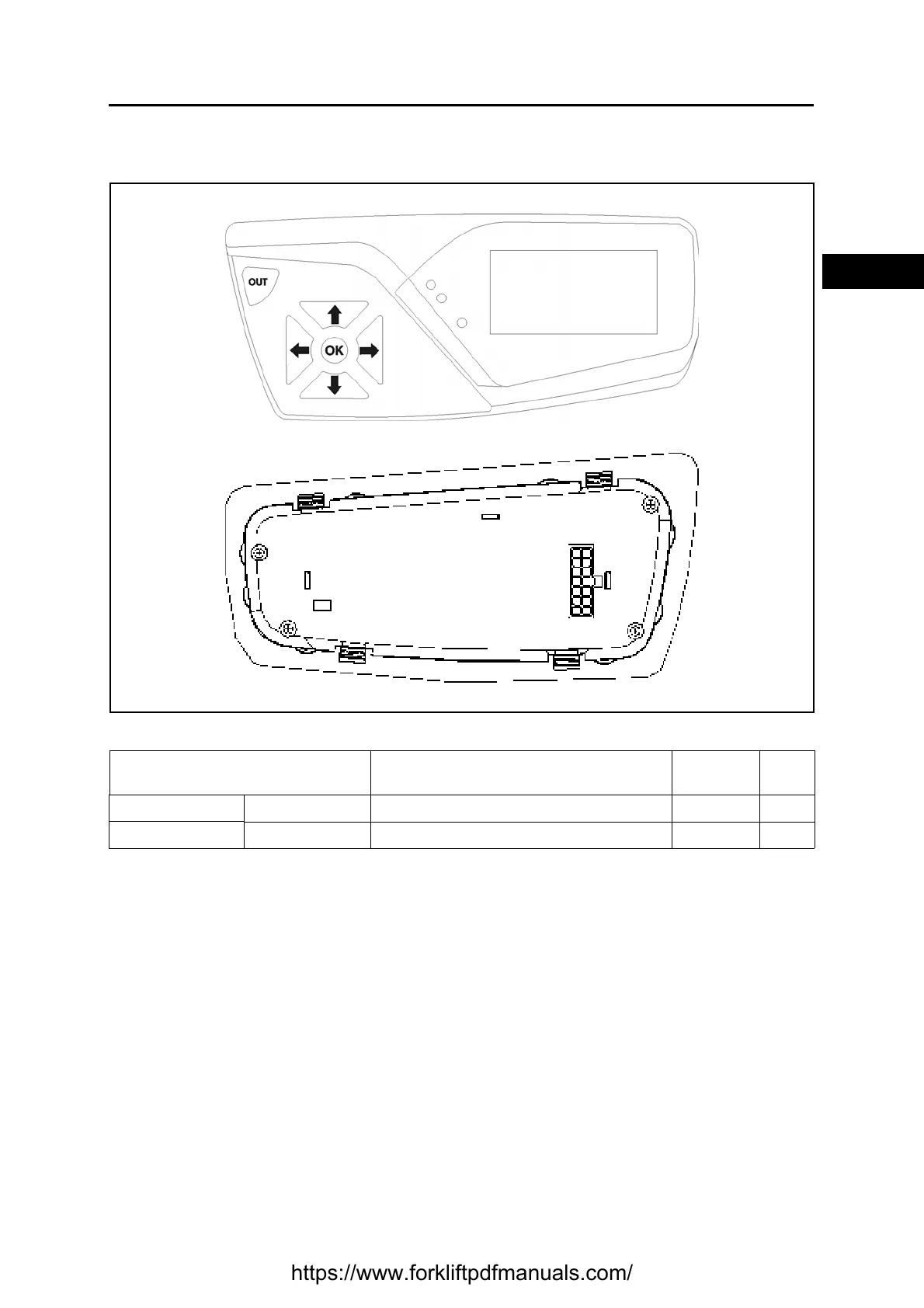

DASHBOARD
If the cause of trouble is in the display, measure the voltage at connector to whom voltage is applied.
J137 connector basic condition (Battery plug connected)
REMOVAL • INSTALLATION
Removal procedure
1. Park the vehicle on a level surface and apply the parking brake
2. Turn off the truck
3. Open the compartment and disconnect the battery
4. Remove the front board
5. Disconnect the wiring harness fromthe dashborad
6. Remove the display
Installation procedure
The reassembly procedure is the reverse of the disassembly procedure.
CN (pin-colour) Û CN (pin-colour)
From ⇔ To
Description Standard Notes
J137 (9-N) J1 (-) GND from battery GND
P137 (8-R3) J1 (+) +V from battery +V
